SDSU Foundations of Neuroimaging (PSY0596, PSY0569, PSY0769)

FALL 2018 (go here for current/latest version)

Course Flyer:
FlyerPsy596.pdf

Professor:
Marty Sereno — email: msereno - AT - sdsu
time: Mon/Wed/Fri 9:00-9:50 PM (grad session: Fri 8:00-8:50)
location: SSW 2667 (Learning Glass Studio, Student Services West)

Resources:
Learning Glass lecture recordings
Sereno Lecture Notes (89-page PDF [14MB] — single-page links below, last update: 2 Sep 2018)
Huettel, S., A.W. Song, G. McCarthy (2014) Functional Magnetic Resonance Imaging, 3rd ed.
Additional background reading

Assignments:
Homework #1 (due 10/15/2018, paper printout, incl. code and graphs)
Homework #2 (due 11/26/2018, paper printout, incl. code and graphs, brain image is here)
Final Paper: 10 page literature review on narrow methodological topic (start search in
    Magnetic Resonance in Medicine, Neuroimage, Human Brain Mapping)

Learning Objectives:
Students will be able to do the following:
   (1) explain precession/excitation/recording/contrast of magnetic resonance signals and echoes using the Bloch equation
   (2) compute Fourier transform, use to explain RF stim, gradients, signals generate k-space data, how recon. works
   (3) diagram main classes anatomical/functional pulse sequences
   (4) describe diffusion, perfusion, and spectroscopic imaging
   (5) describe origin/localization of EEG/MEG signals, cortical surface-based methods, and how to combine w/fMRI
   N.B.: consult with me if a disability hinders your performance so we can use University resources to maximize learning

Description and Prerequisites:
This course covers the physical and mathematical foundations of structural, functional, diffusion, and perfusion MRI, fMRI time series analysis, cortical-surface based reconstruction and data analysis, and the neural basis, recording, and localization of EEG and MEG signals. Although this course does not assume a background in linear algebra, vector calculus, differential equations, electromagnetism, the Fourier transform, and convolution, students will be expected to develop a solid grasp of a number of key equations underlying the different neuroimaging methods and solve simple Matlab problems. We will go slower than a typical engineering class and there will be plenty of time for questions. Here are two neuroimaging courses at UCSD for reference. Tom Liu's Bioengineering 280A — Principles of Biomedical Imaging (Fall 2015), provides a stronger mathematical foundation in the fundamentals of the Fourier transform and linear systems theory and covers ultrasound and CT in addition to MRI. David Dubowitz and Rick Buxton teach a two-quarter SOMI 276 — School of Medicine fMRI Course (2016/2017) in the Radiology Department.

Lecture Topics — Fall 2018 (pdf)
Week of Aug 27 (Mon/Wed/Fri) — Introduction
  • Introduction to Neuroimaging — MRI, fMRI, EEG, MEG

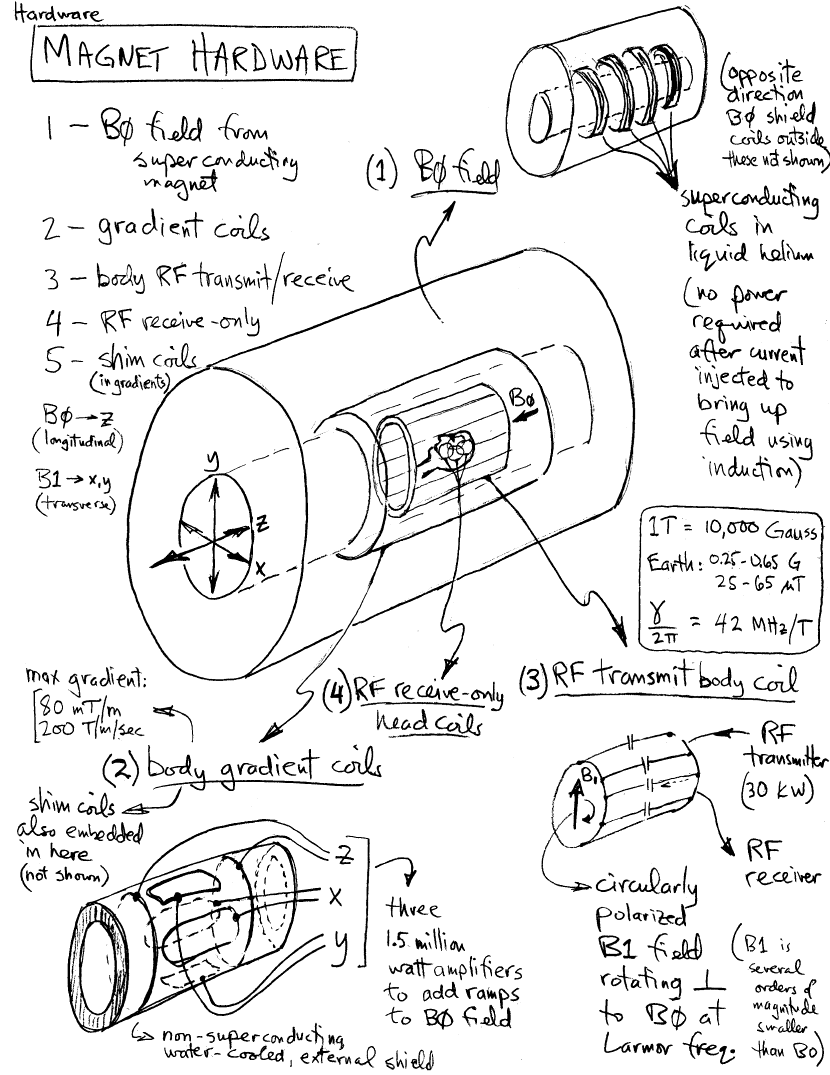

  • MRI hardware

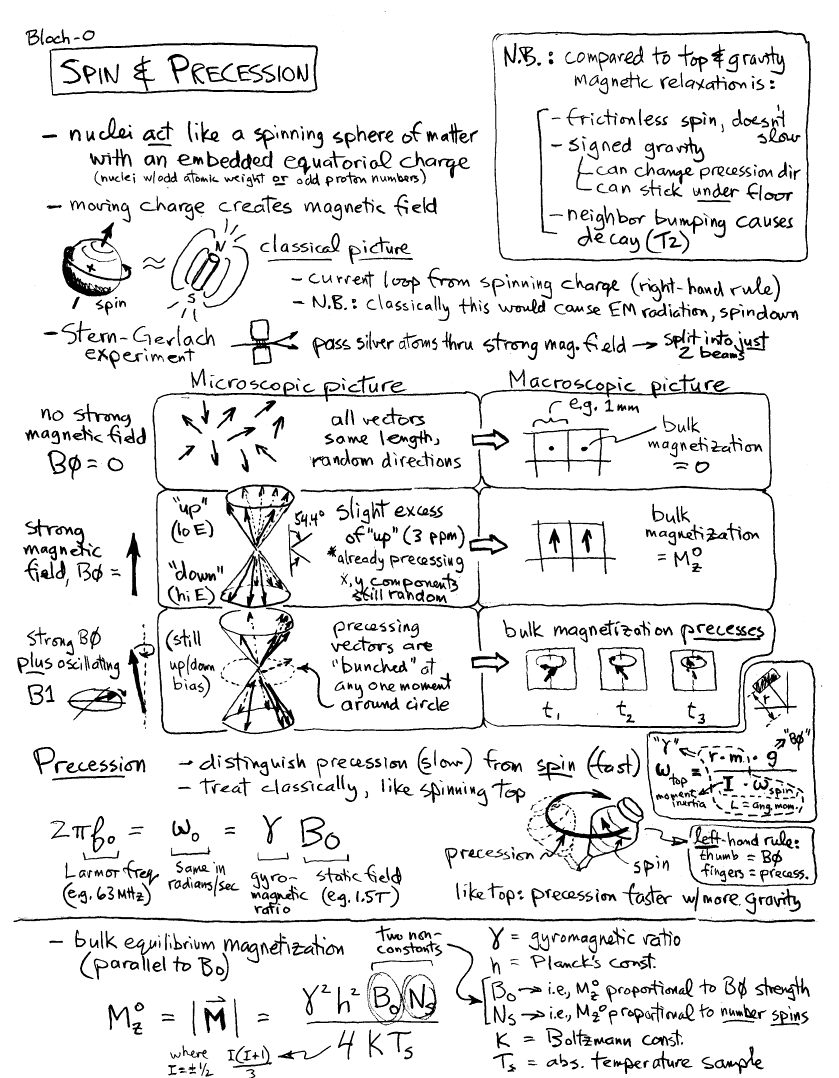

  • Spin and Precession

    Week of Sep 03 (Wed/Fri) — Bloch Equation
  • [no class Mon, Sep 03]

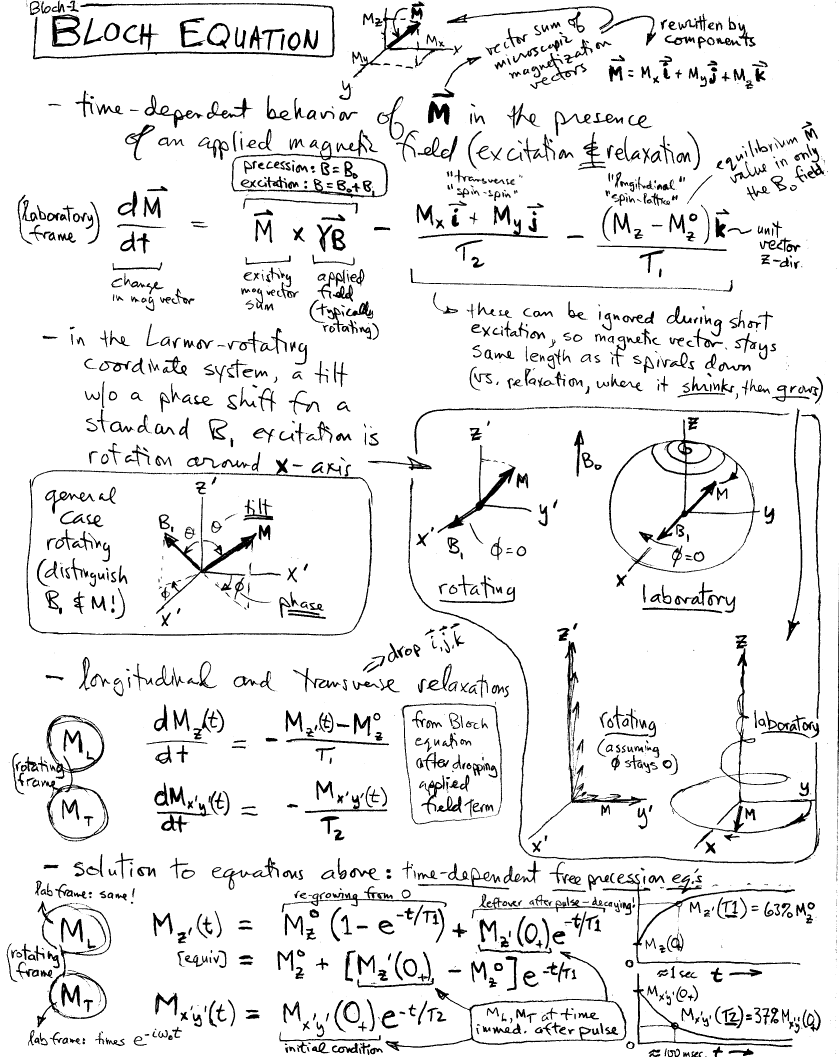

  • Bloch Equation

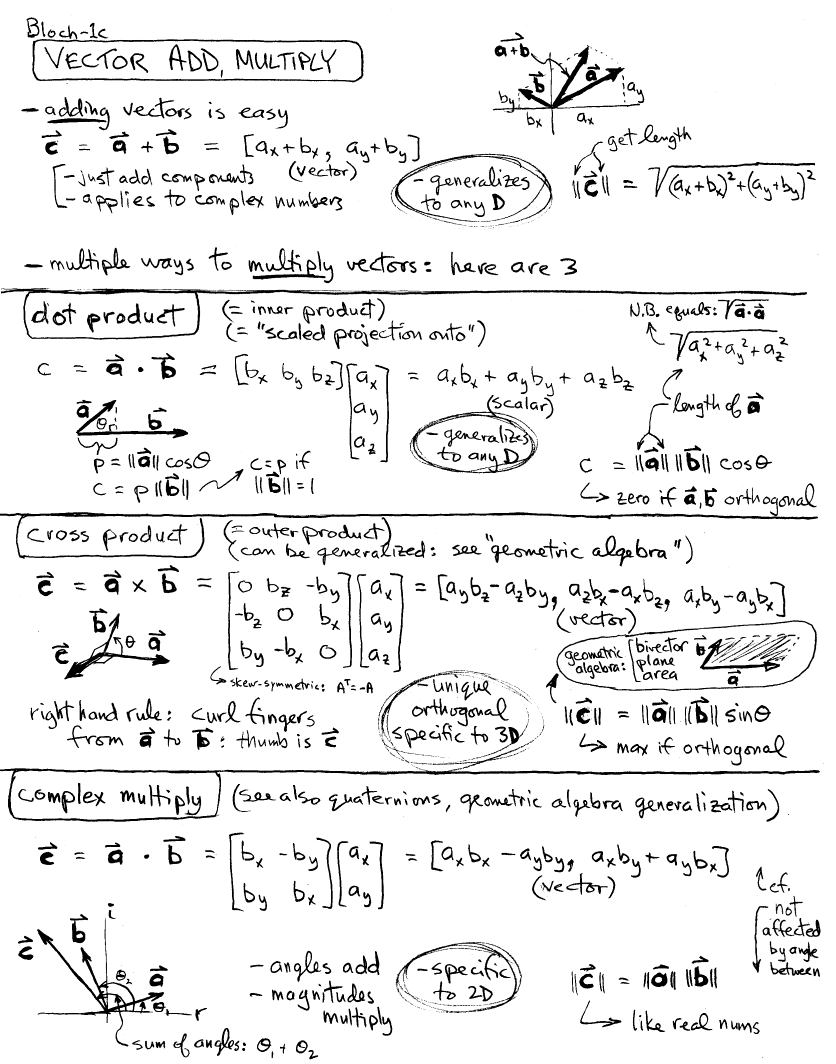

  • Dot/Cross/Complex Products
  • Precession Solution

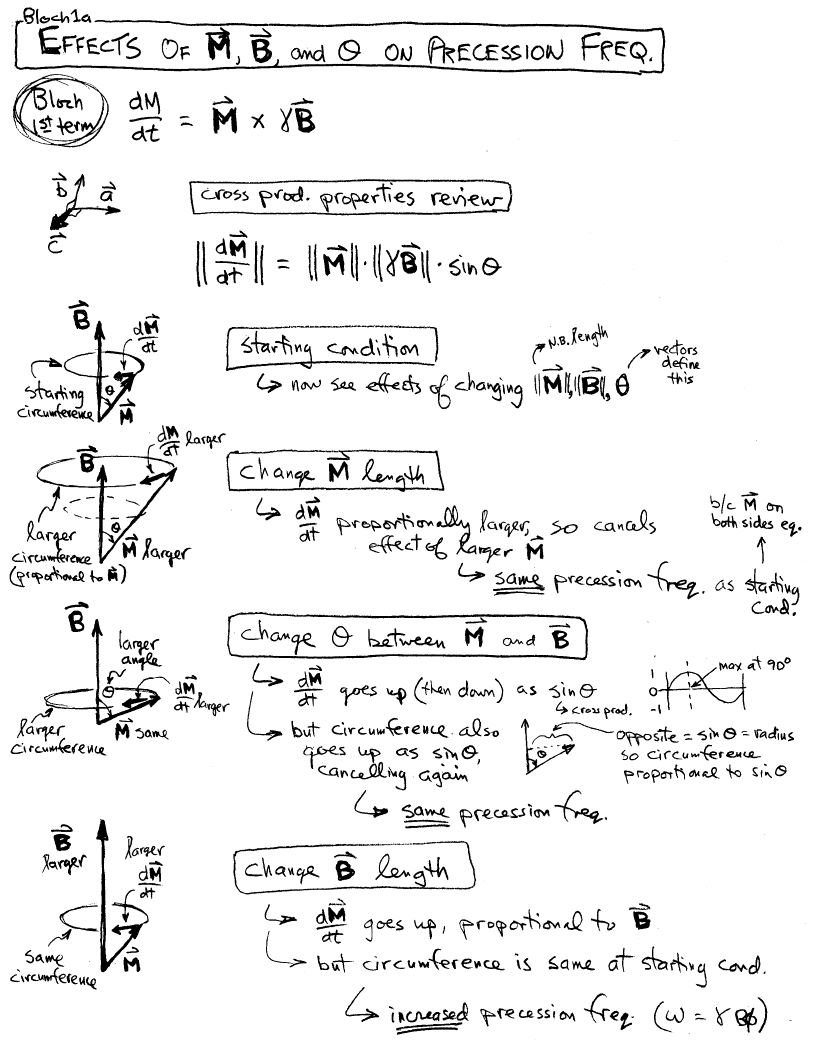

  • Effects of Change (M, B, Angle) On Precession Freq
  • T1, T2 Solutions

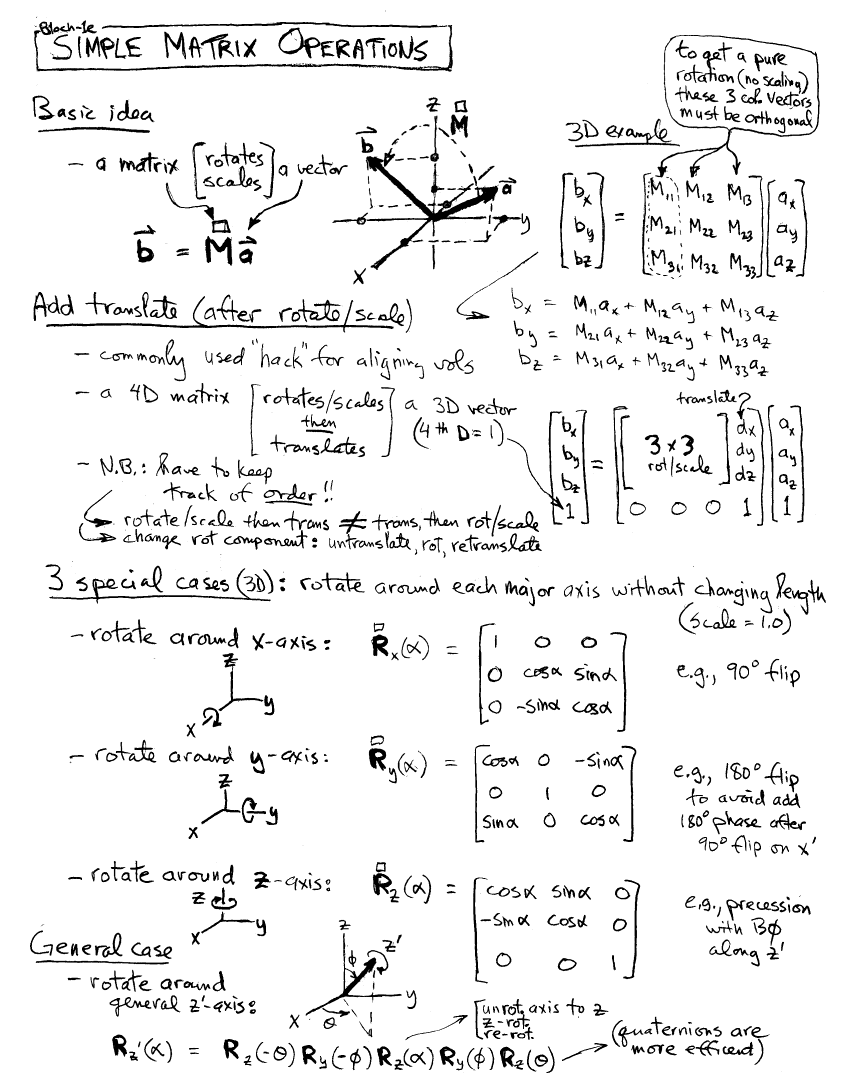

  • Simple Matrix Operations

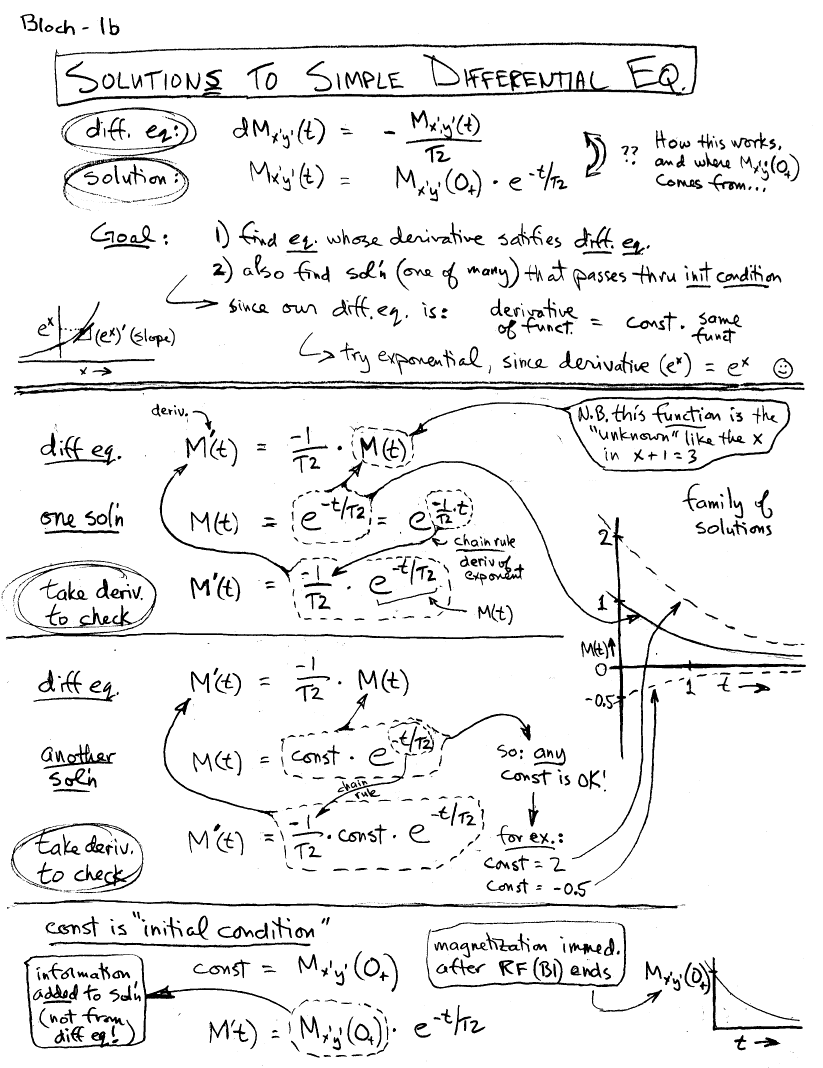

  • Initial-Value Solutions to Differential Equation

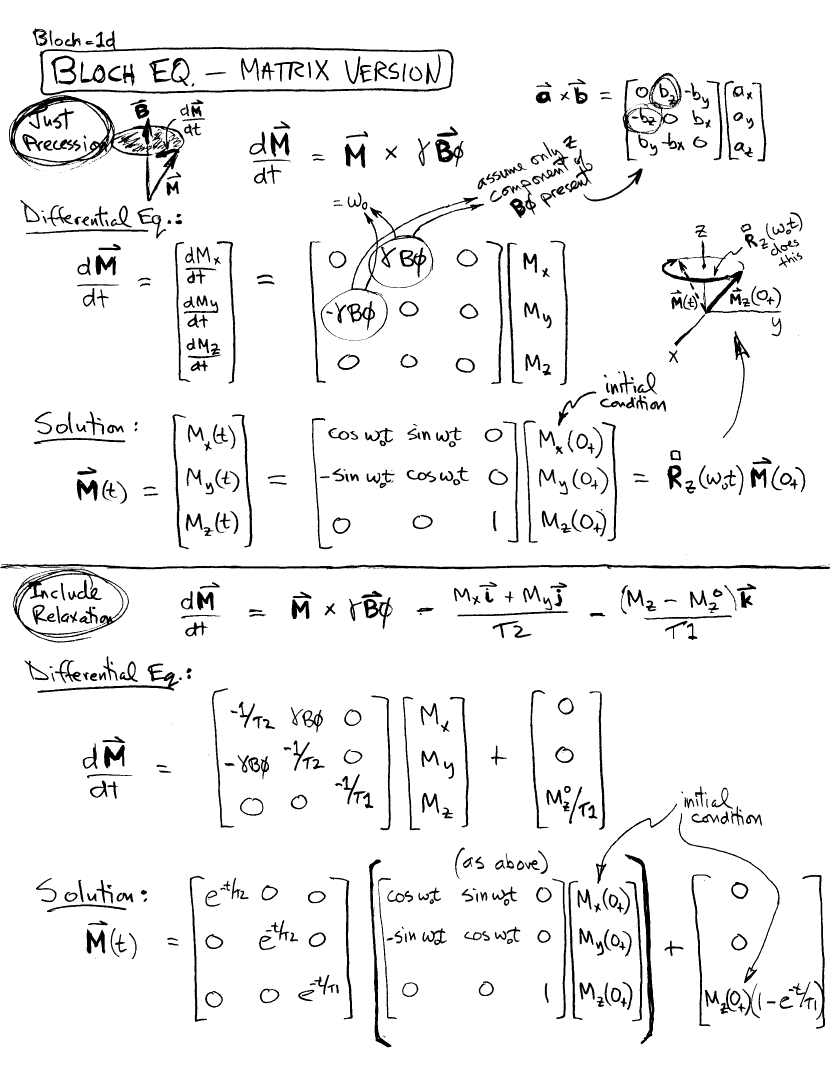

  • Bloch Equation, Solution — Matrix Version

    Week of Sep 10 (Mon/Wed/Fri) — Signal Equation

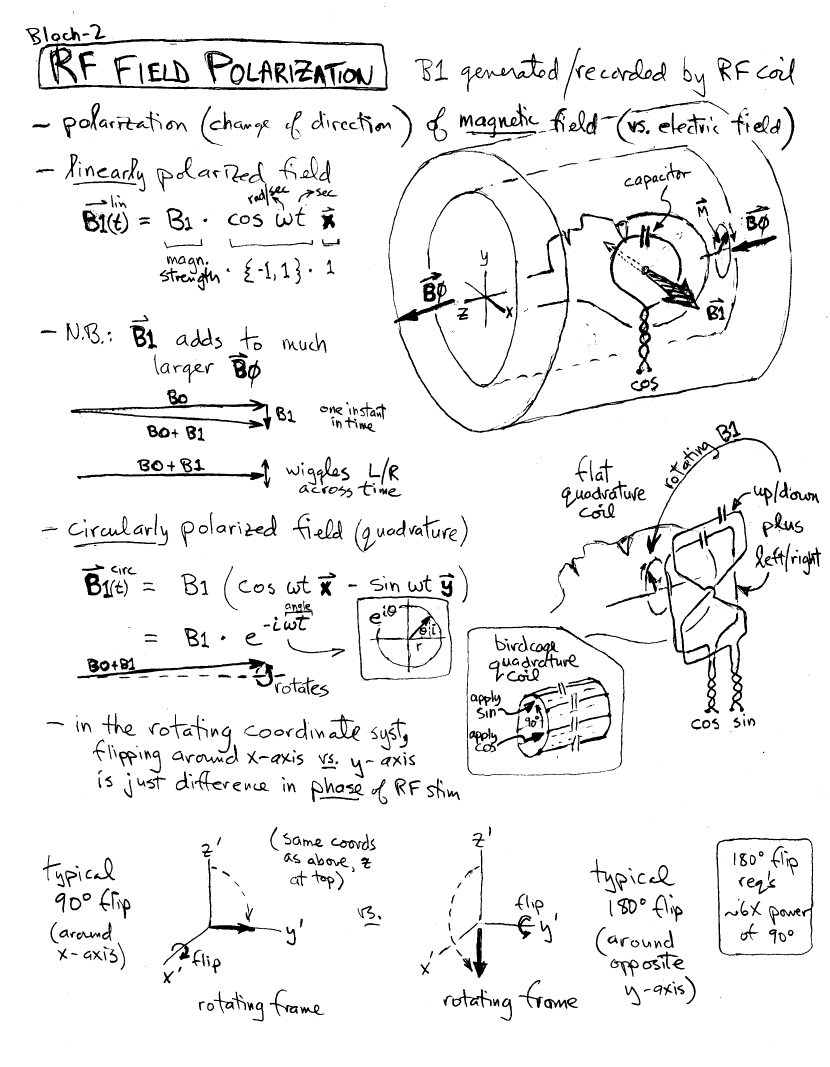

  • RF Excitation

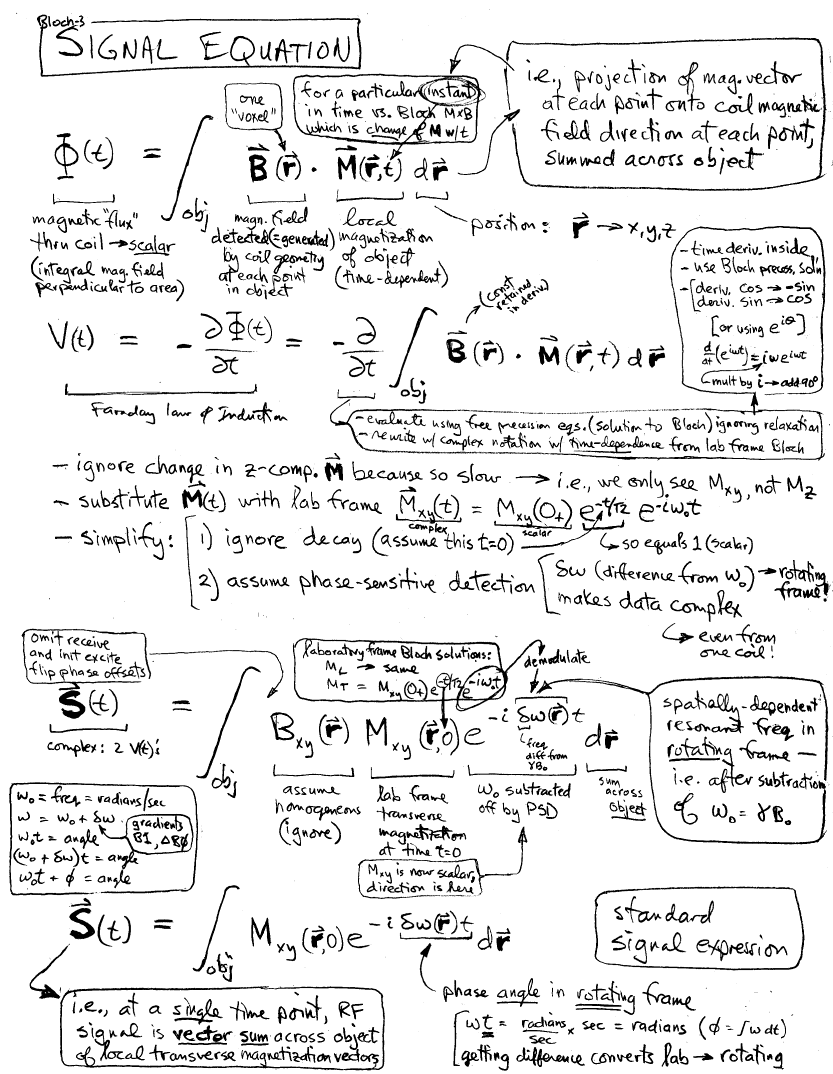

  • Signal Equation

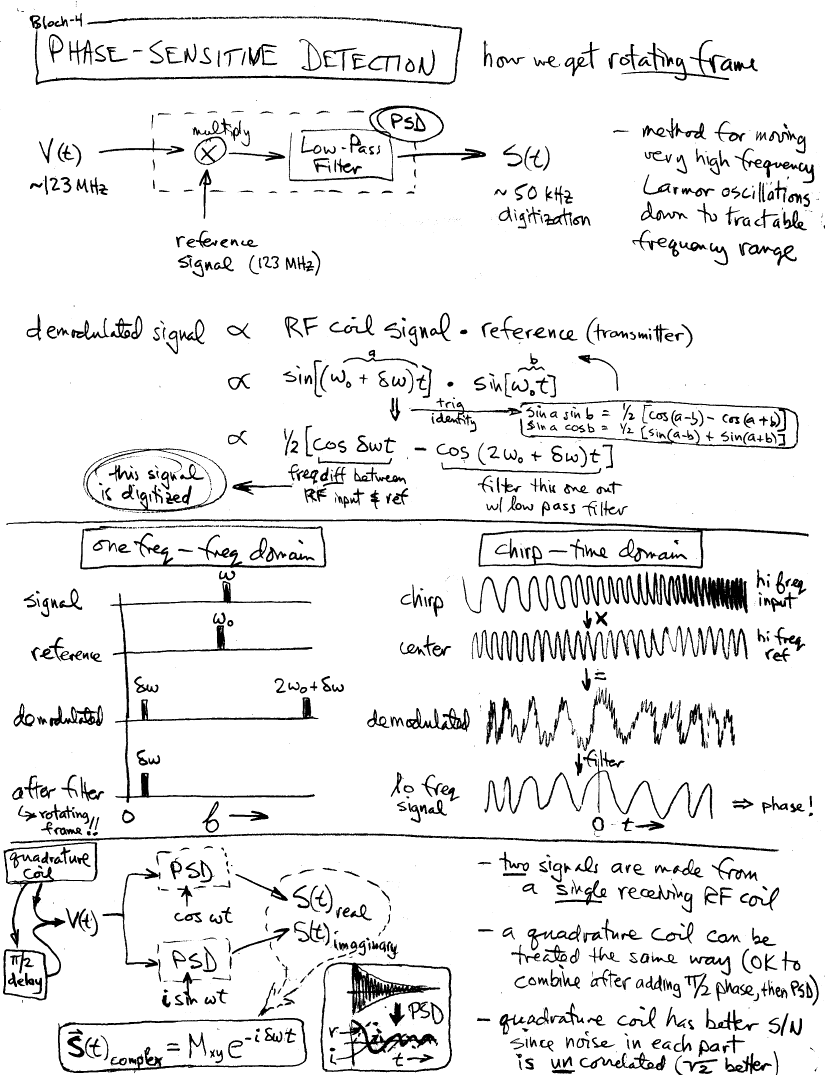

  • Phase-Sensitive Detection

    Week of Sep 17 (Mon/Wed/Fri) — Echoes

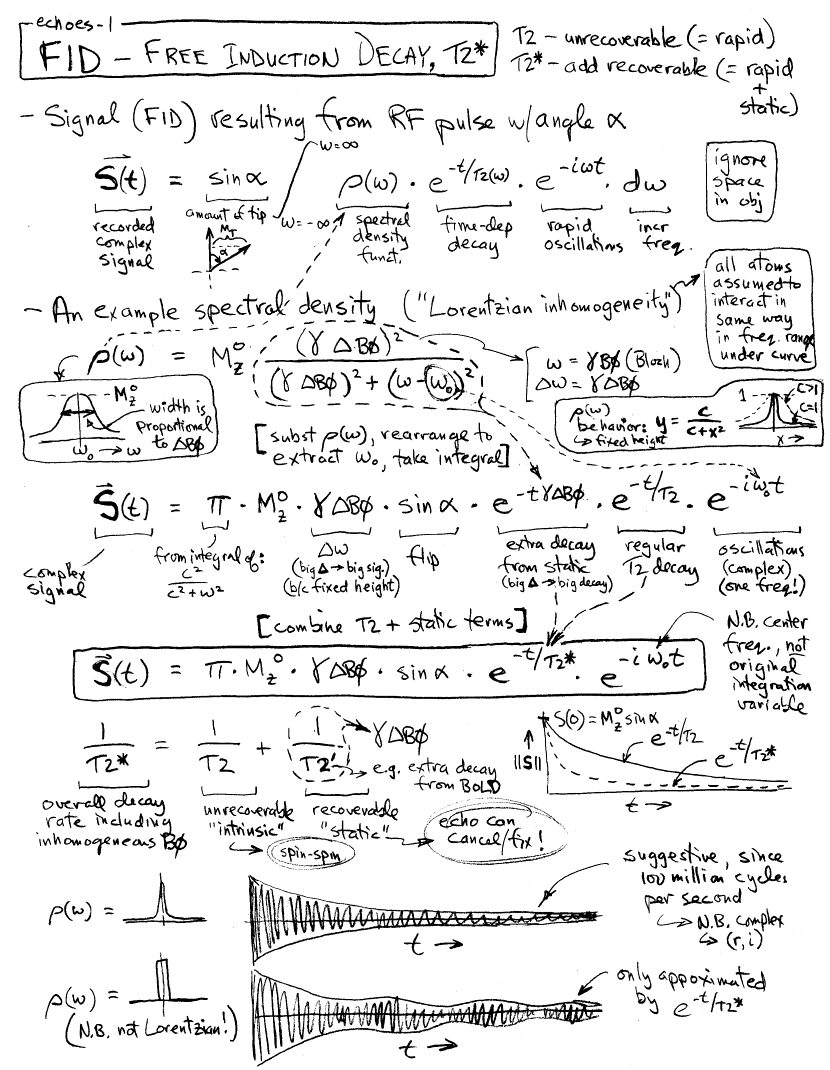

  • Free Induction Decay

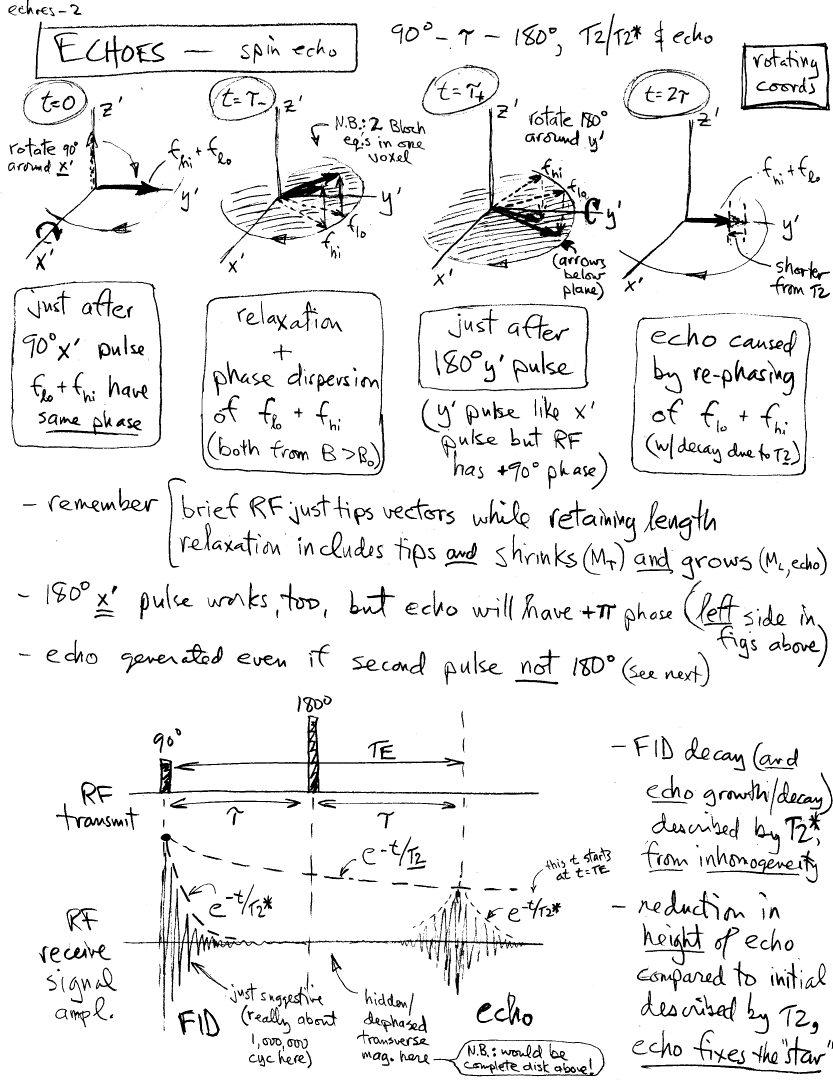

  • Spin Echo

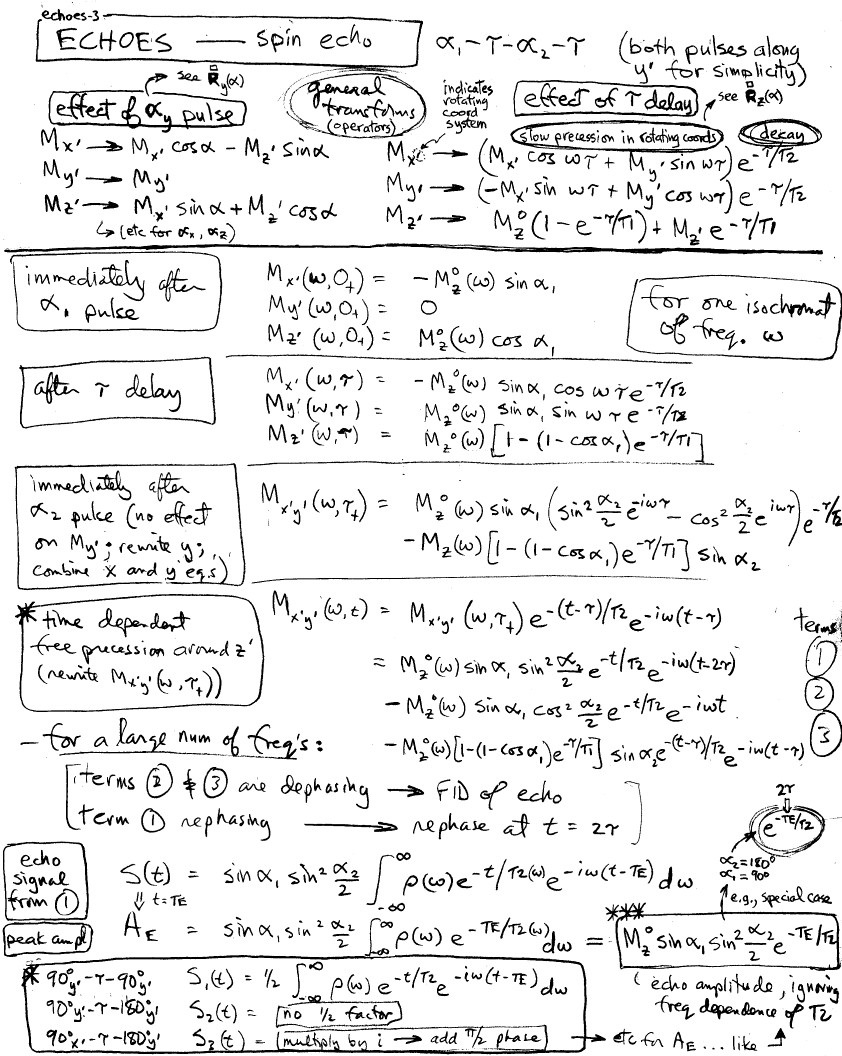

  • Spin Echo Equations

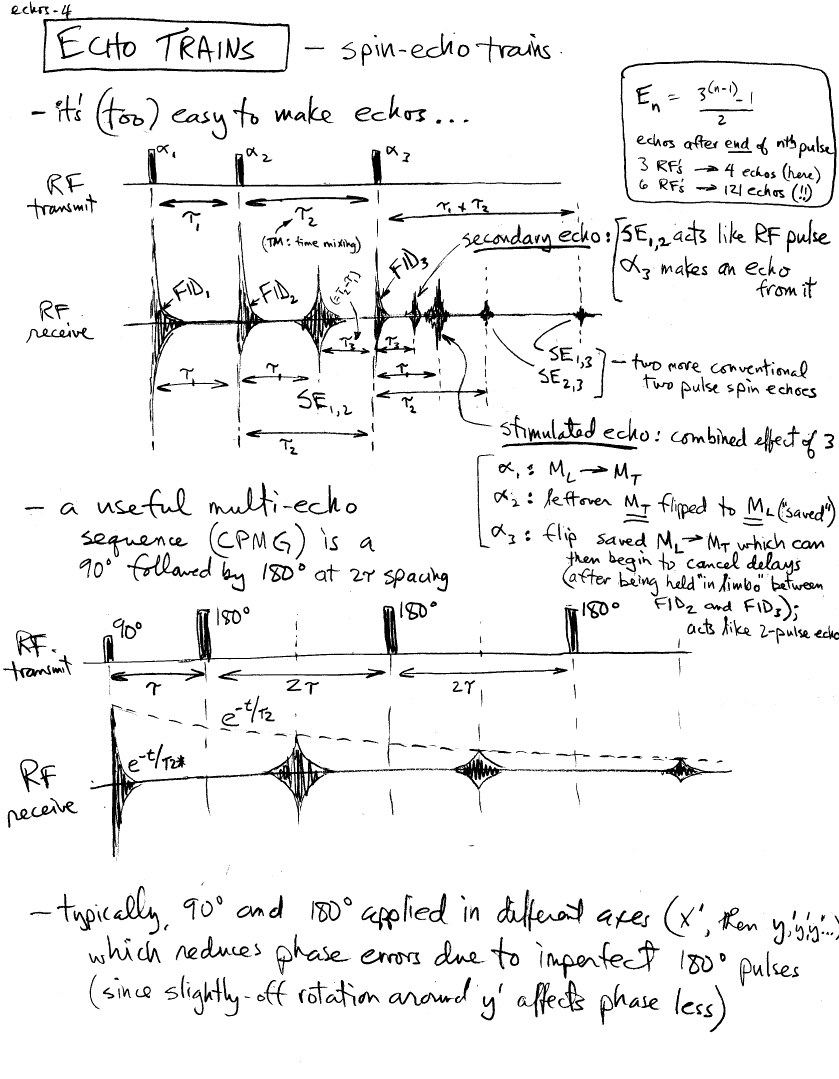

  • Stimulated Echo, Spin Echo Trains

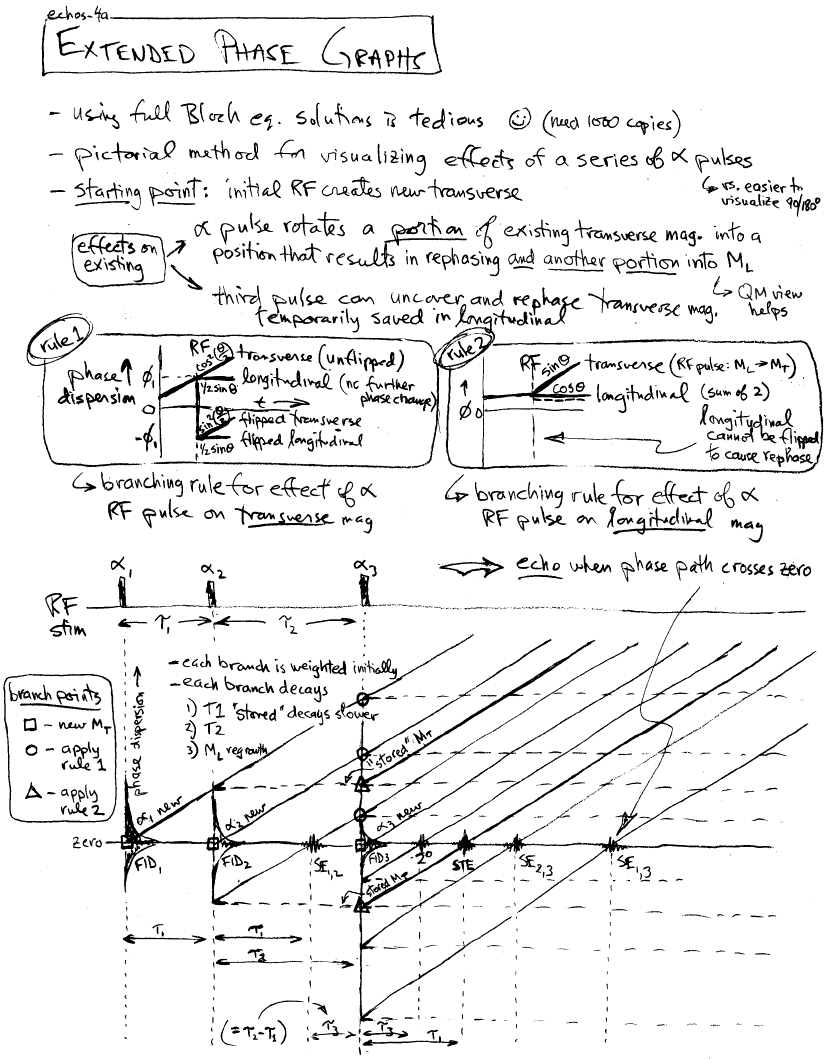

  • Extended Phase Graphs

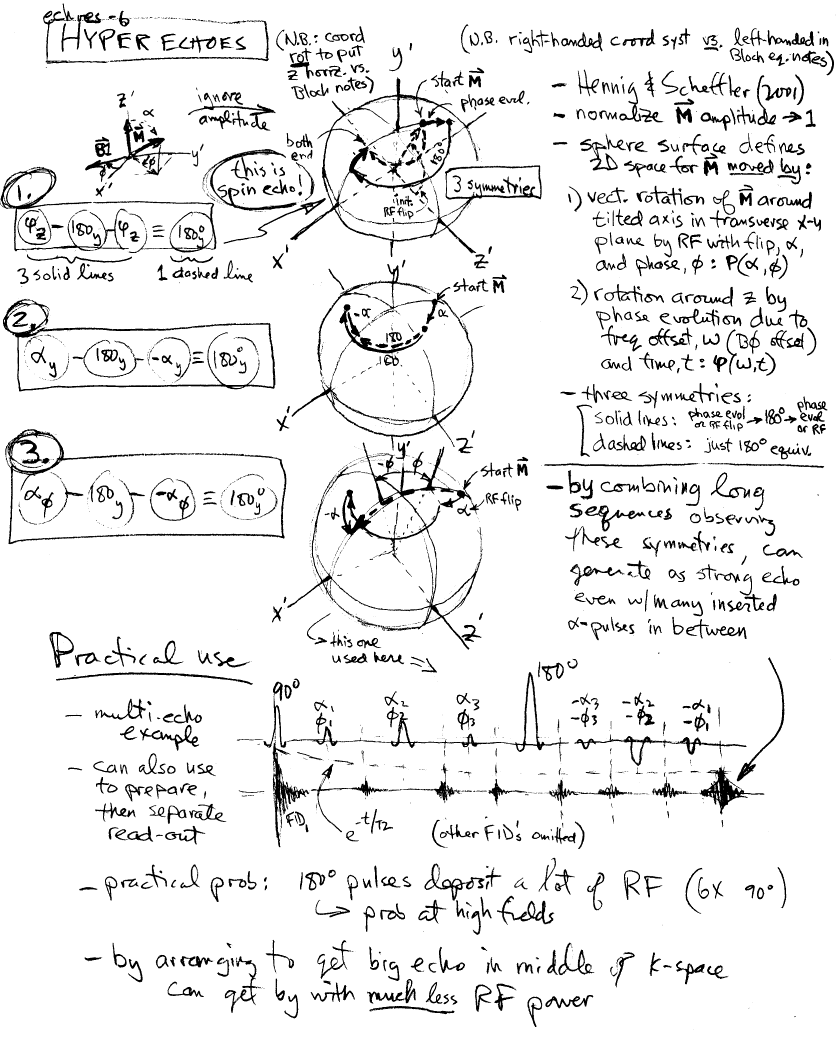

  • HyperEcho Train

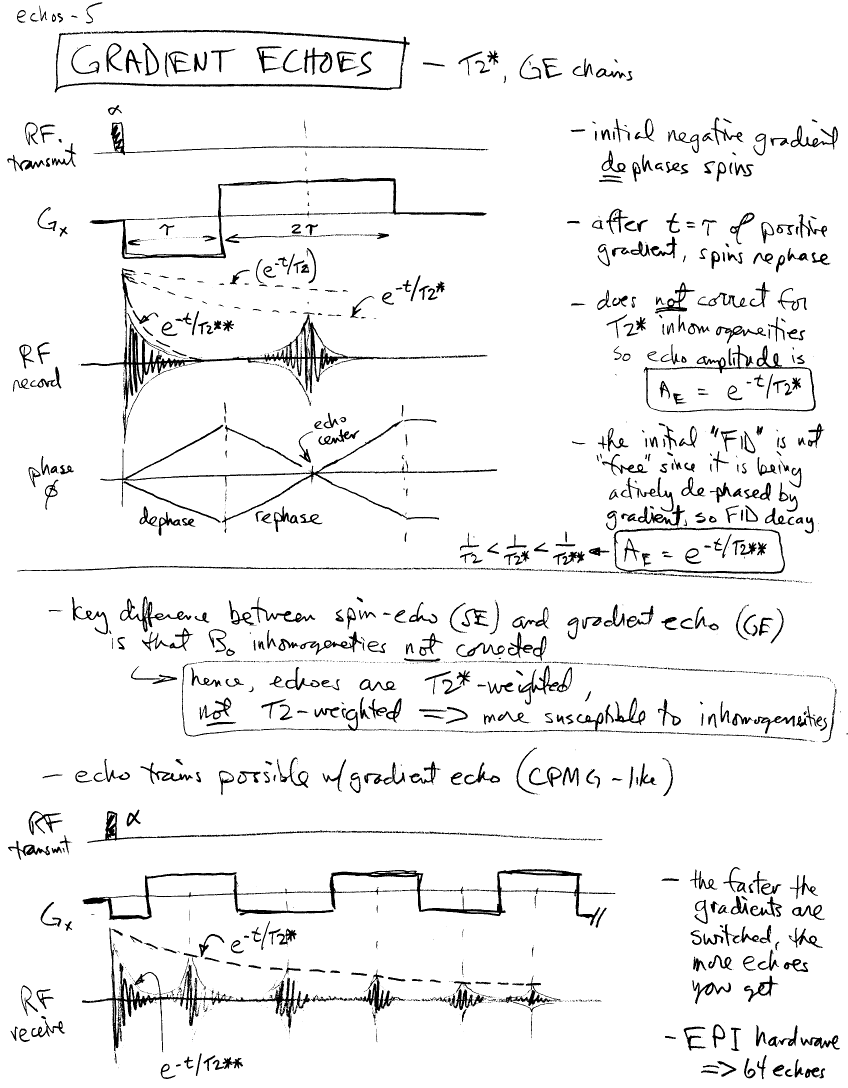

  • Gradient Echo, Gradient Echo Trains

    Week of Sep 24 (Mon/Wed/Fri) — Using the Bloch Equation

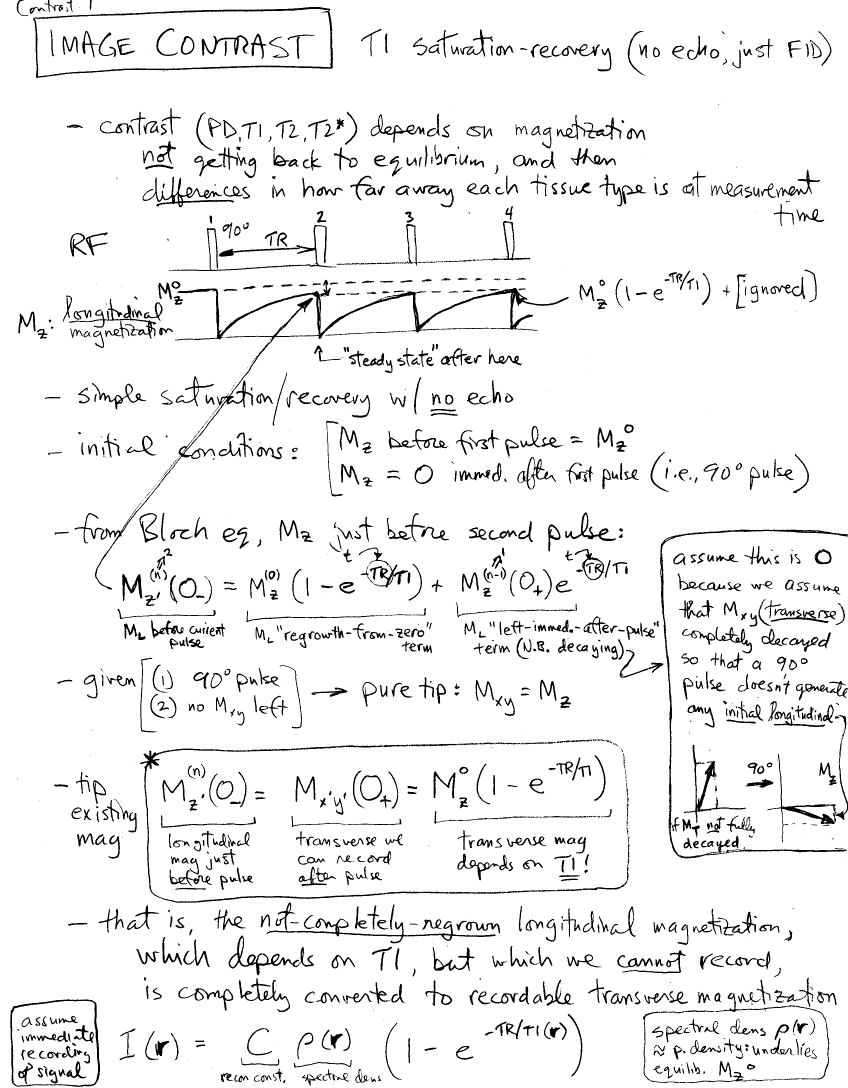

  • Saturation-Recovery Signal

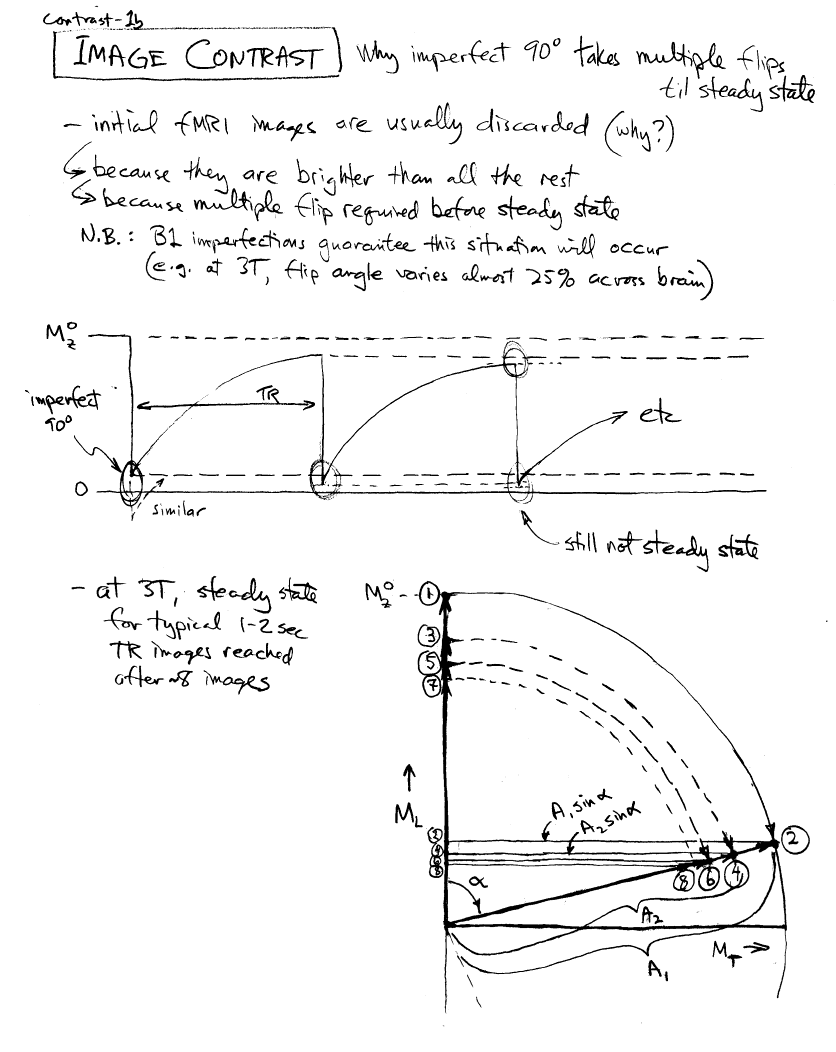

  • Imperfect 90 deg Approach to State State

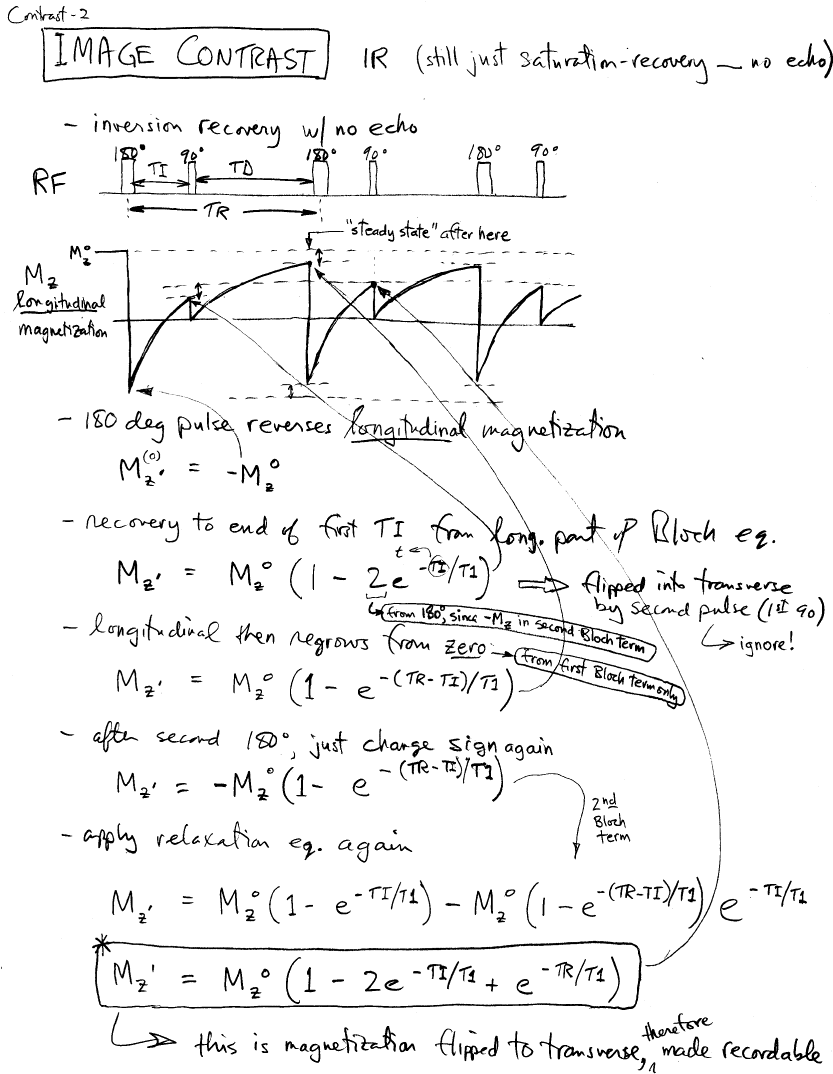

  • Inversion Recovery Signal

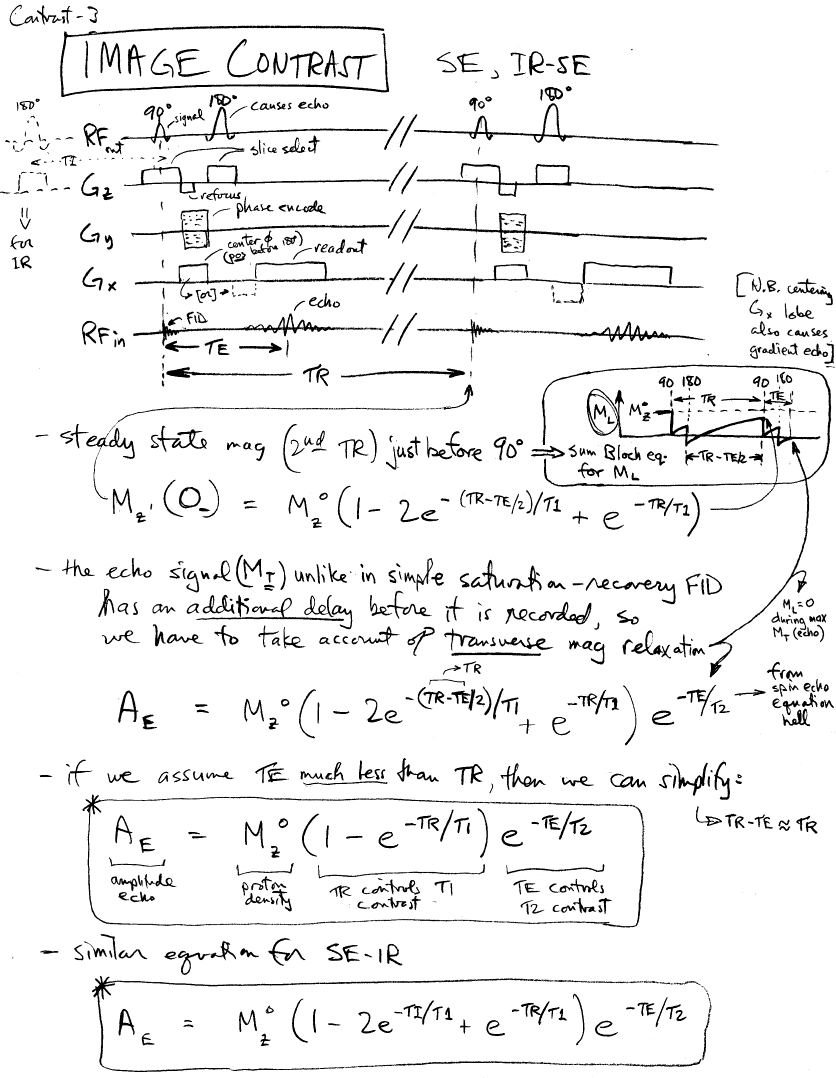

  • Spin Echo Signal

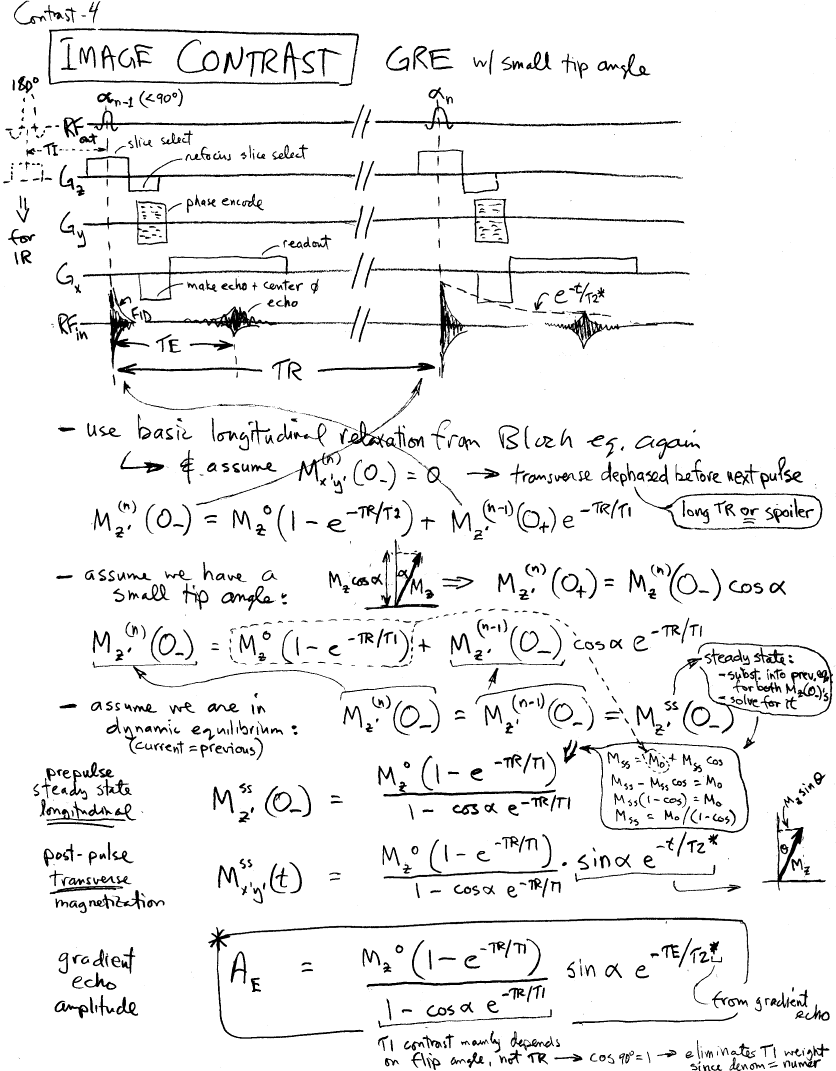

  • Gradient Echo Signal

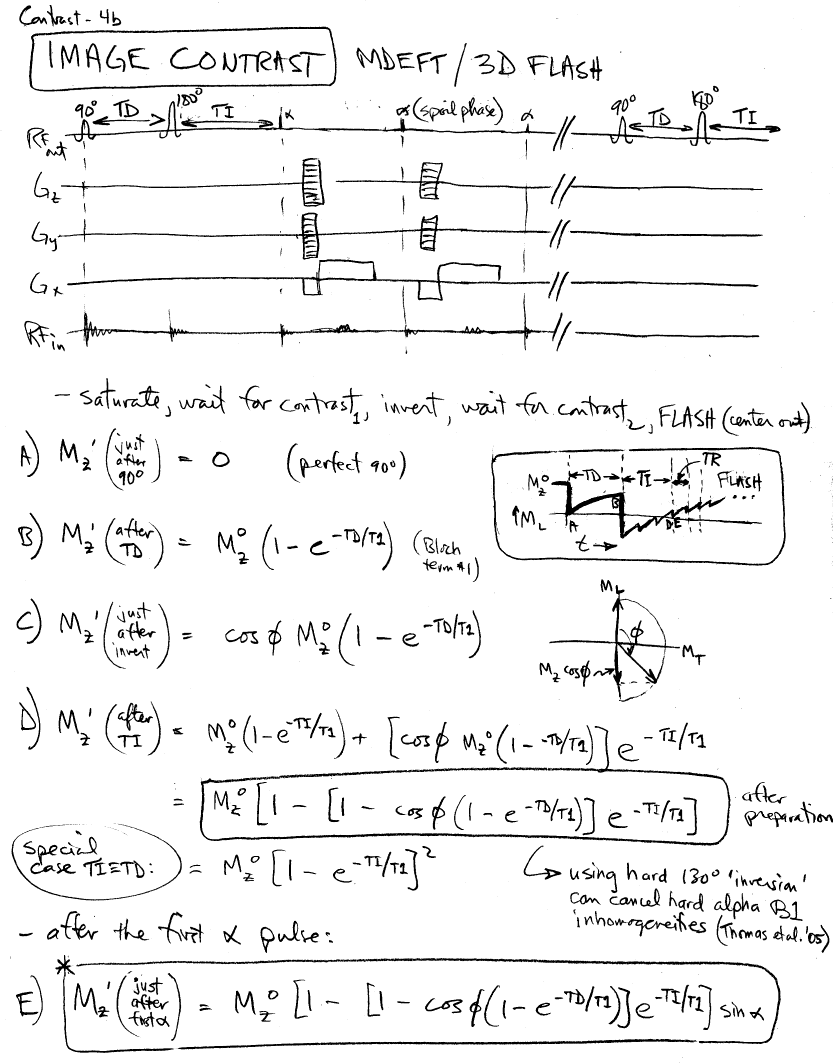

  • Generalized MDEFT Signal

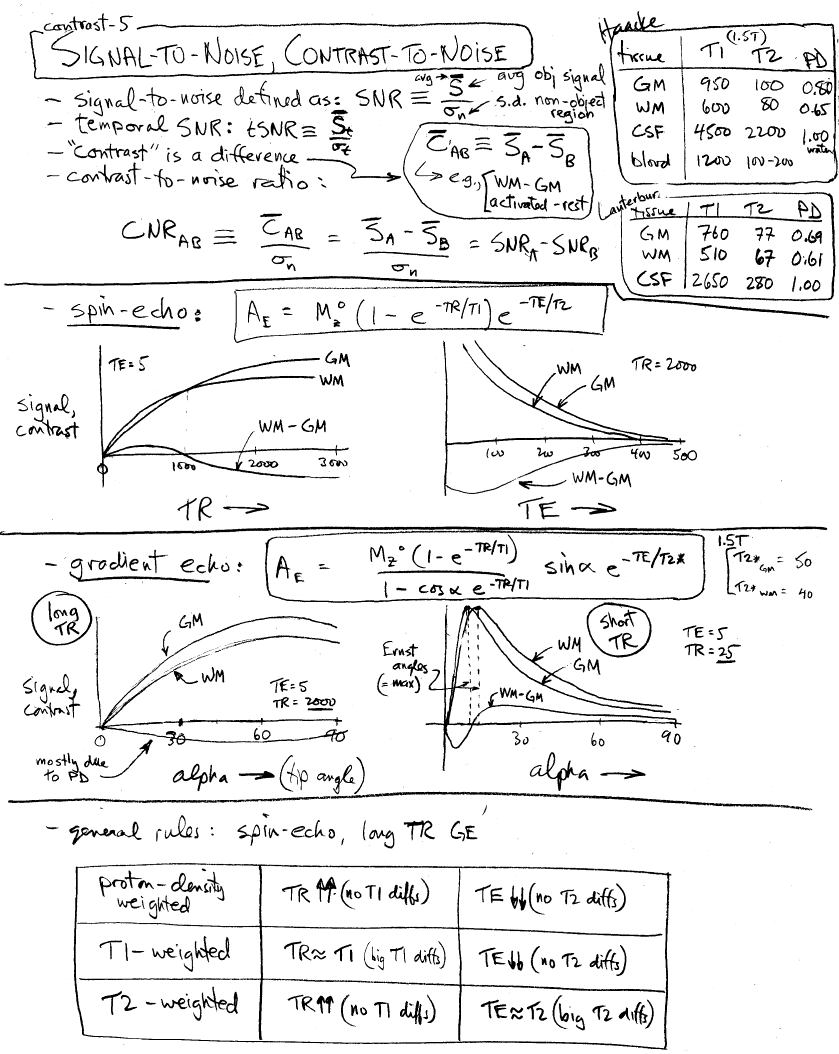

  • SNR/tSNR/CNR (e.g., Gray/White)

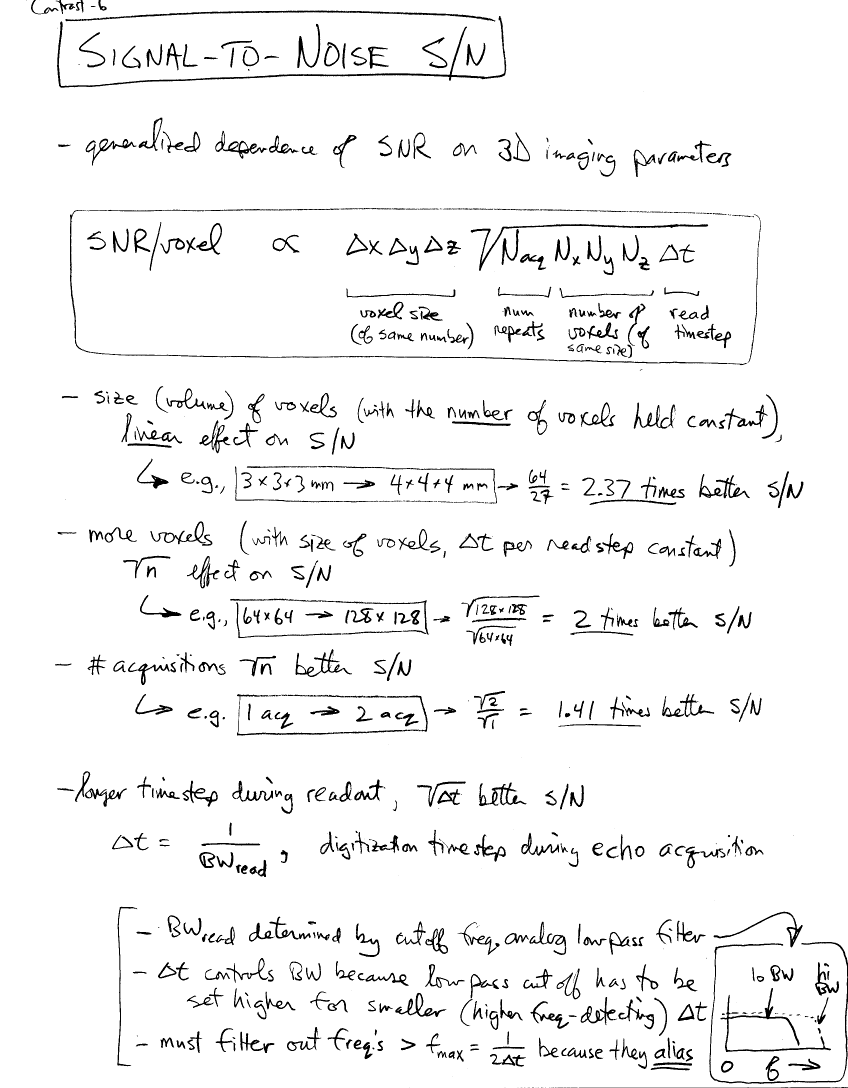

  • Signal-to-Noise

    Week of Oct 01 (Mon/Wed/Fri) — Fourier transform

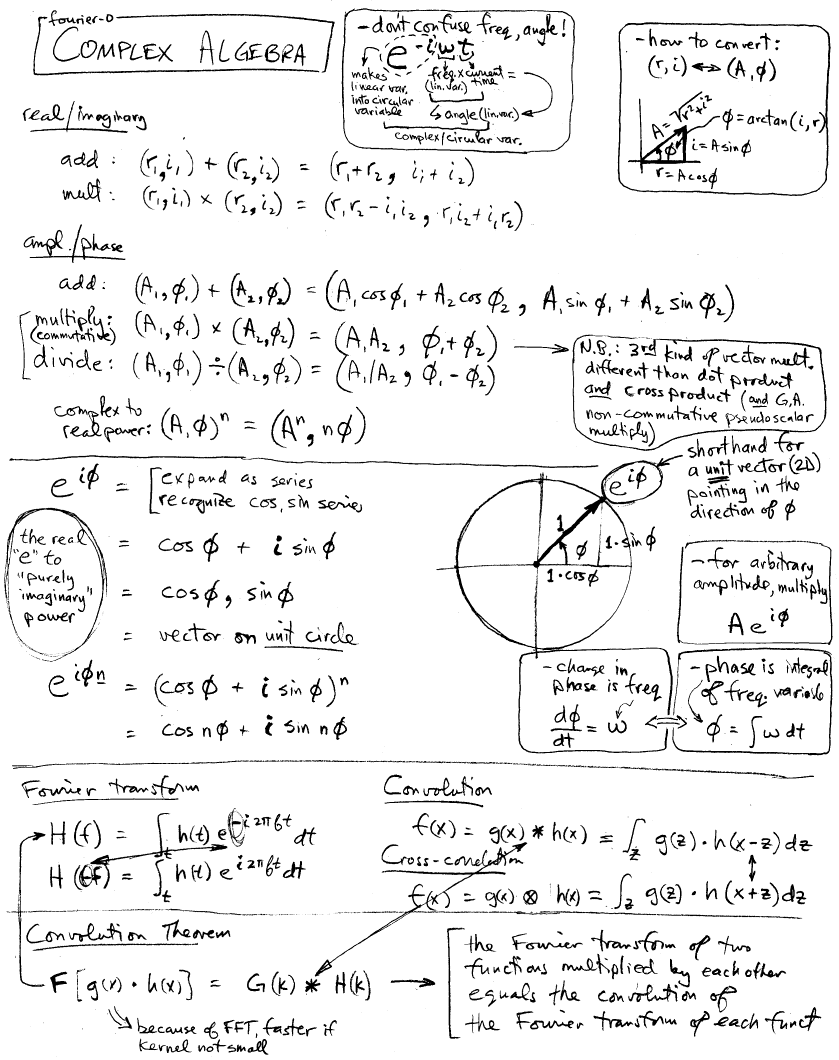

  • Complex Algebra

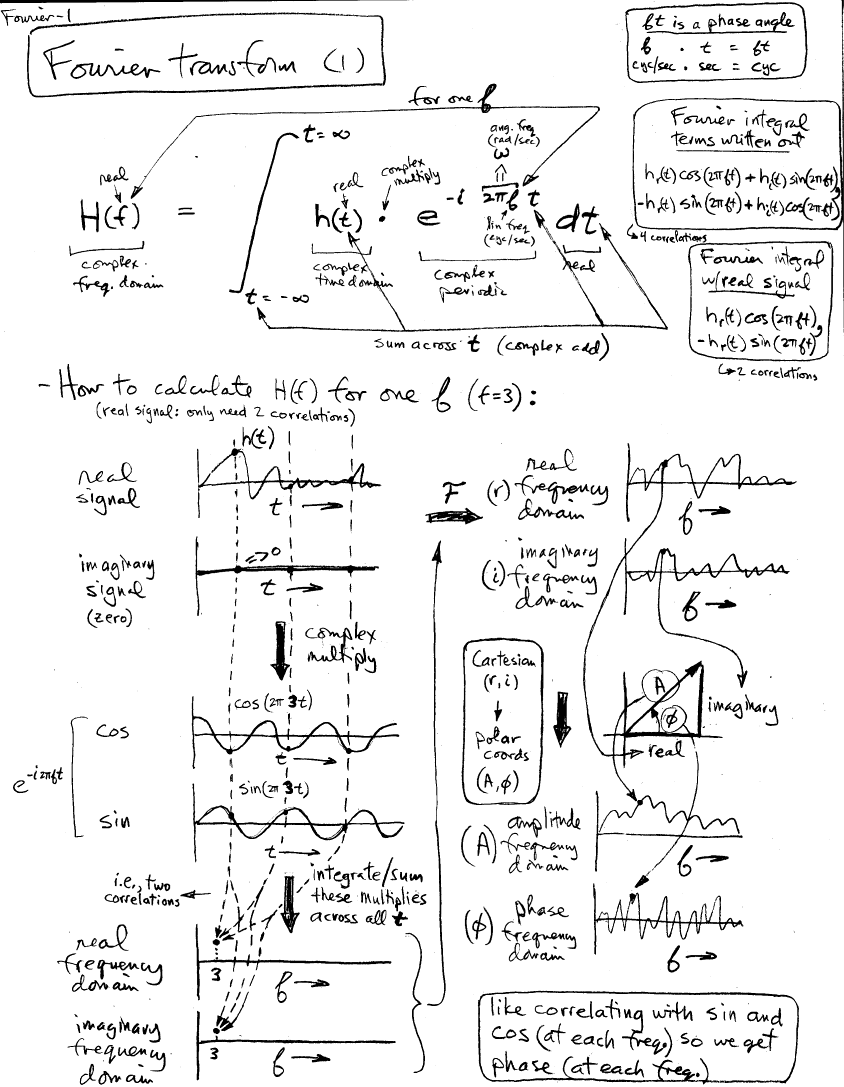

  • Fourier Transform

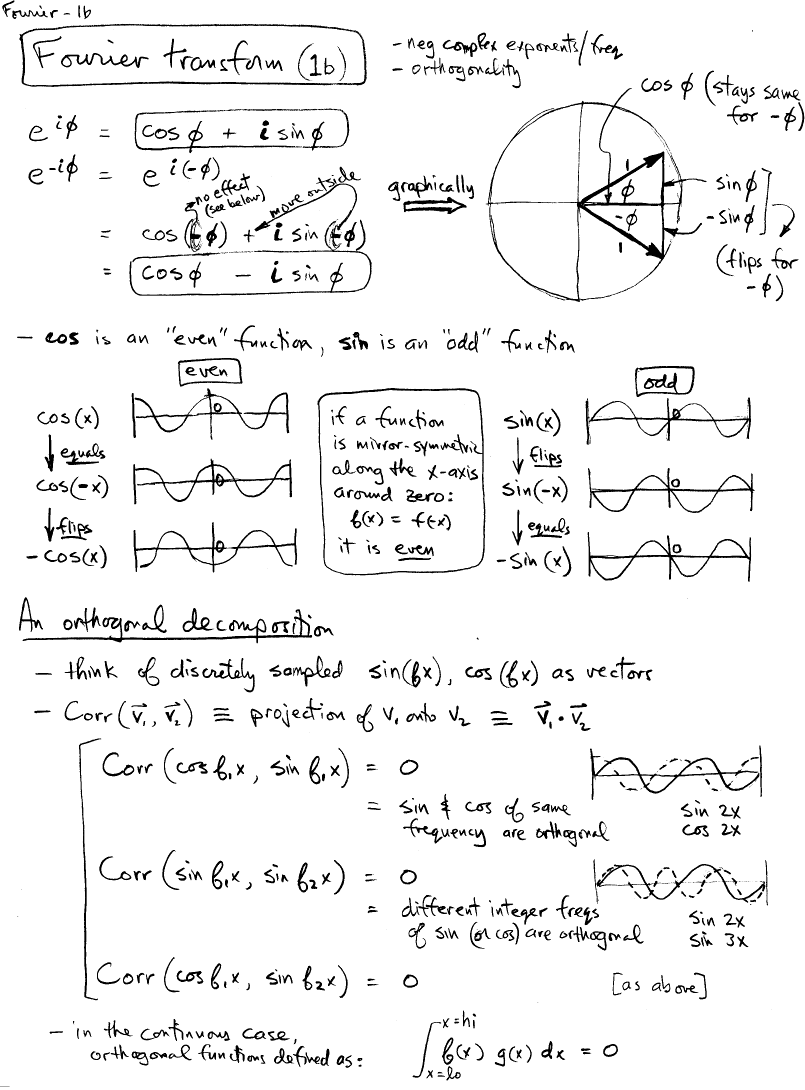

  • Negative Exponents, Orthogonality

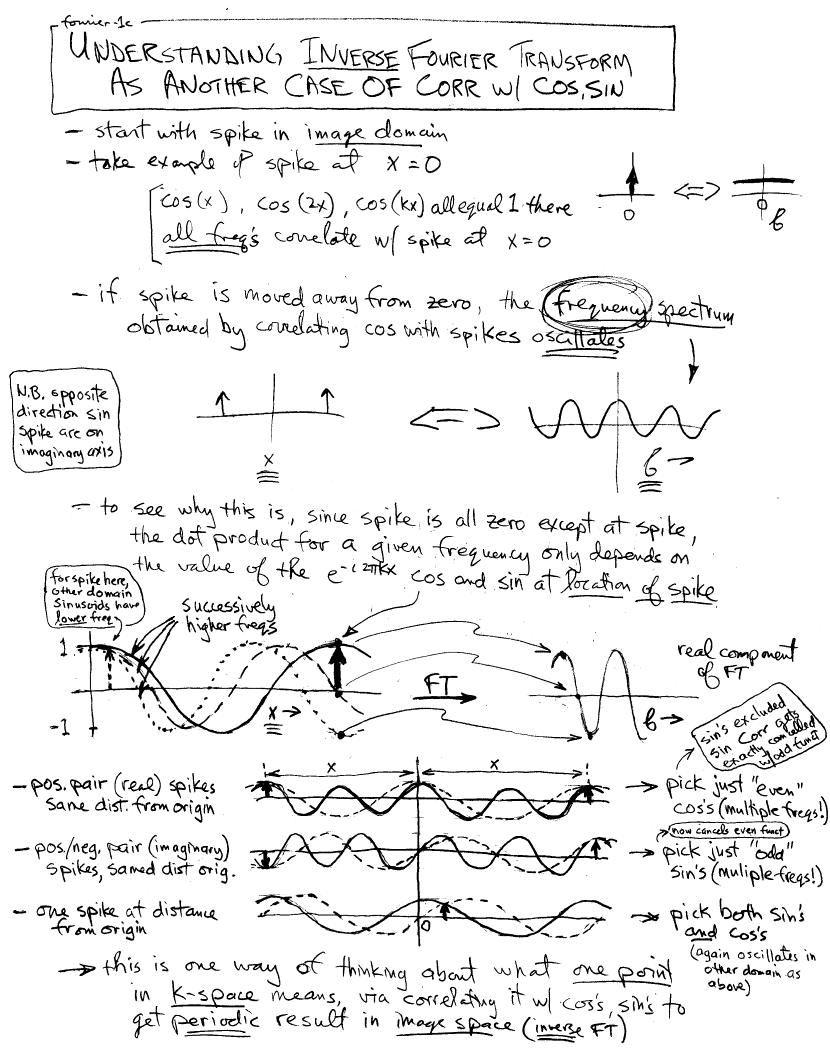

  • Inverse Fourier as Correlation w/Cos,Sin
  • Spatial Frequency Space (k-Space)
  • One k-Space Point

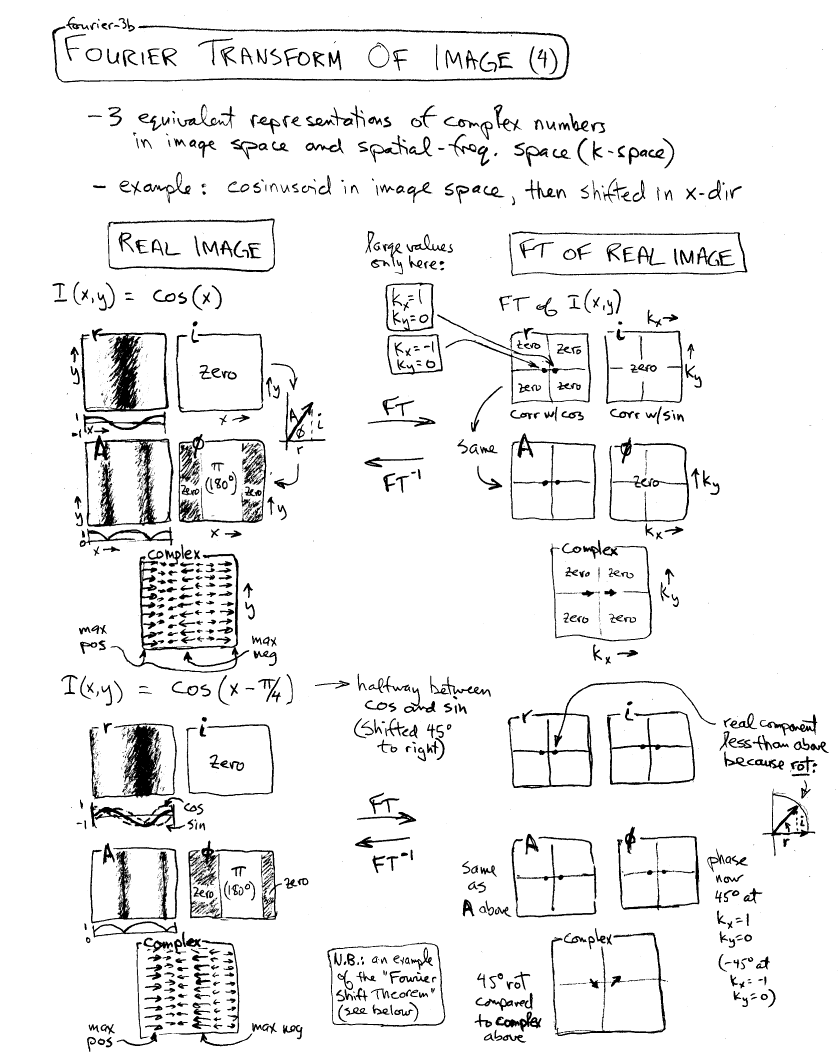

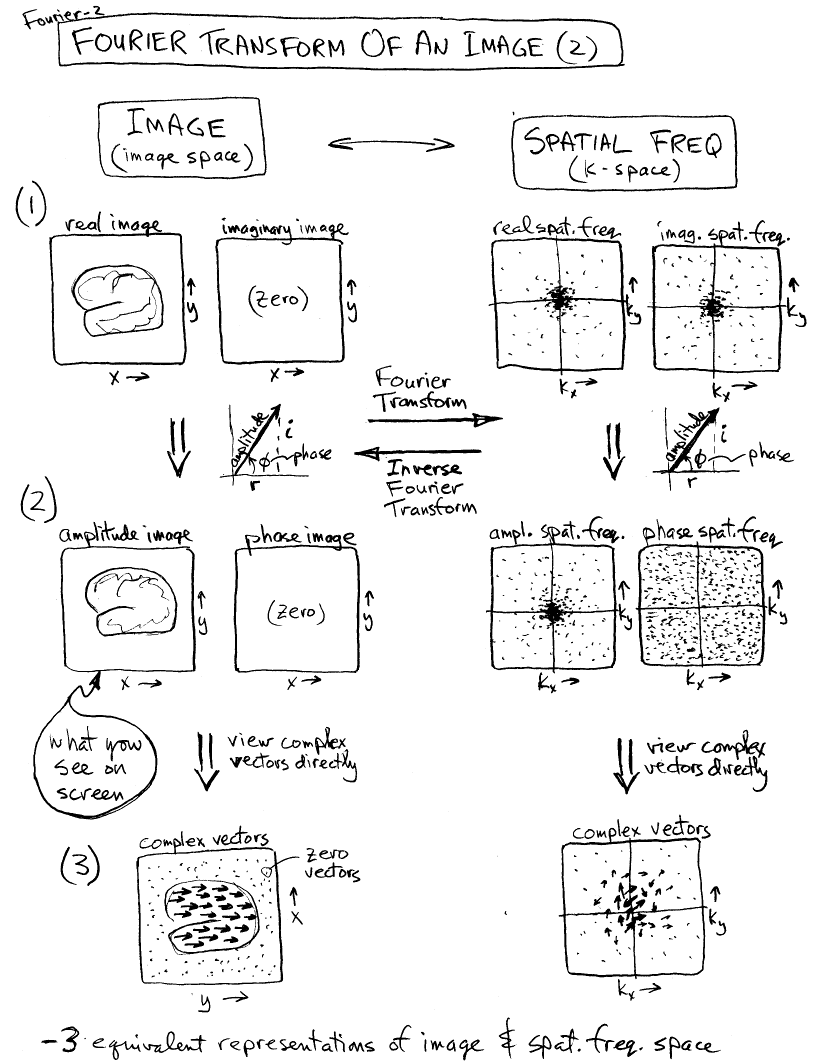

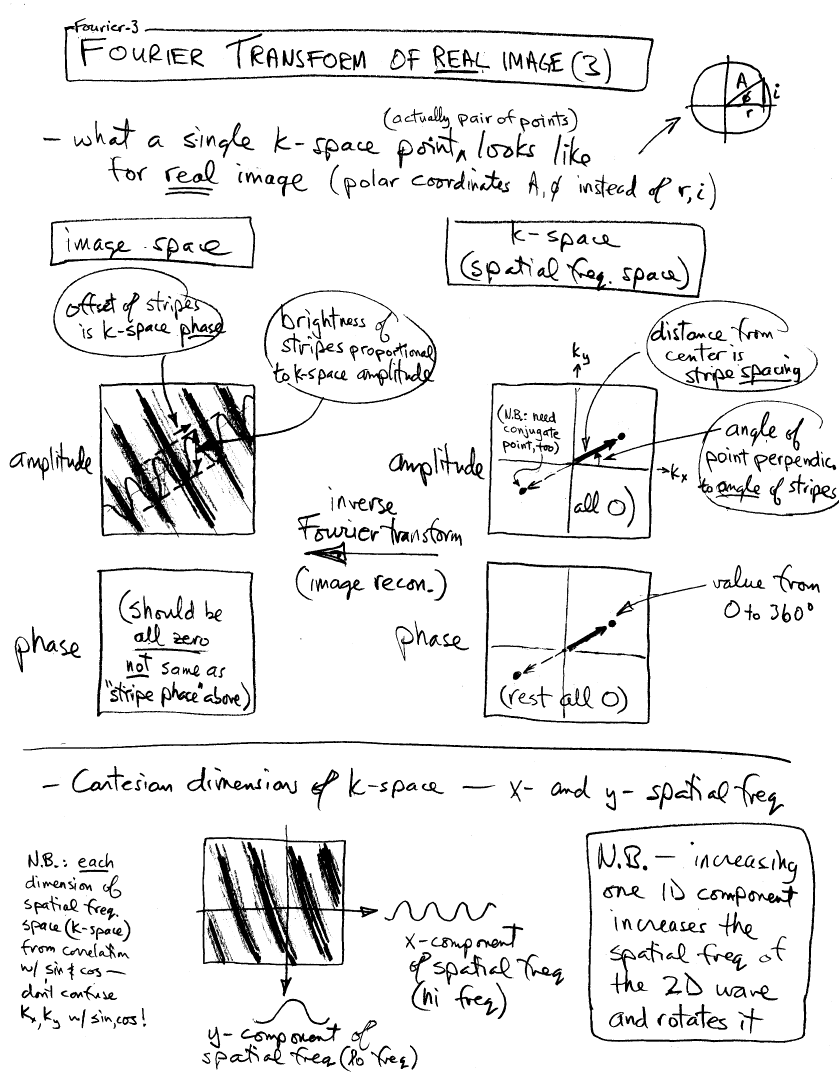

  • One k-Space Point — 3 representations

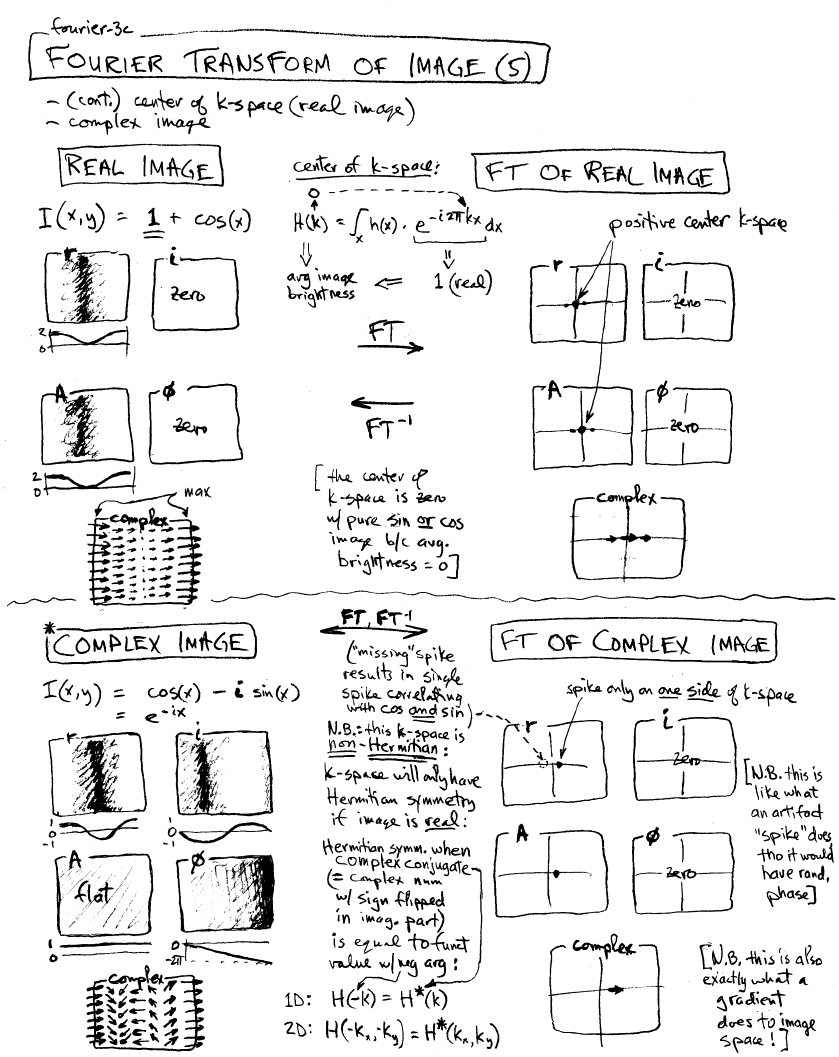

  • Center of k-Space, Complex Image

    Week of Oct 08 (Mon/Wed/Fri) — Gradients, Slice Selection

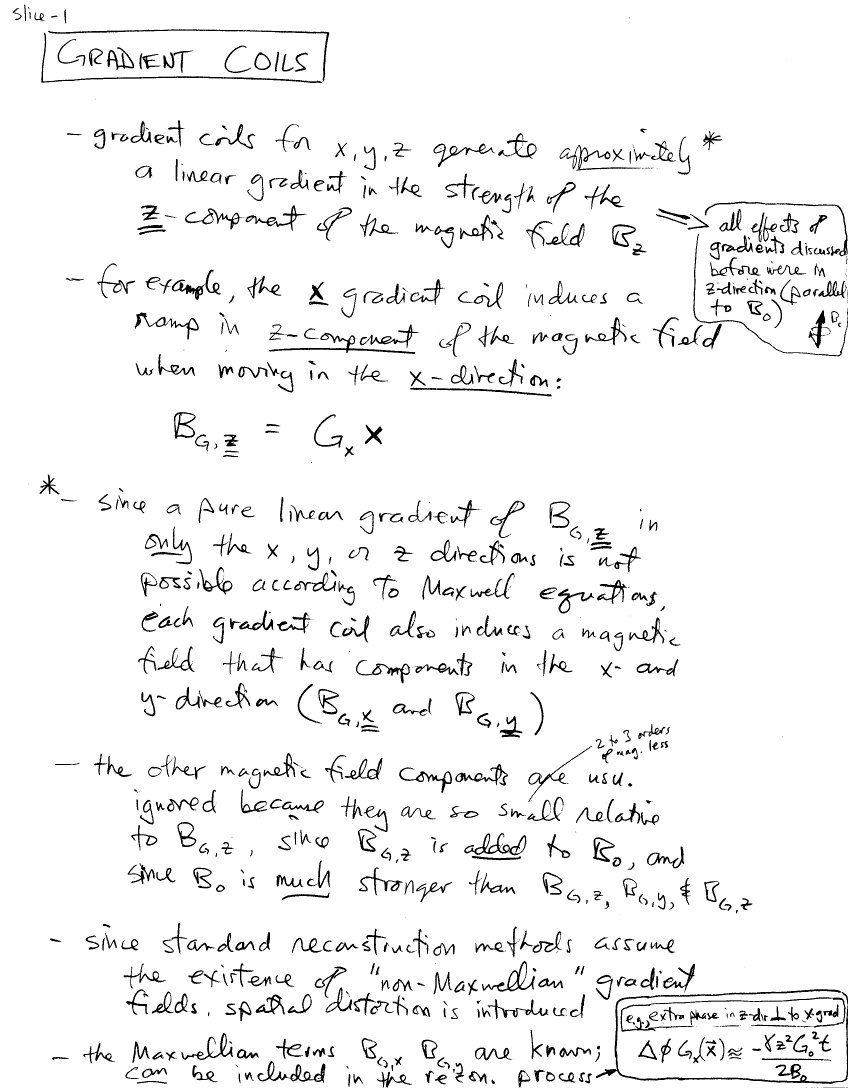

  • Gradient Fields
  • Gradient Combination

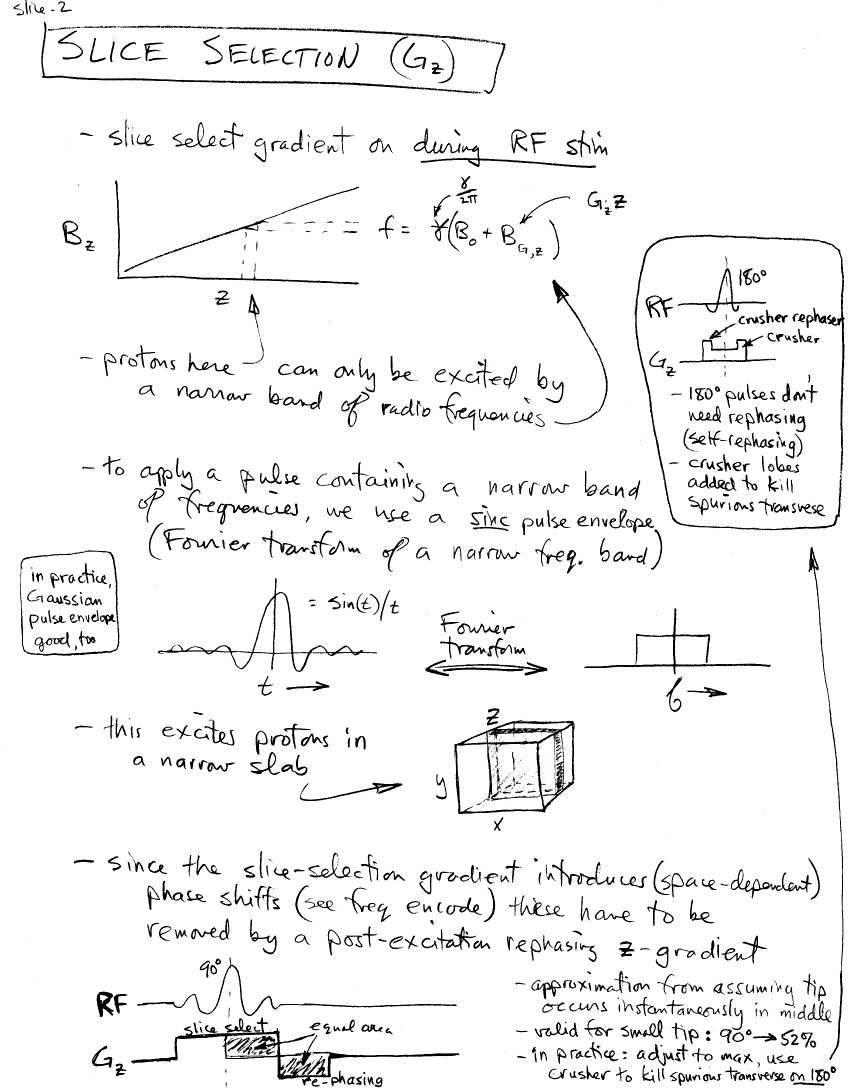

  • Slice Selection

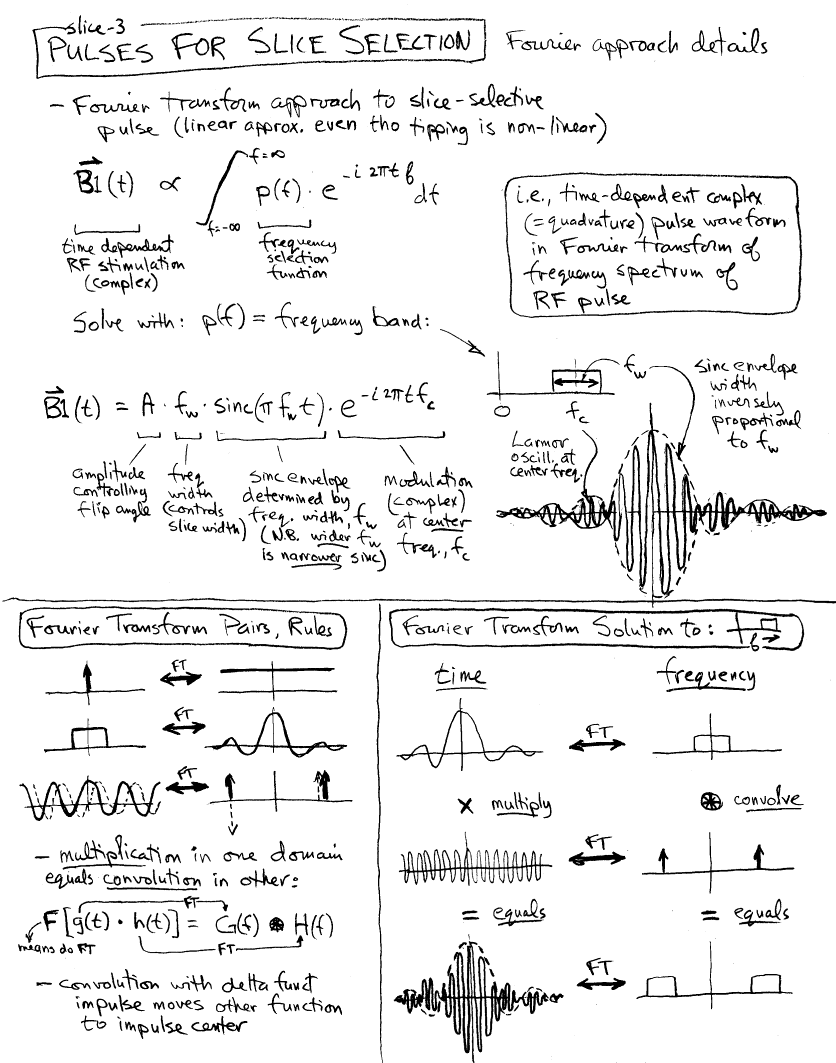

  • RF Pulse Details

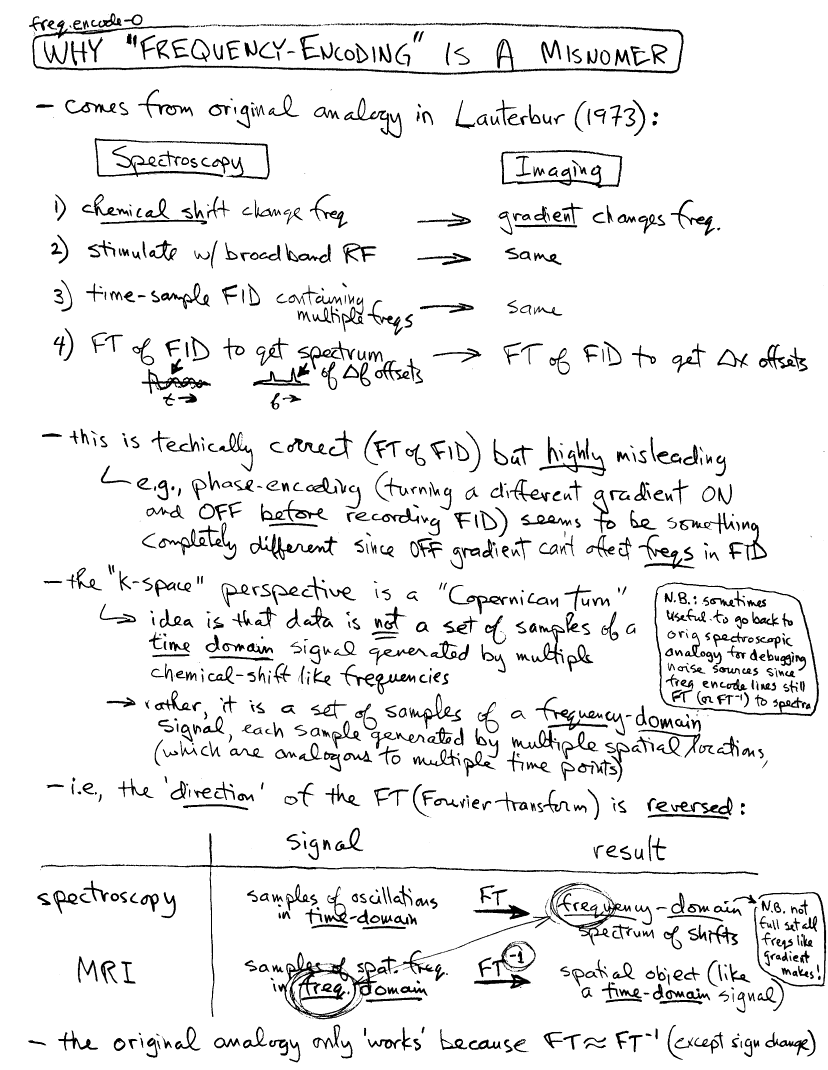

  • Frequency-Encoding Intro —It's A Misnomer

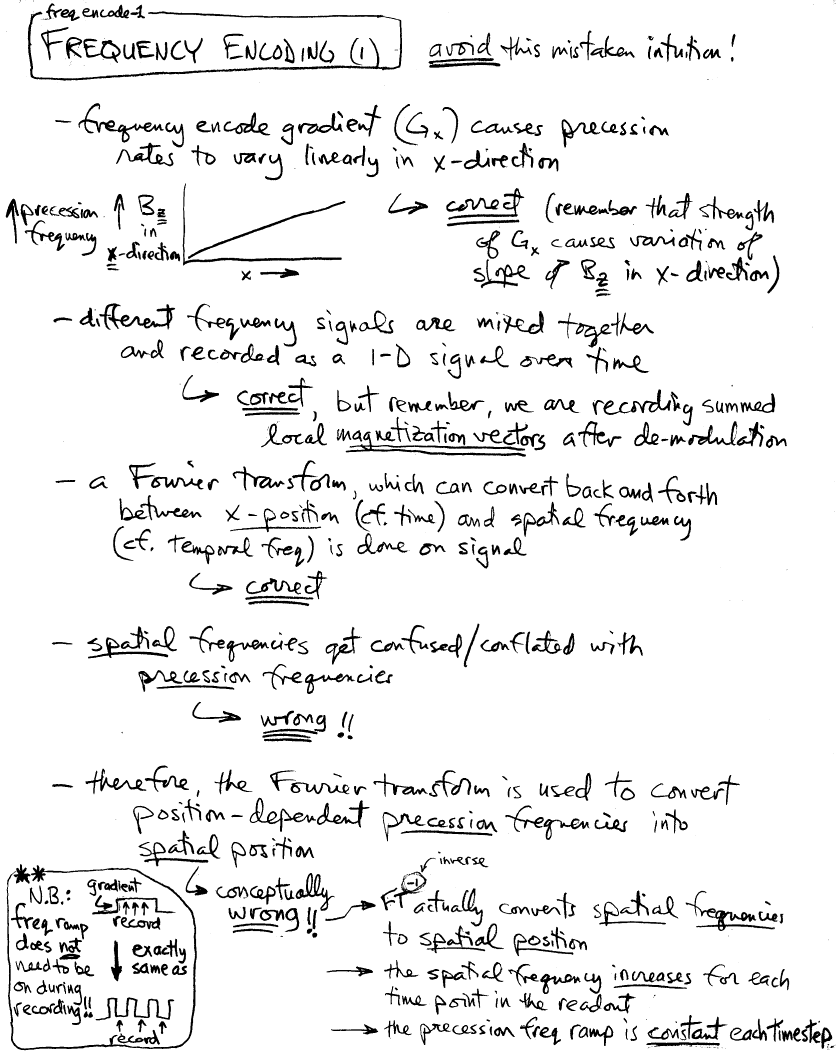

  • Frequency-Encoding—Avoid This Intuition

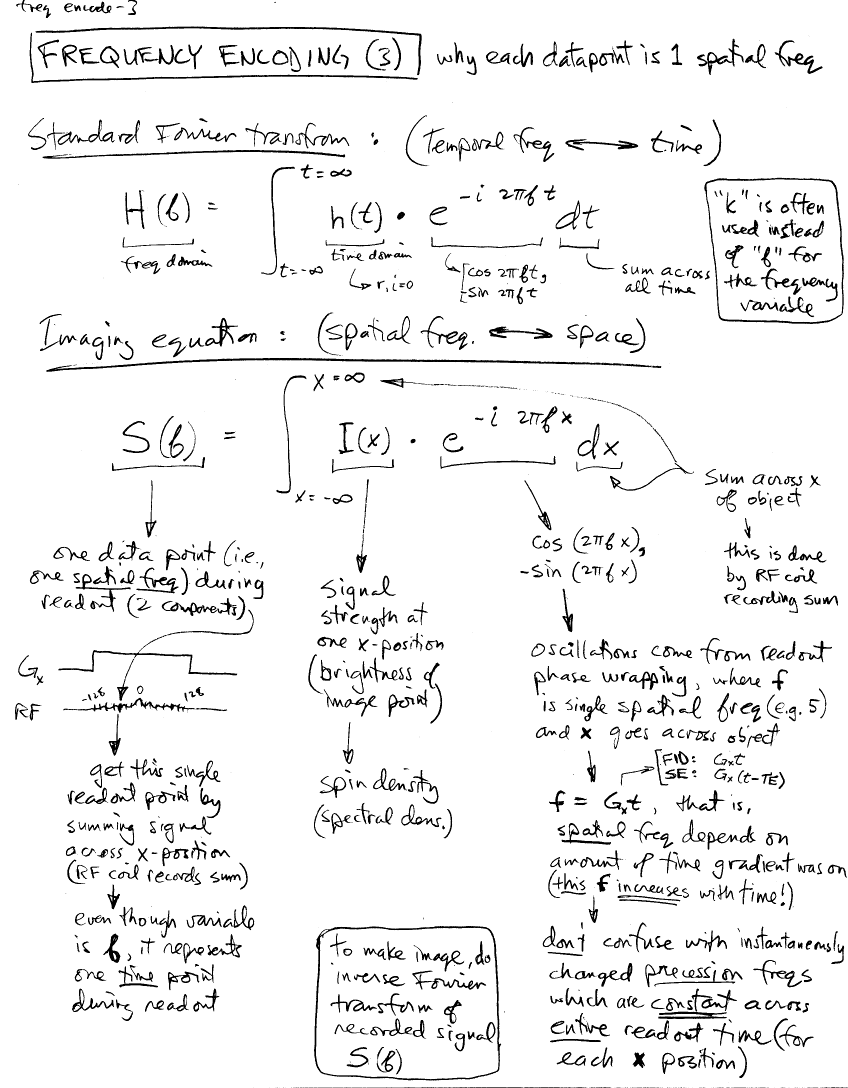

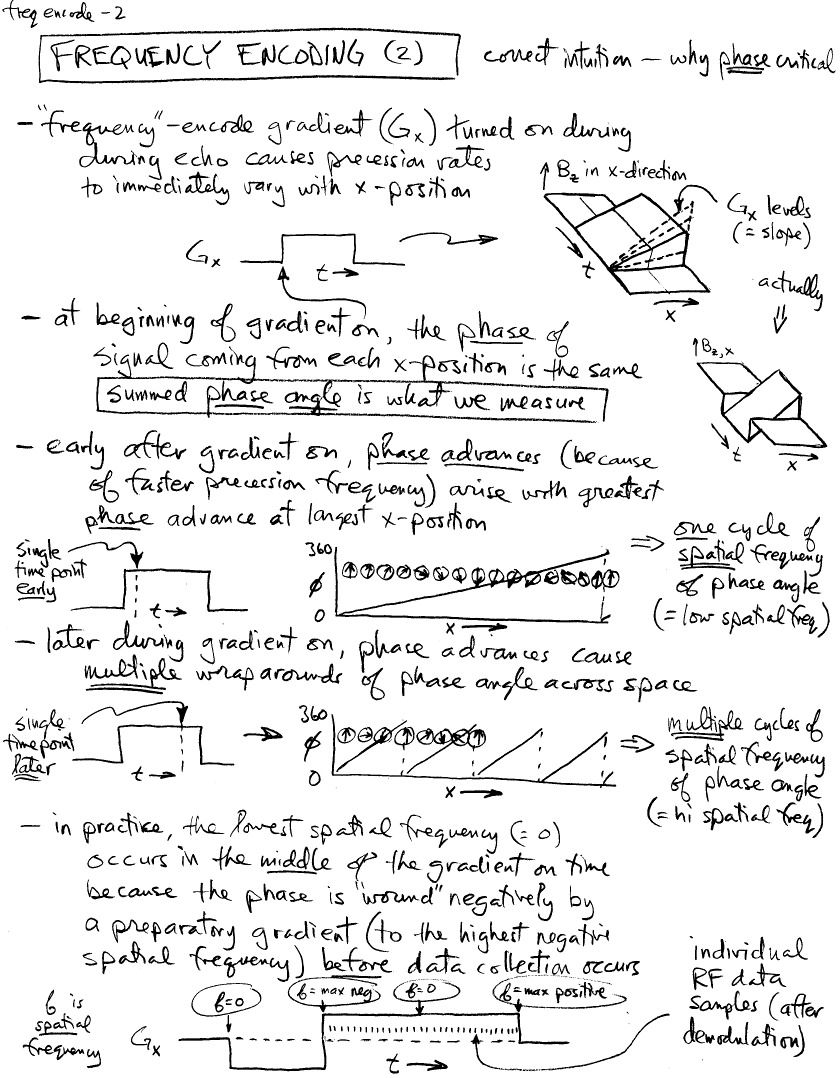

  • Frequency-Encoding—Correct Intuition (=Phase-Encoding)

    Week of Oct 15 (Mon/Wed/Fri) — MRI Image Formation
  • 1st Take-Home Due
  • Imaging Equation (1D)

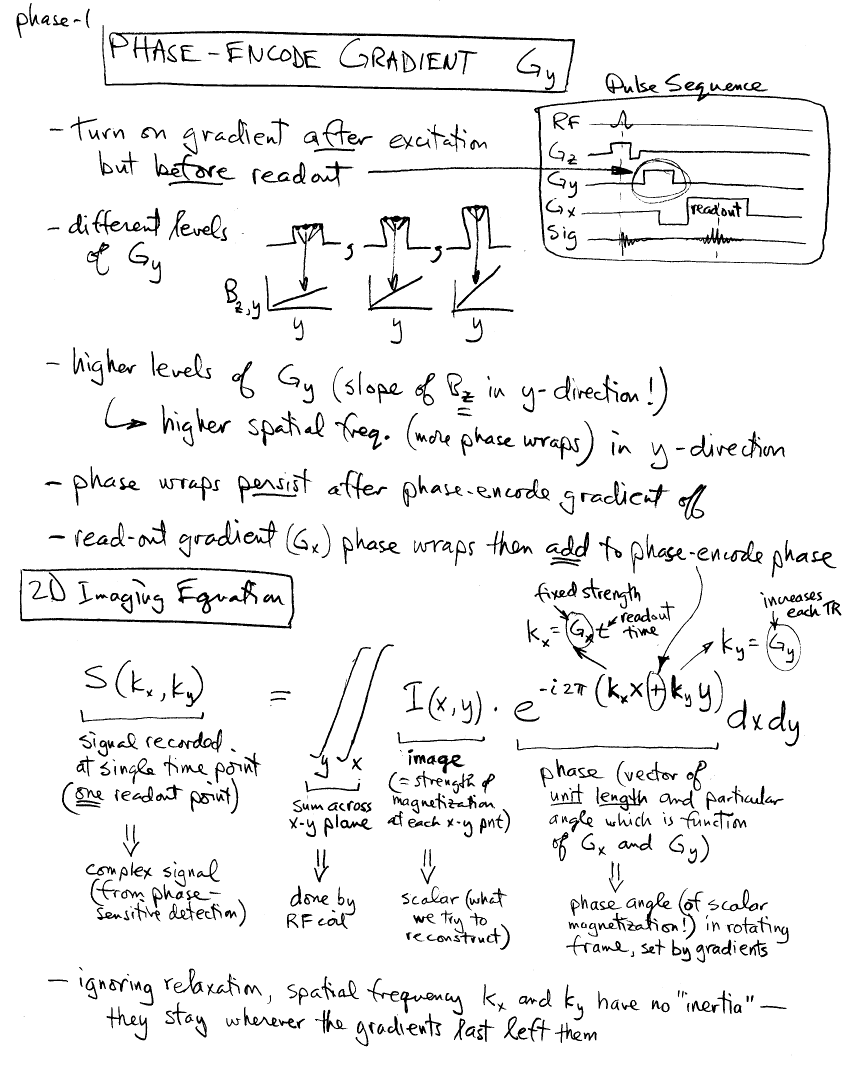

  • Phase Encoding

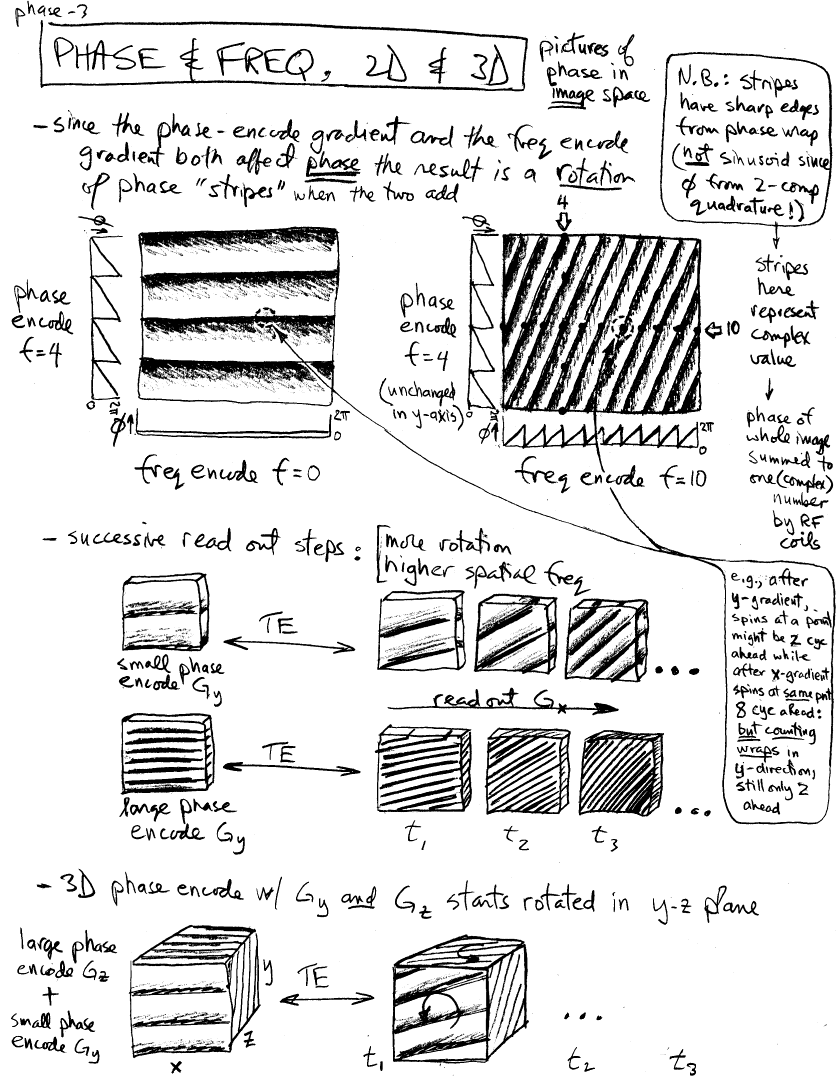

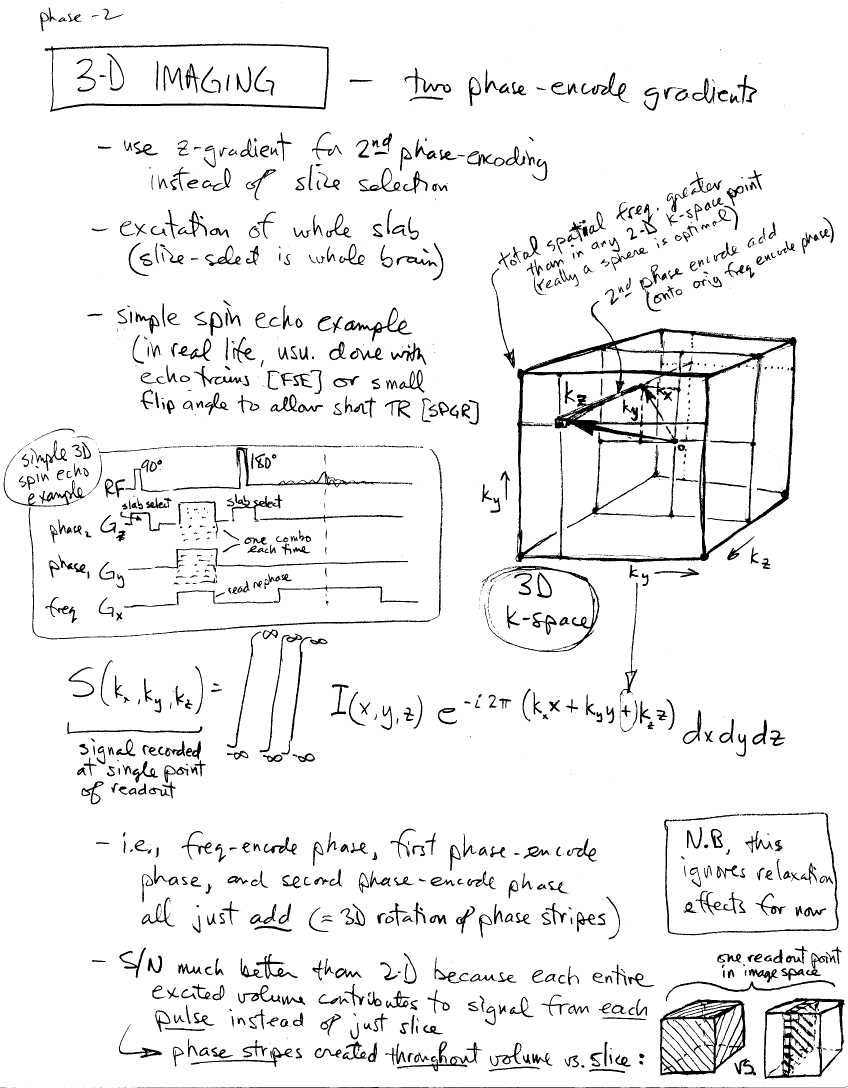

  • 3D Imaging (2nd Phase-Encode)
  • Spin Phase in Image Space

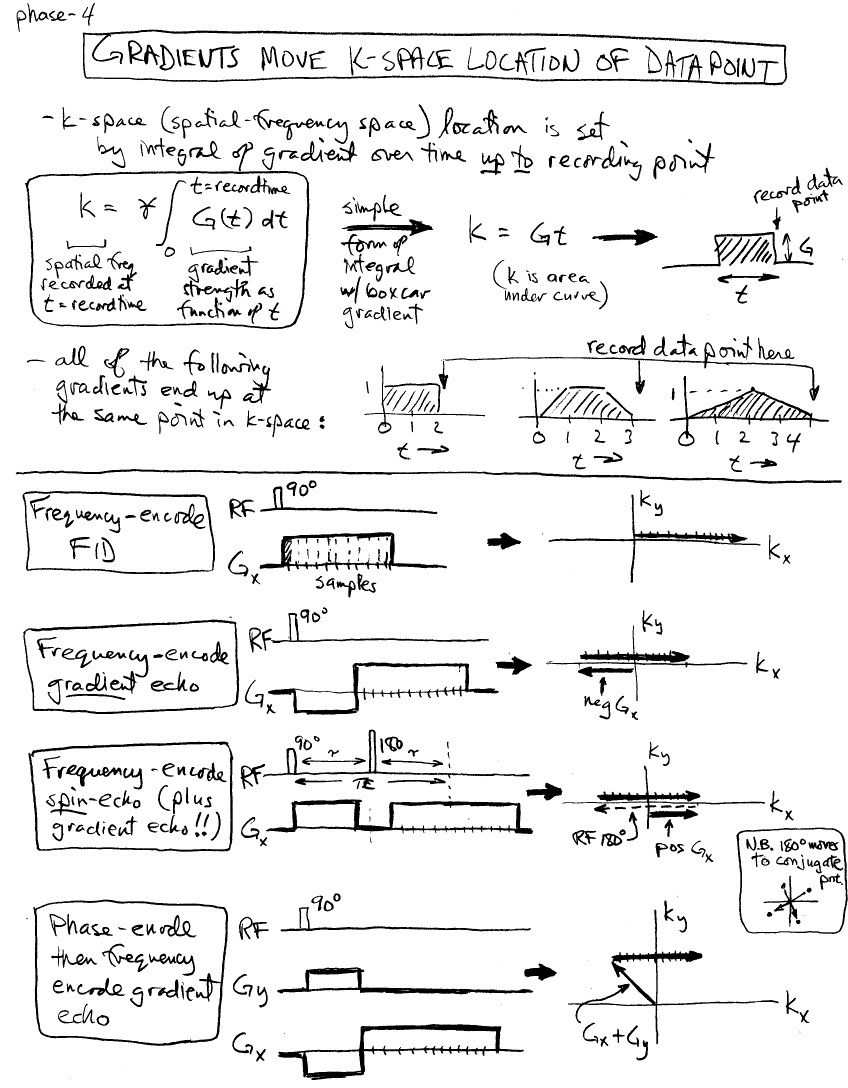

  • Gradients Move Signal in k-Space

    Week of Oct 22 (Mon/Wed/Fri) — Image Reconstruction
  • Image Space and k-space (311K MPEG, R.-S. Huang)

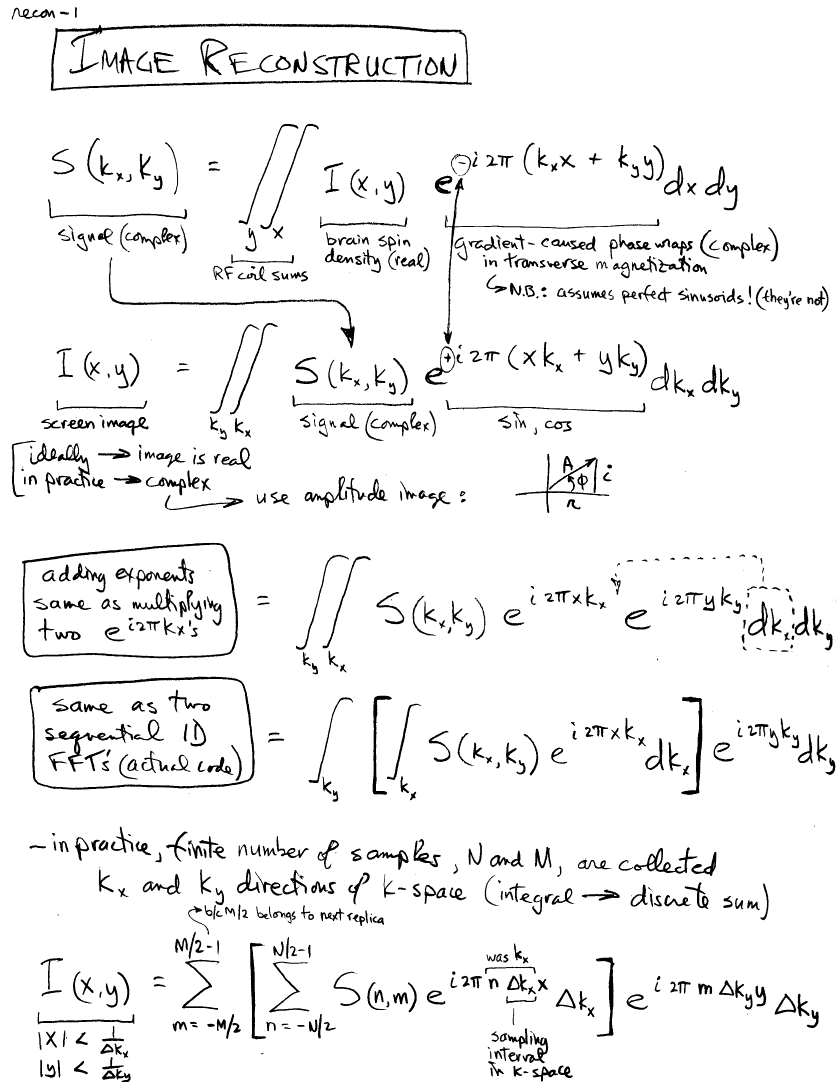

  • Image Reconstruction

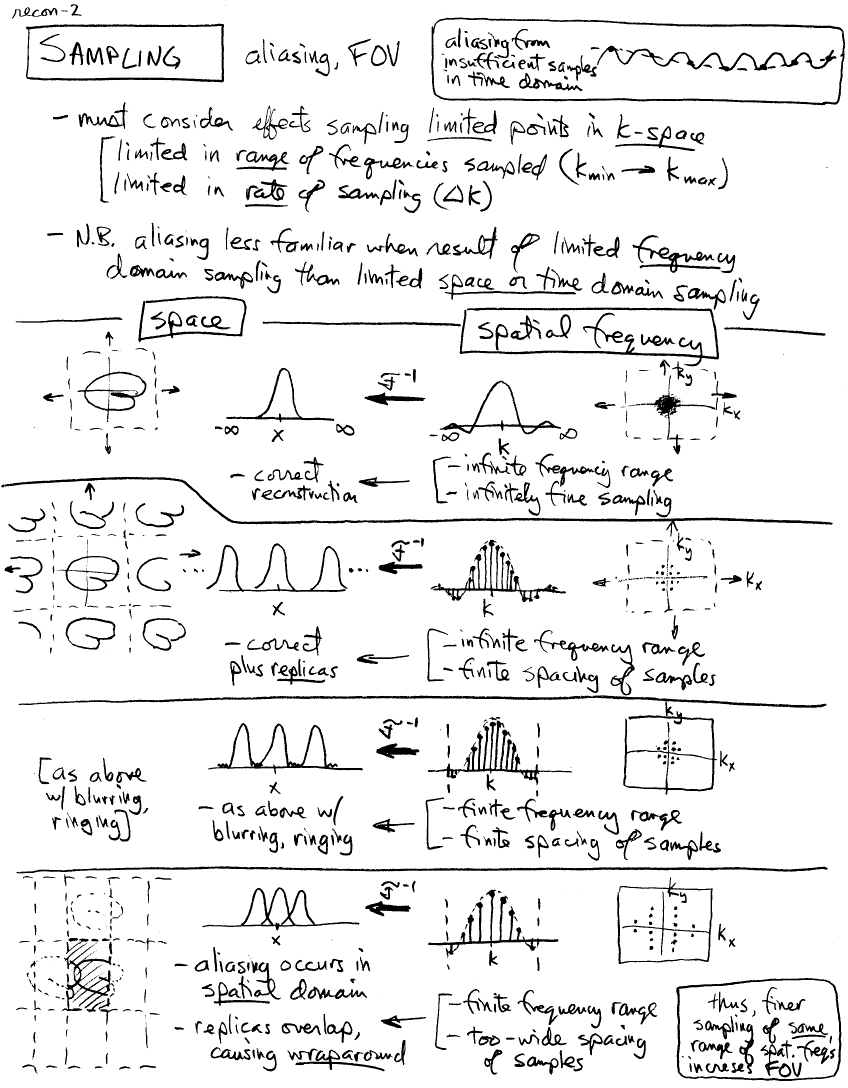

  • Aliasing and FOV

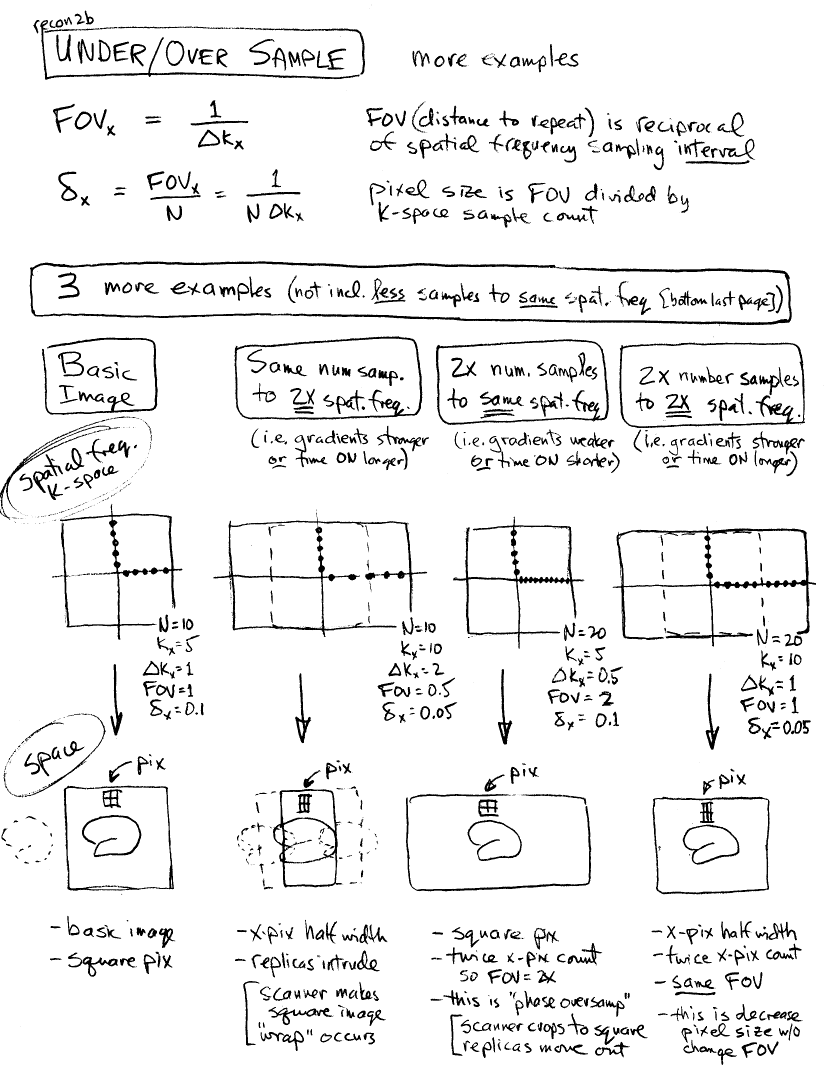

  • Under/Over Sample

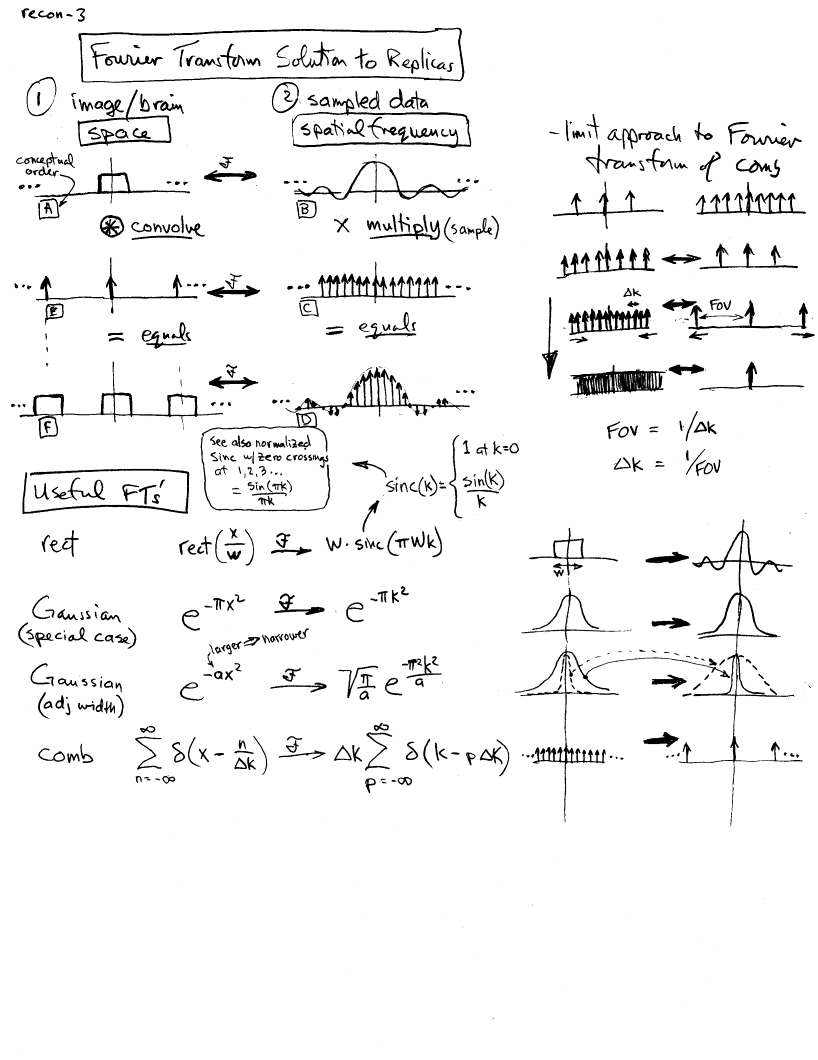

  • Replicas, FTs

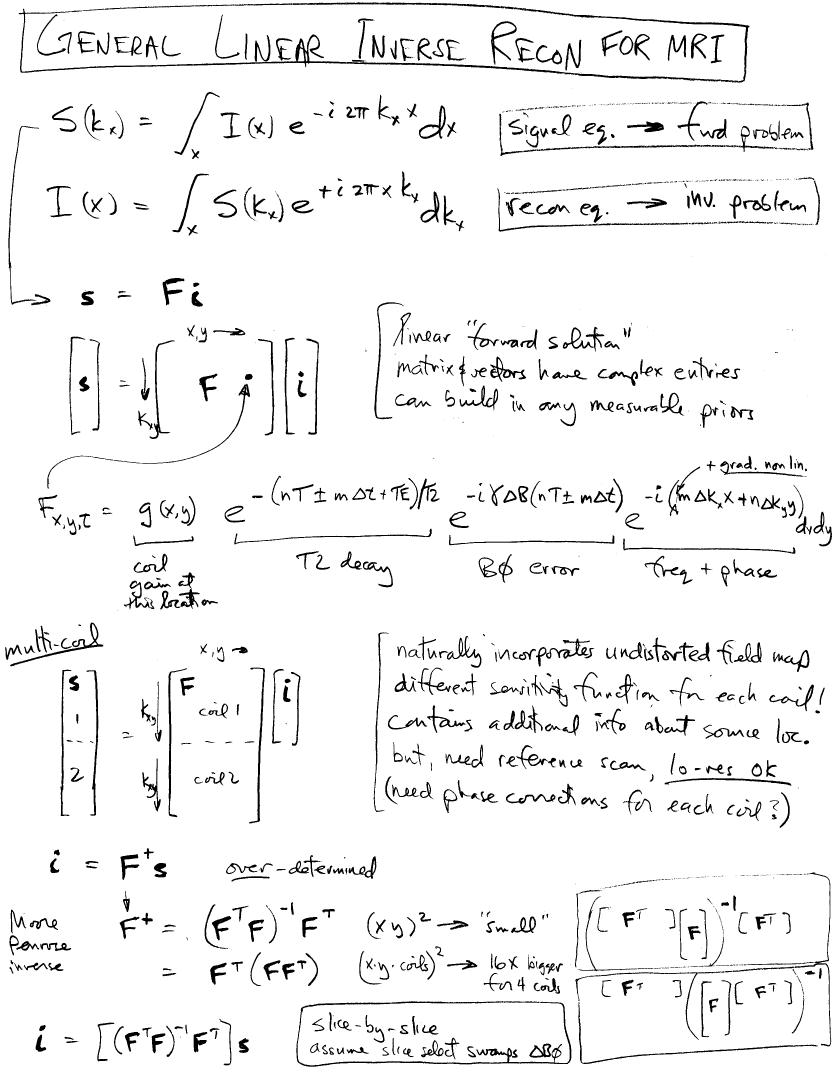

  • General Linear Inverse for MRI Reconstruction

    Week of Oct 29 (Mon/Wed/Fri) — Practical Pulse Sequences

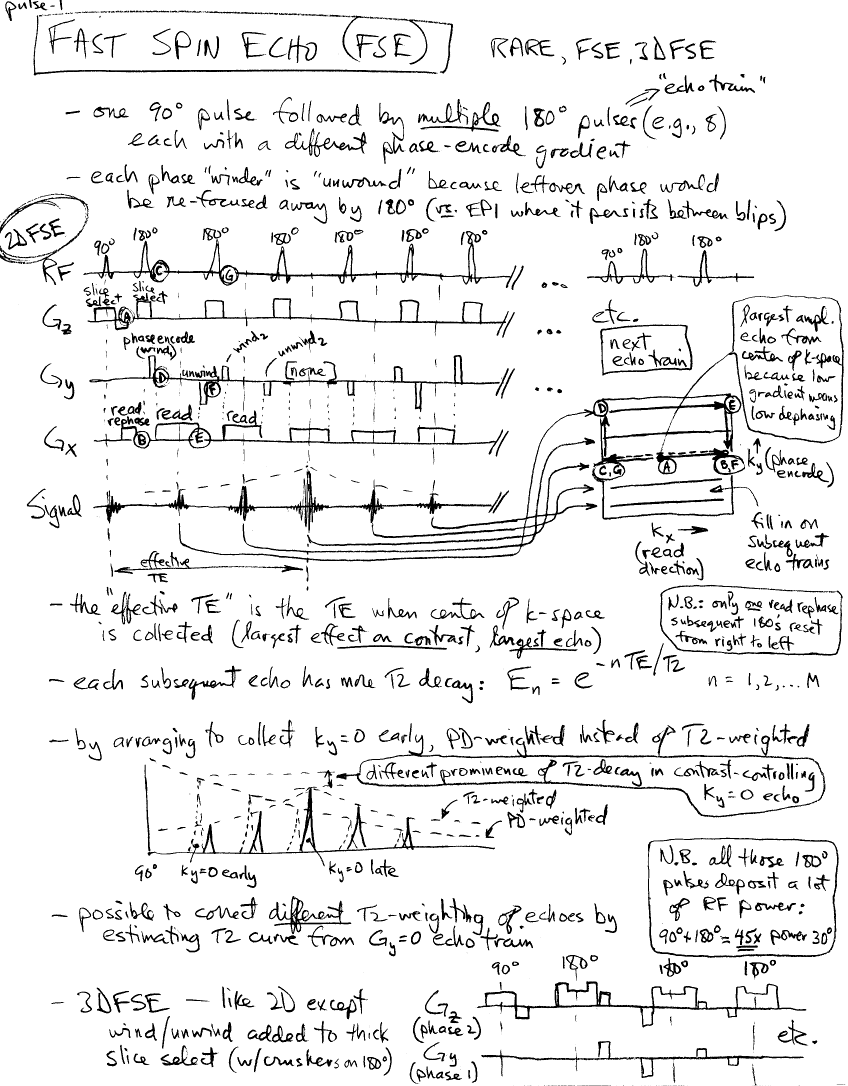

  • Fast Spin Echo

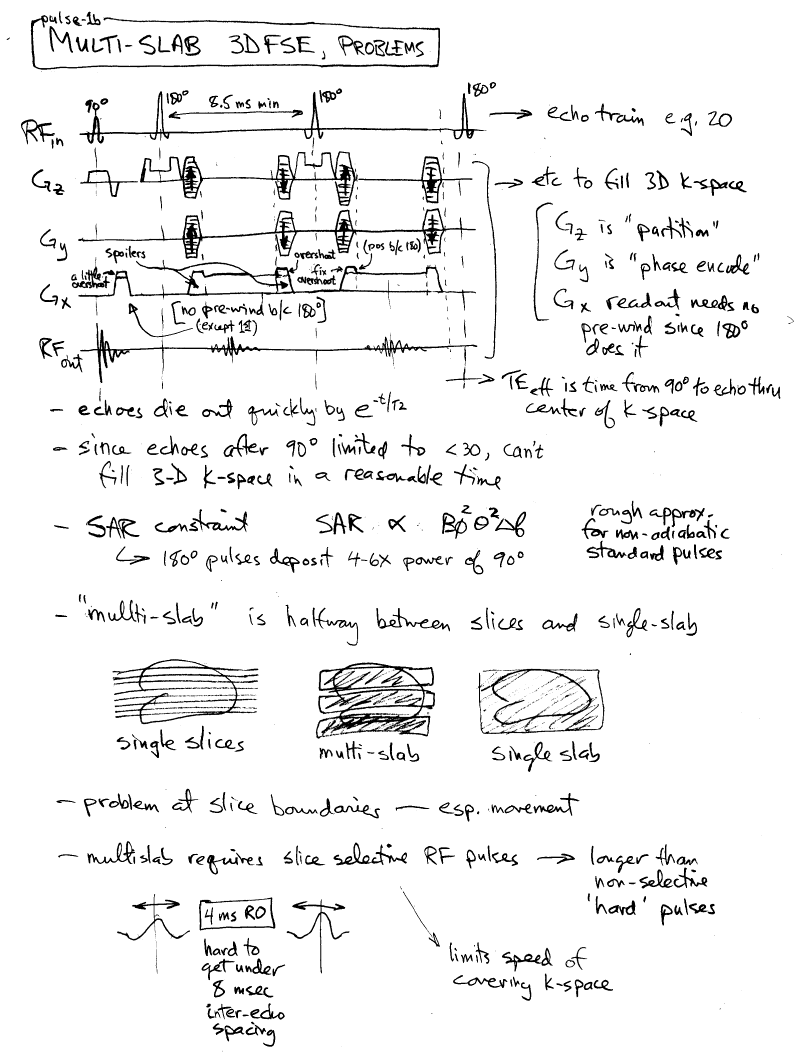

  • 3D Multi-Slab Fast Spin Echo

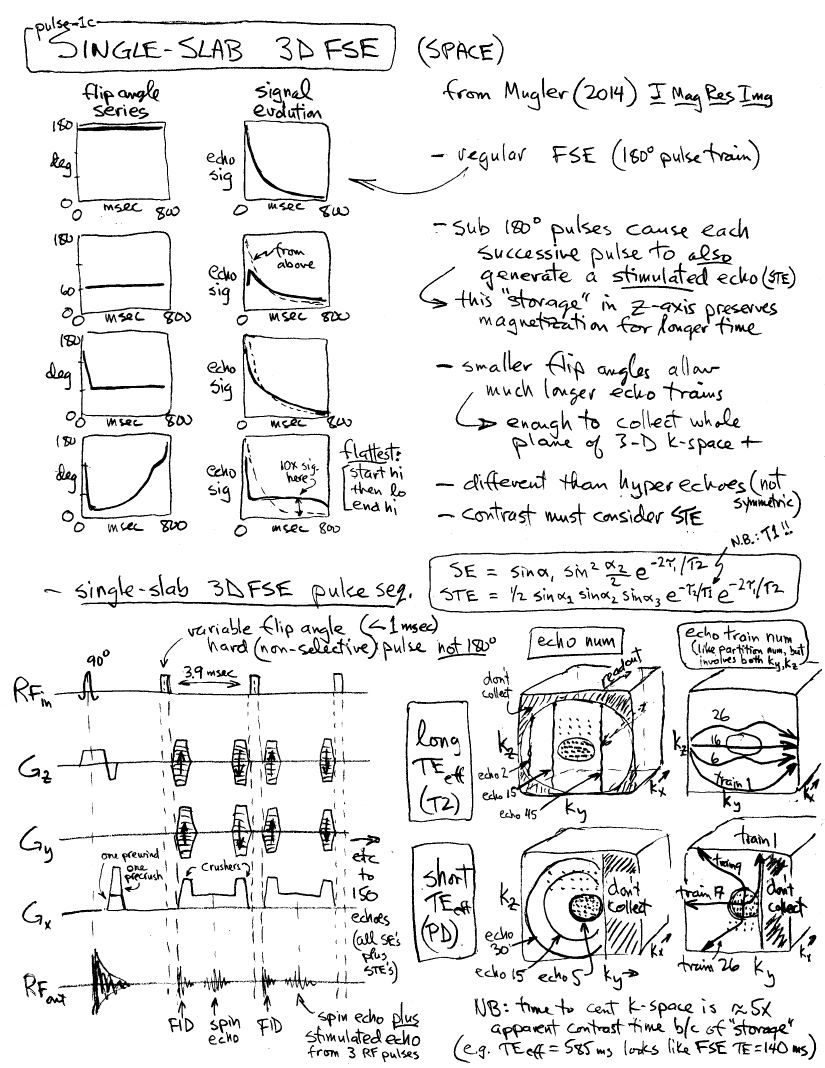

  • 3D Single-Slab Fast Spin Echo (SPACE)

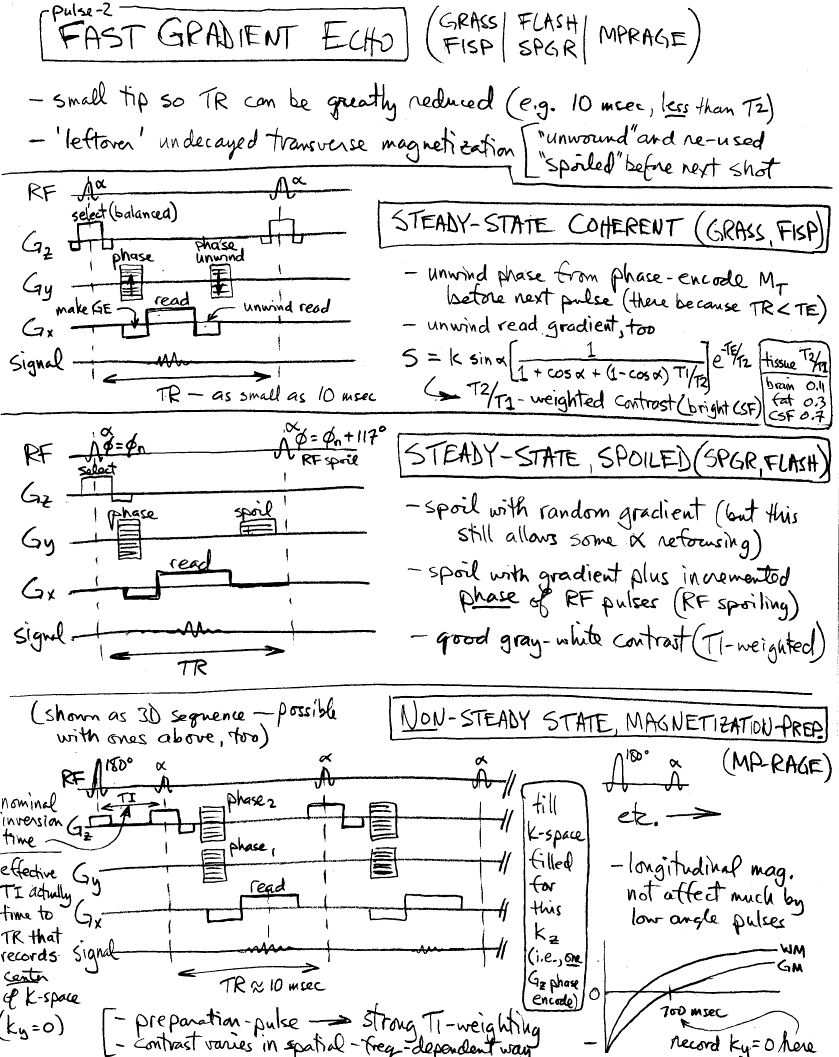

  • Fast Gradient Echo

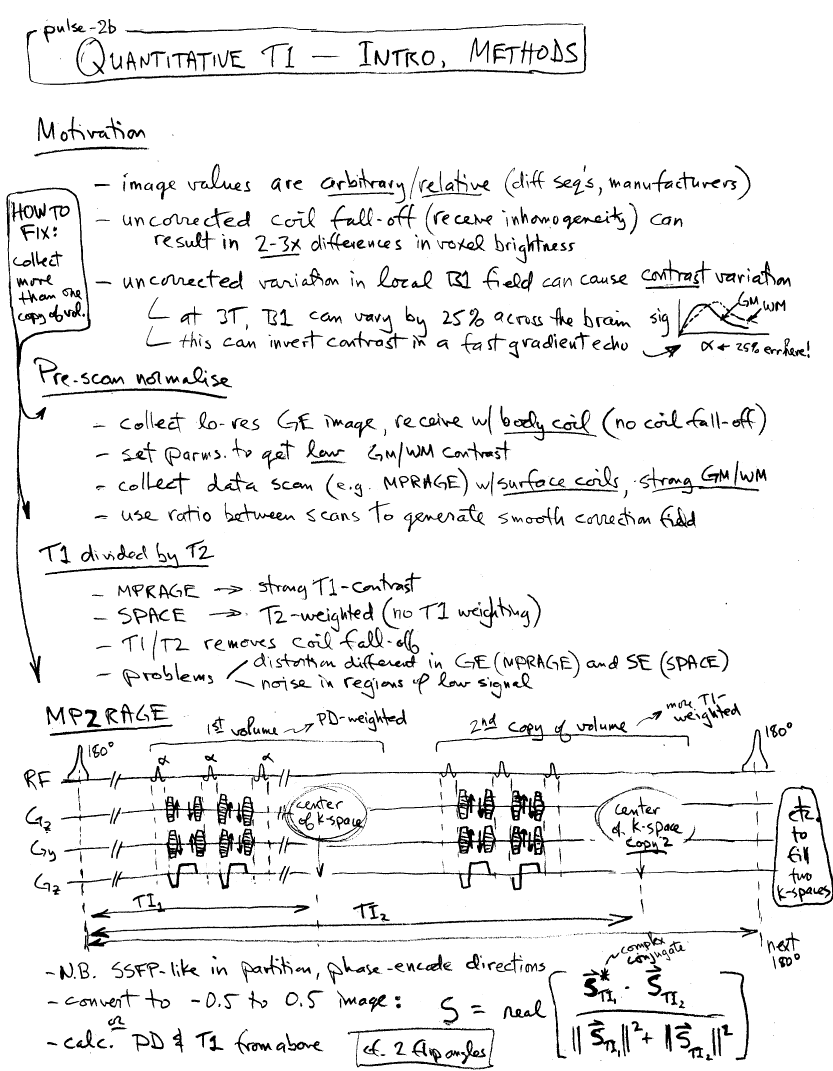

  • Quantitative T1 (2-Flip-Angle Method)

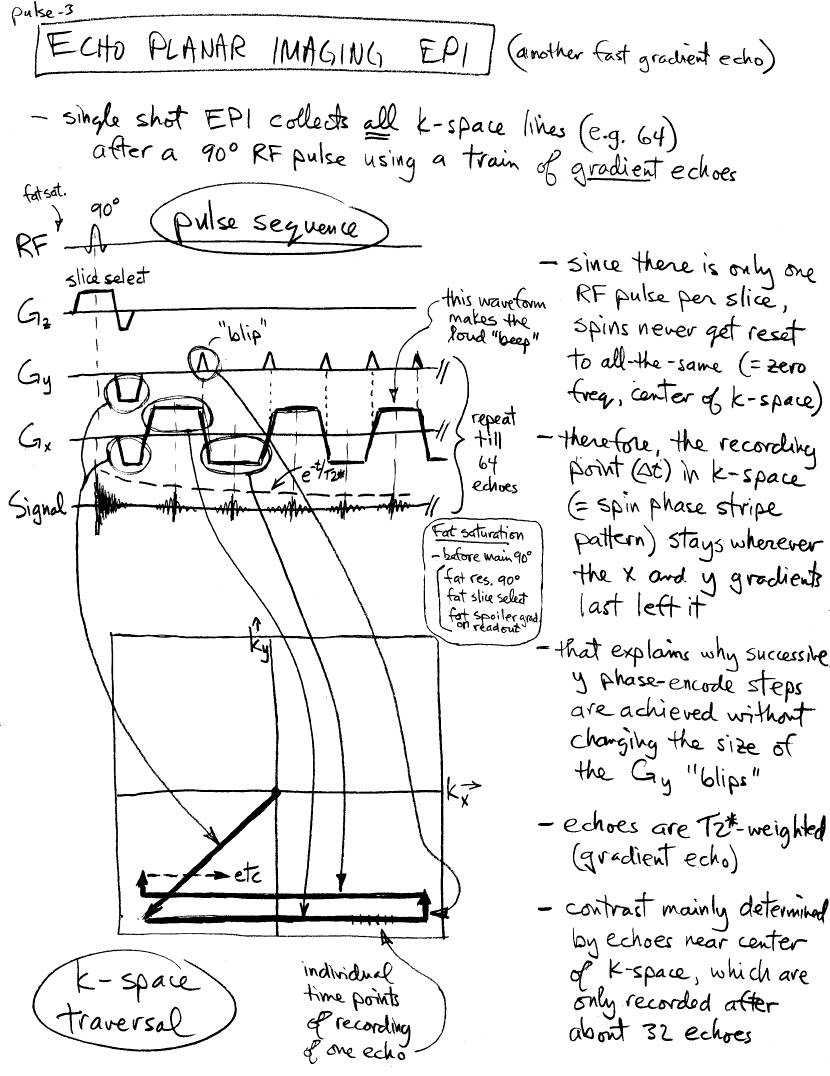

  • Gradient Echo EPI

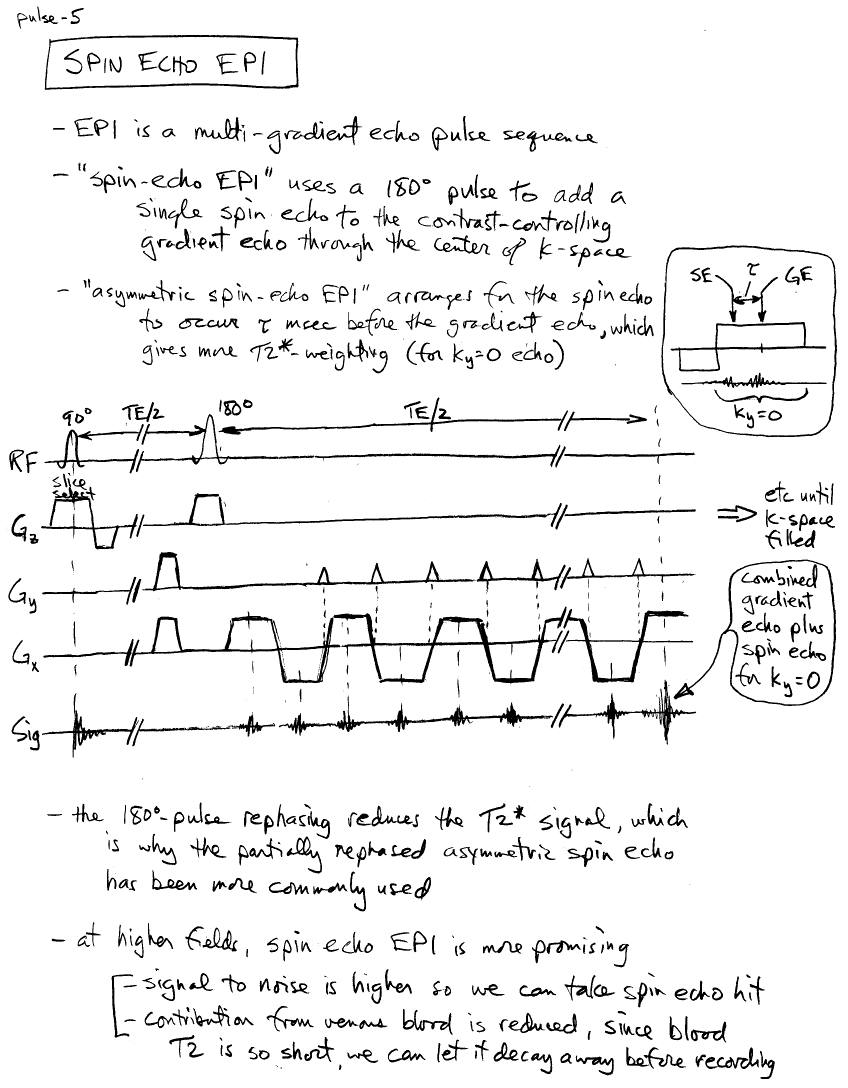

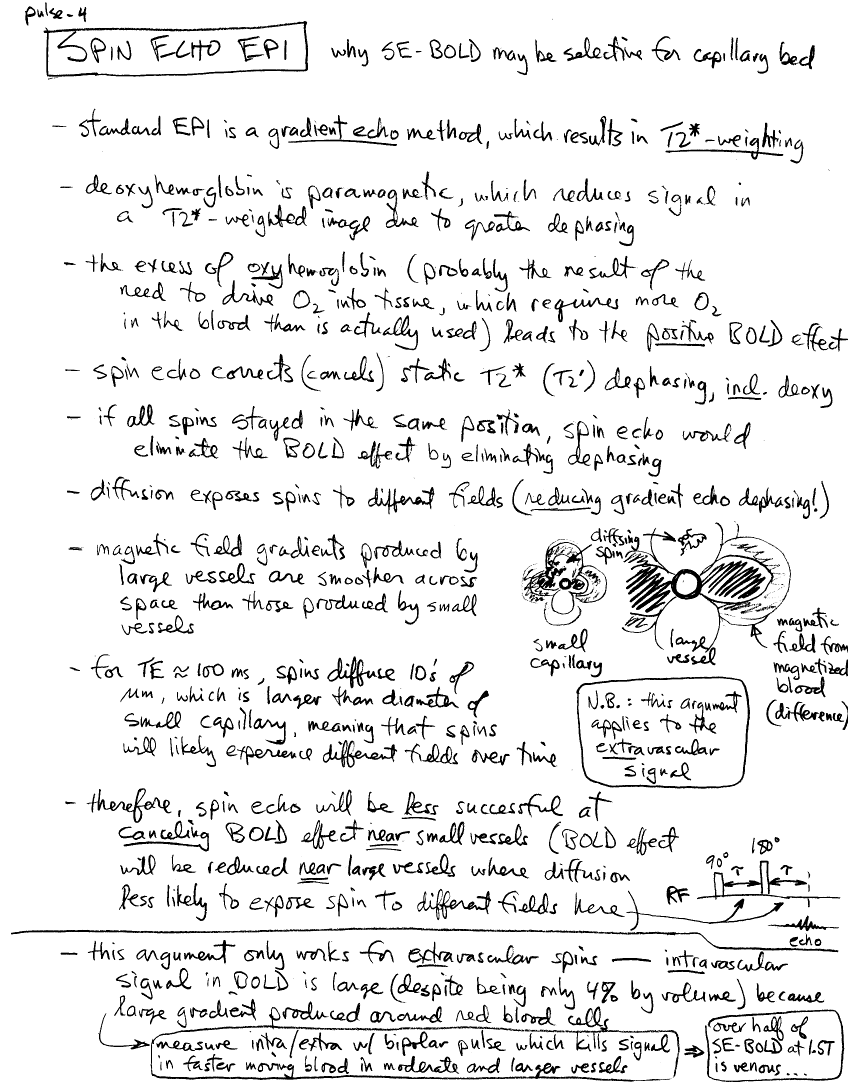

  • Spin Echo EPI
  • Spin Echo Size Selectivity

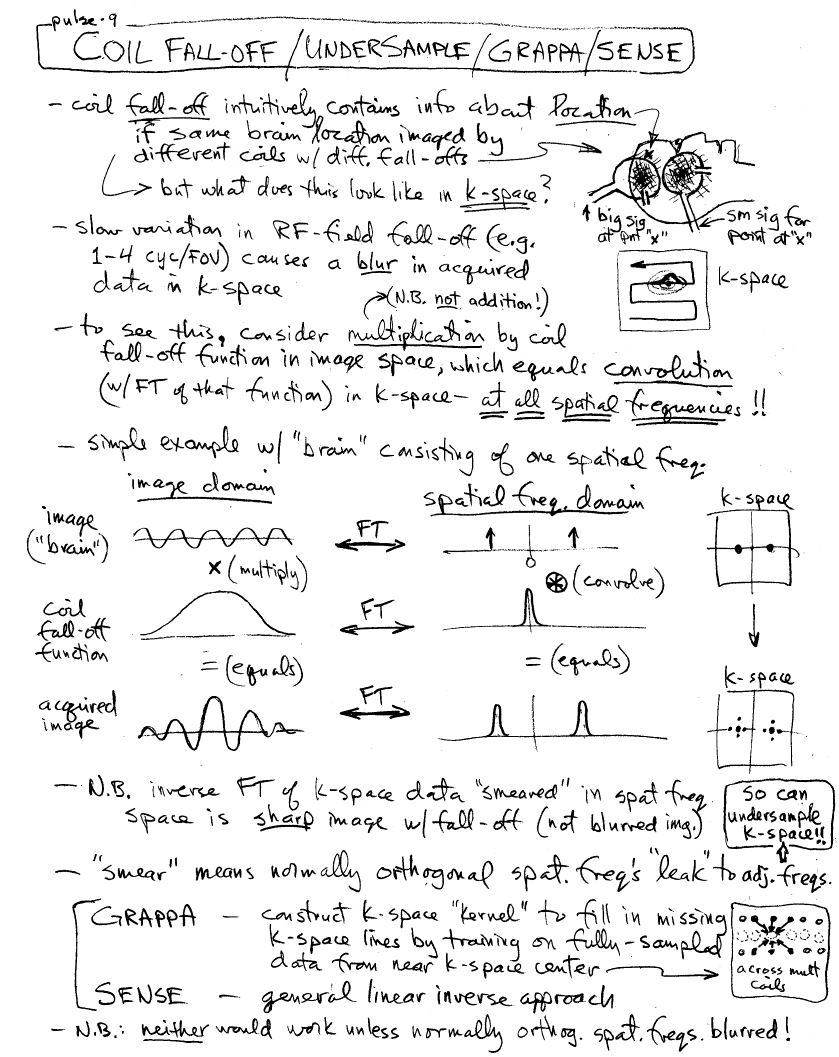

  • Coil Fall-Off, Undersampling, GRAPPA, SENSE

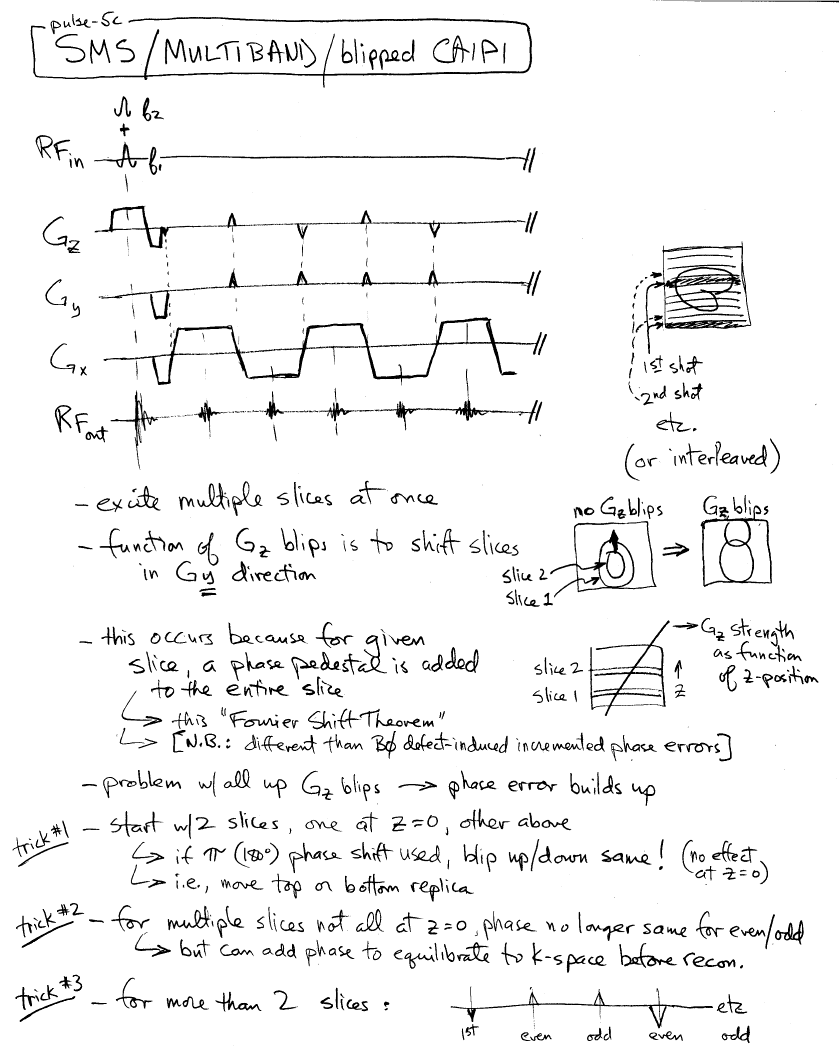

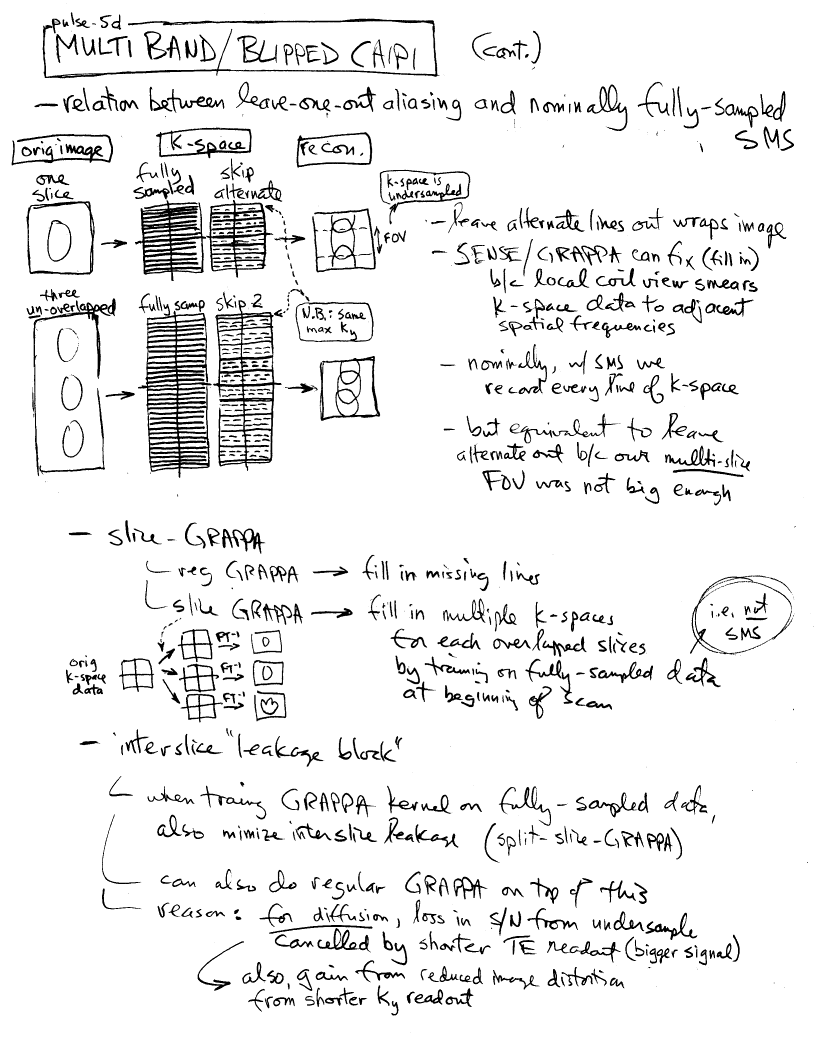

  • Simultaneous Multi-Slice (blipped CAIPI)
  • SMS cont.: slice-GRAPPA, split-slice-GRAPPA

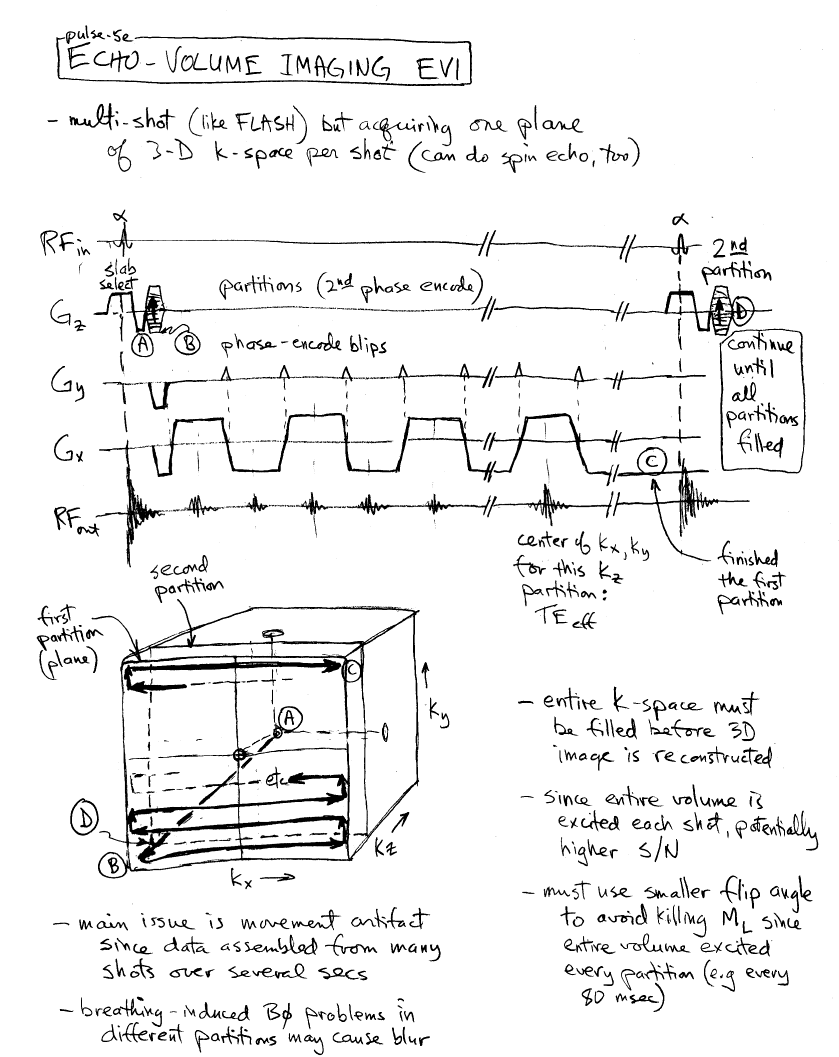

  • 3D Echo Volume Imaging

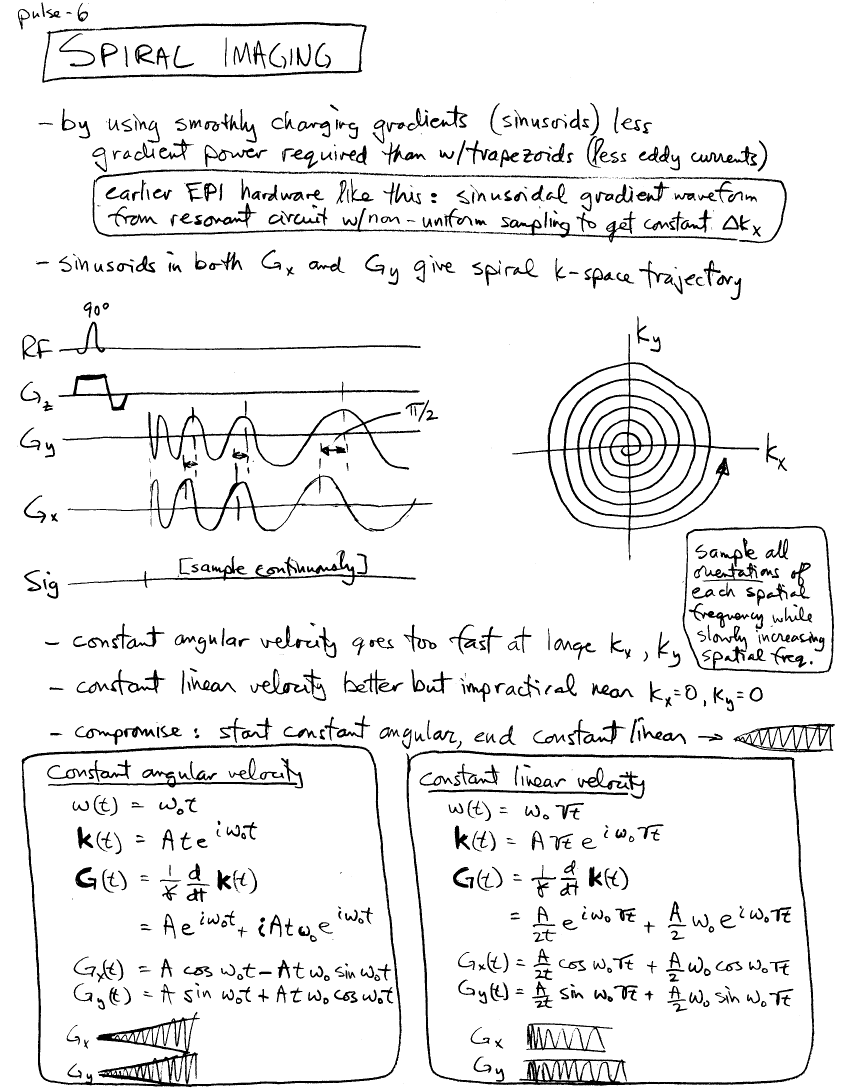

  • Single-Shot Spiral

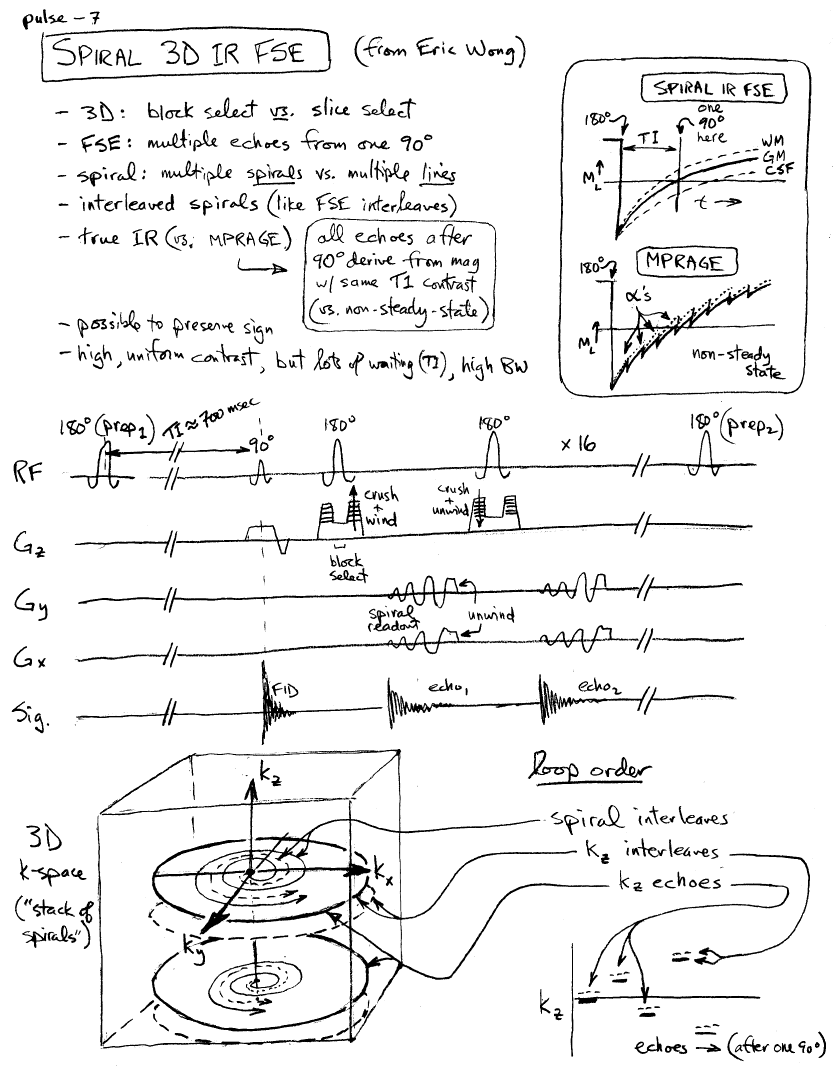

  • 3D Spiral Inversion-recovery FSE

    Week of Nov 05 (Mon/Wed/Fri) — Image Artifacts

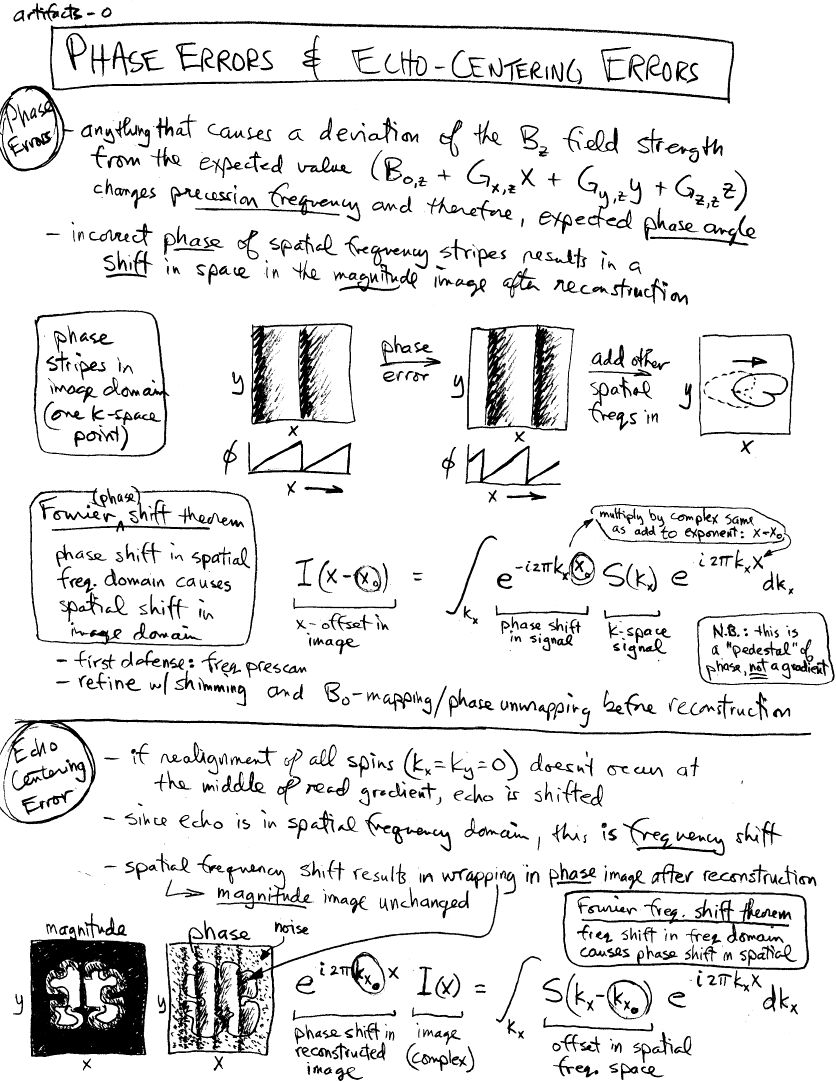

  • Fourier Shift Artifacts

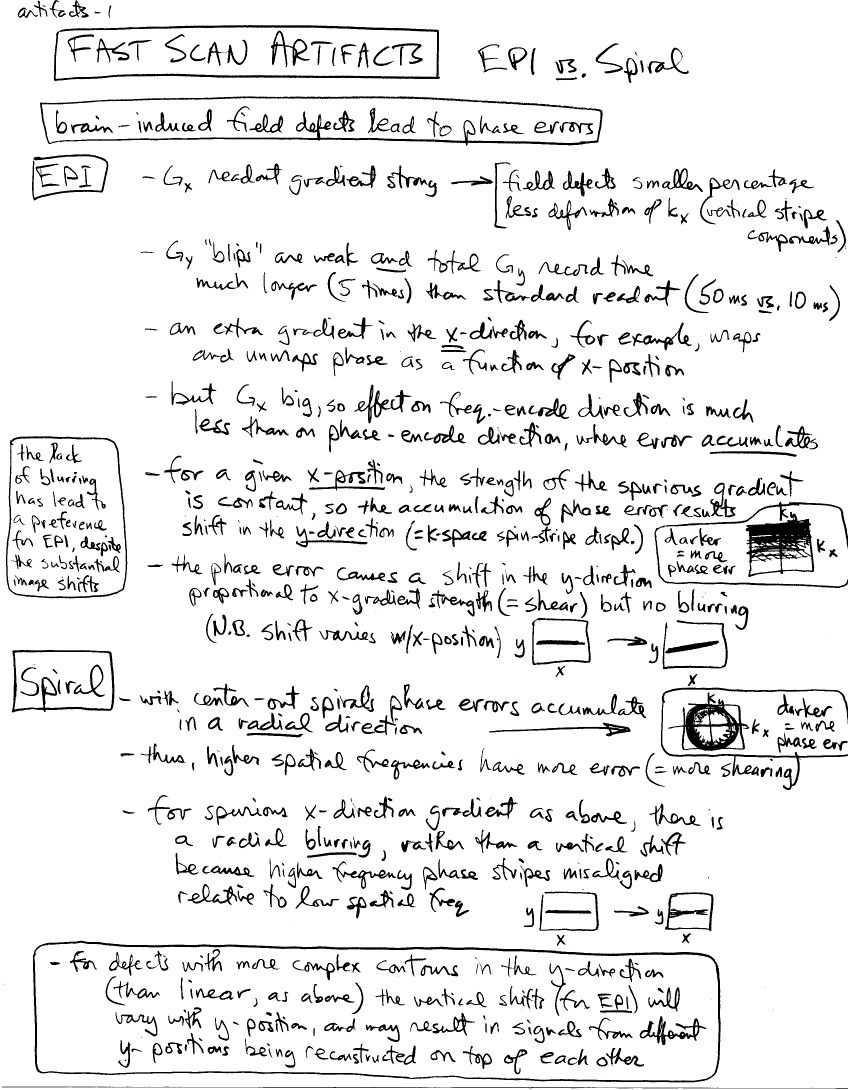

  • EPI vs. Spiral Artifacts

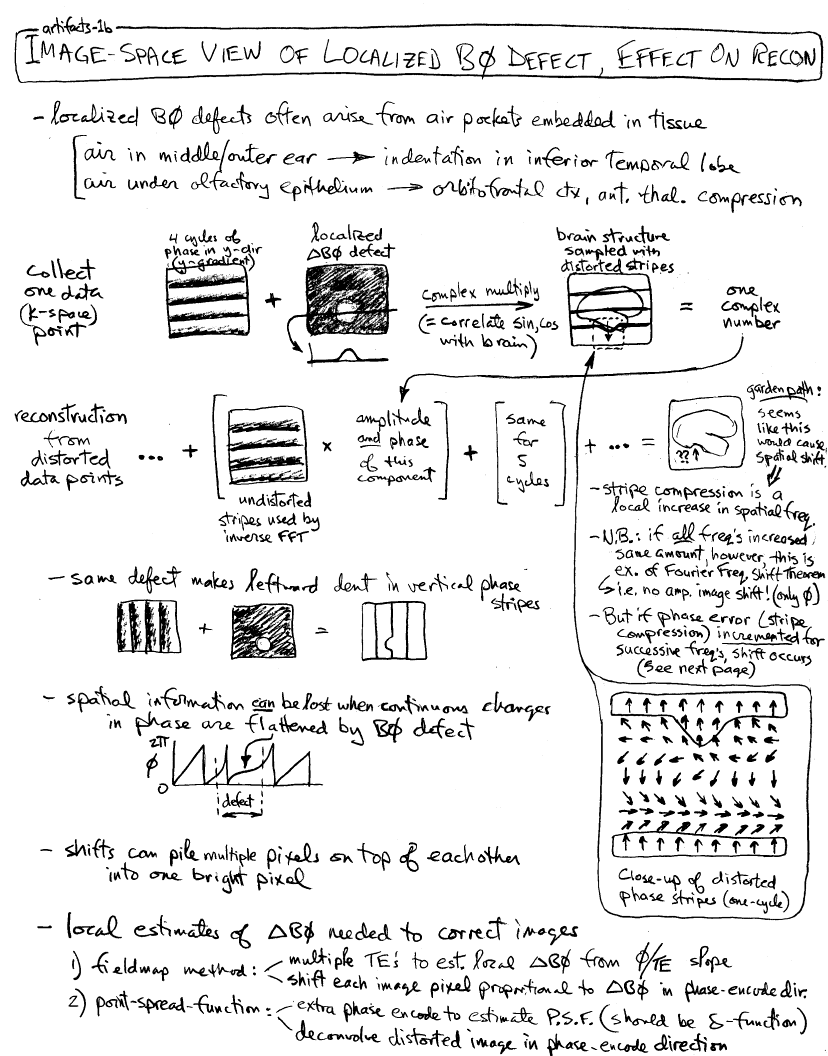

  • Image-space View Localized B0 Defect

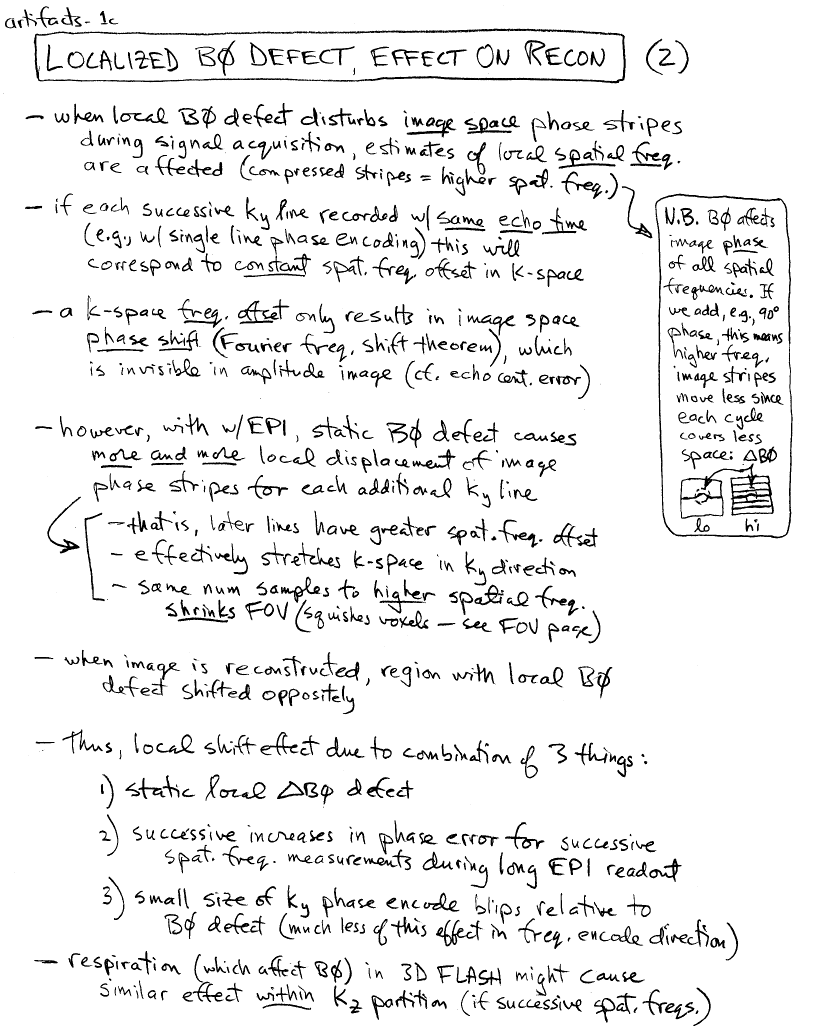

  • Effect Local B0 Defect on Reconstruction

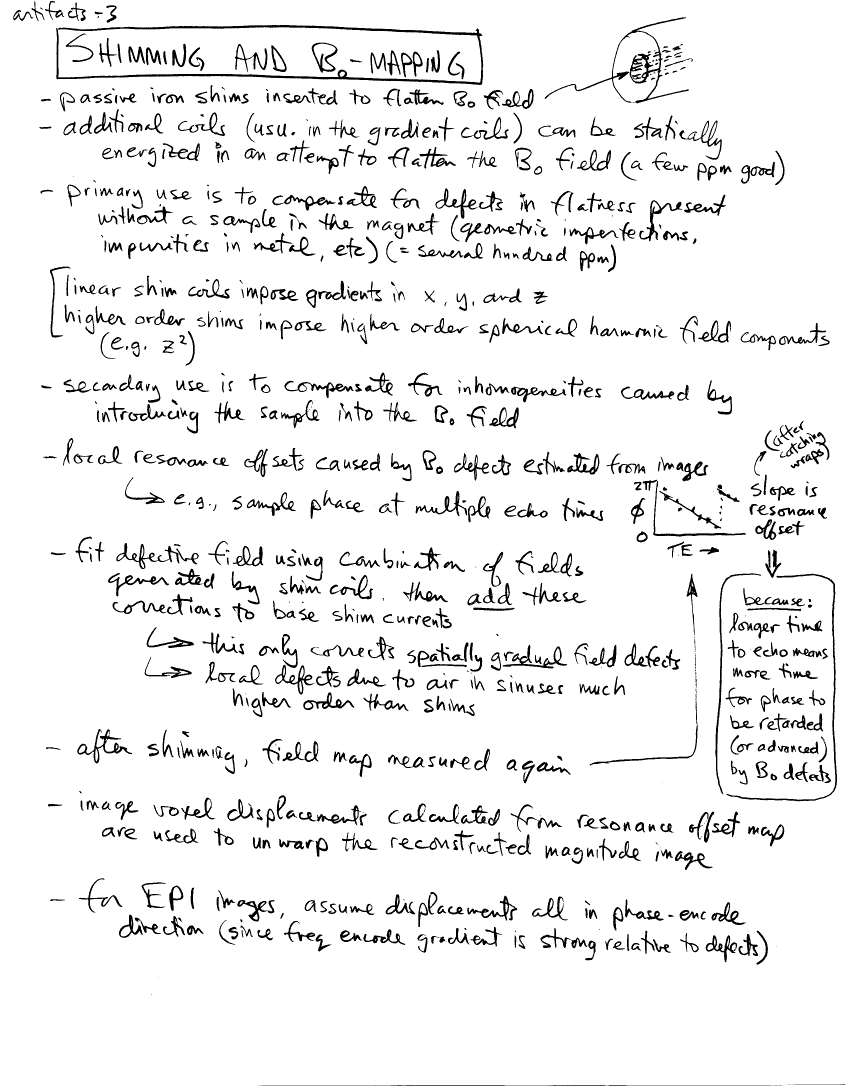

  • Shimming and B0-Mapping

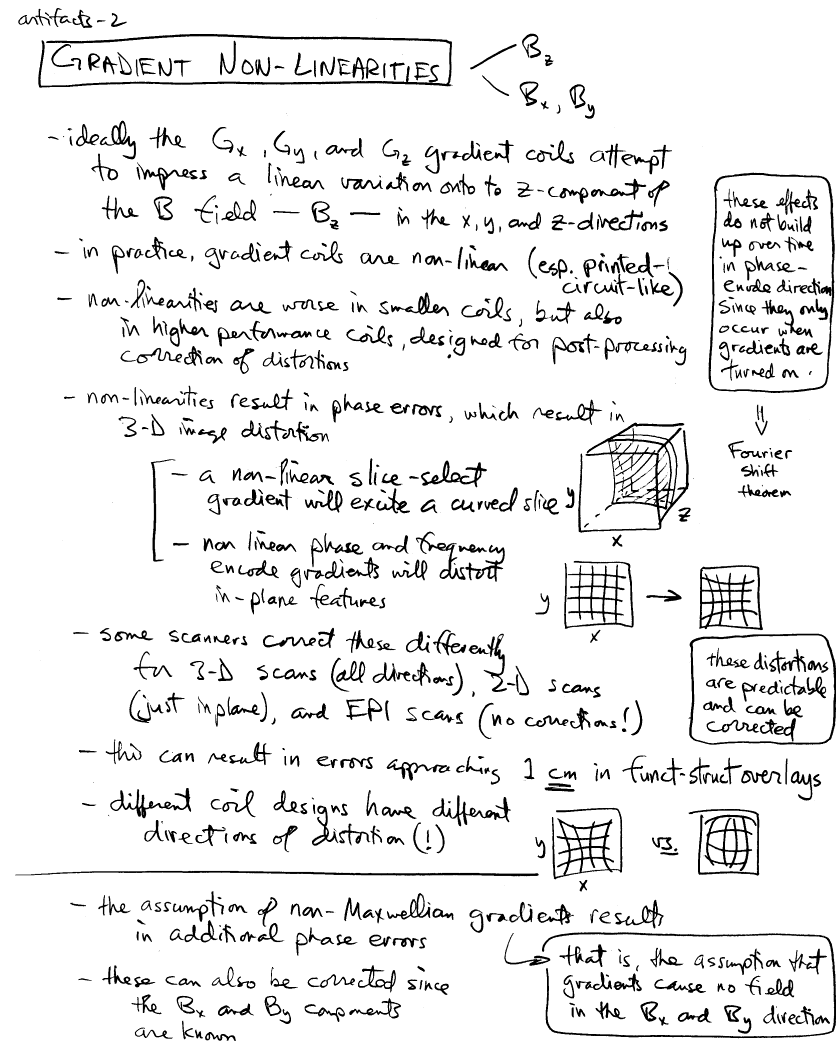

  • Gradient Non-linearities

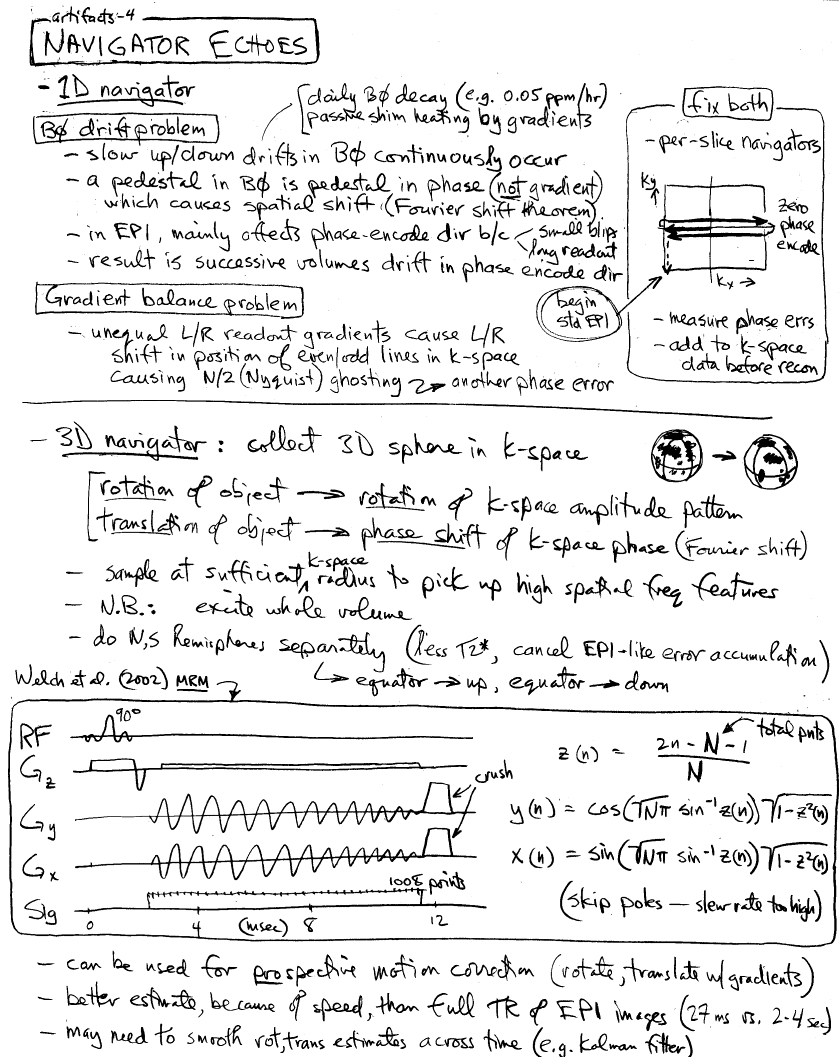

  • Motion-detection with Navigator Echoes

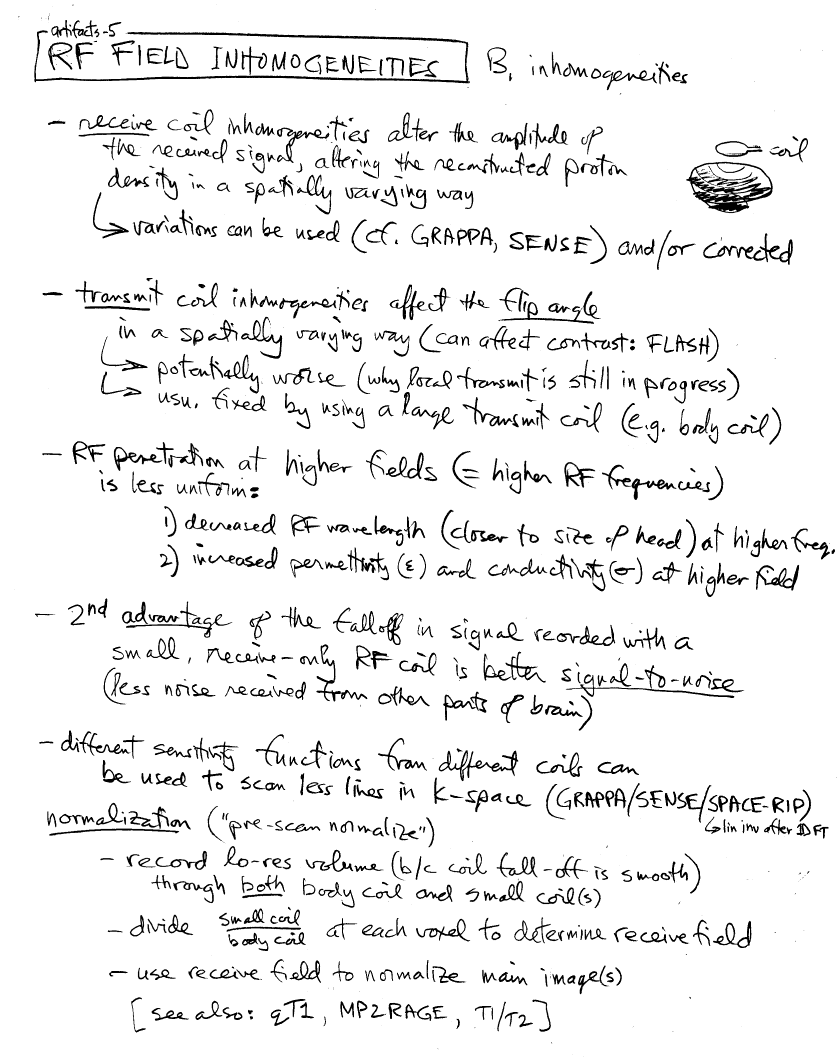

  • RF Field Inhomogeneities

    Week of Nov 12 (Wed/Fri) — Diffusion and Perfusion Imaging
  • [no class Mon, Nov 12]

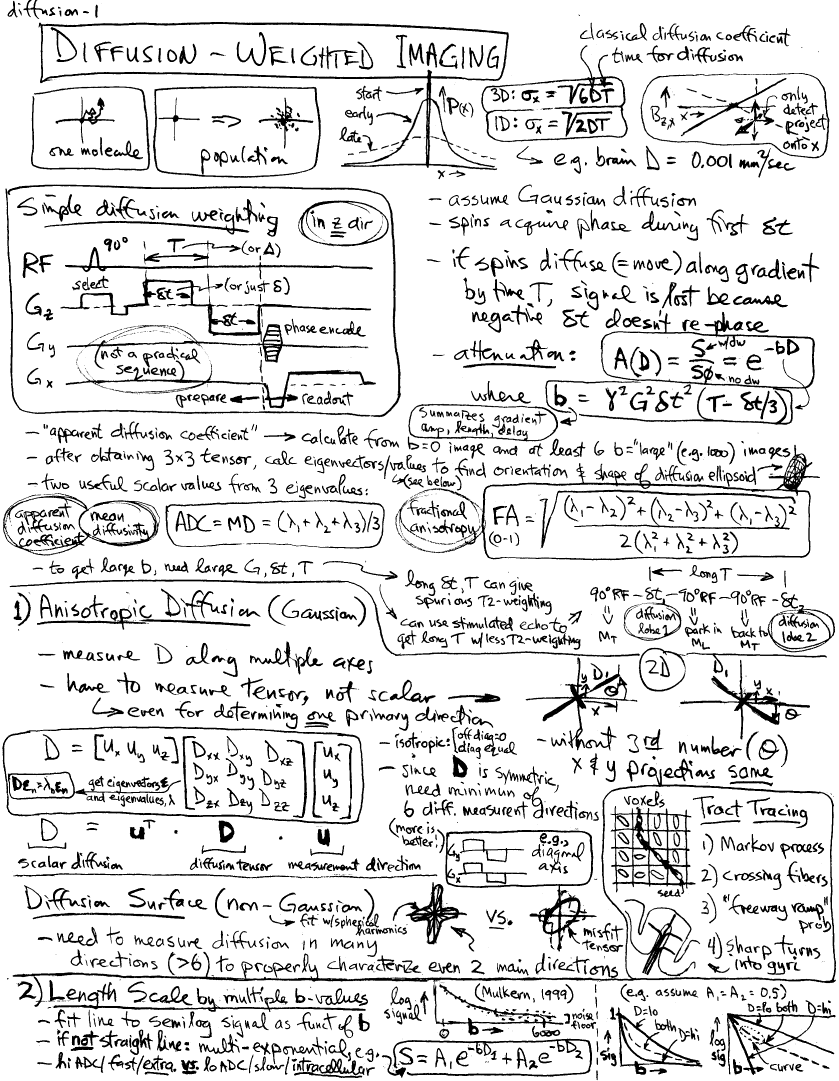

  • Diffusion-Weighted Imaging and Tract Tracing

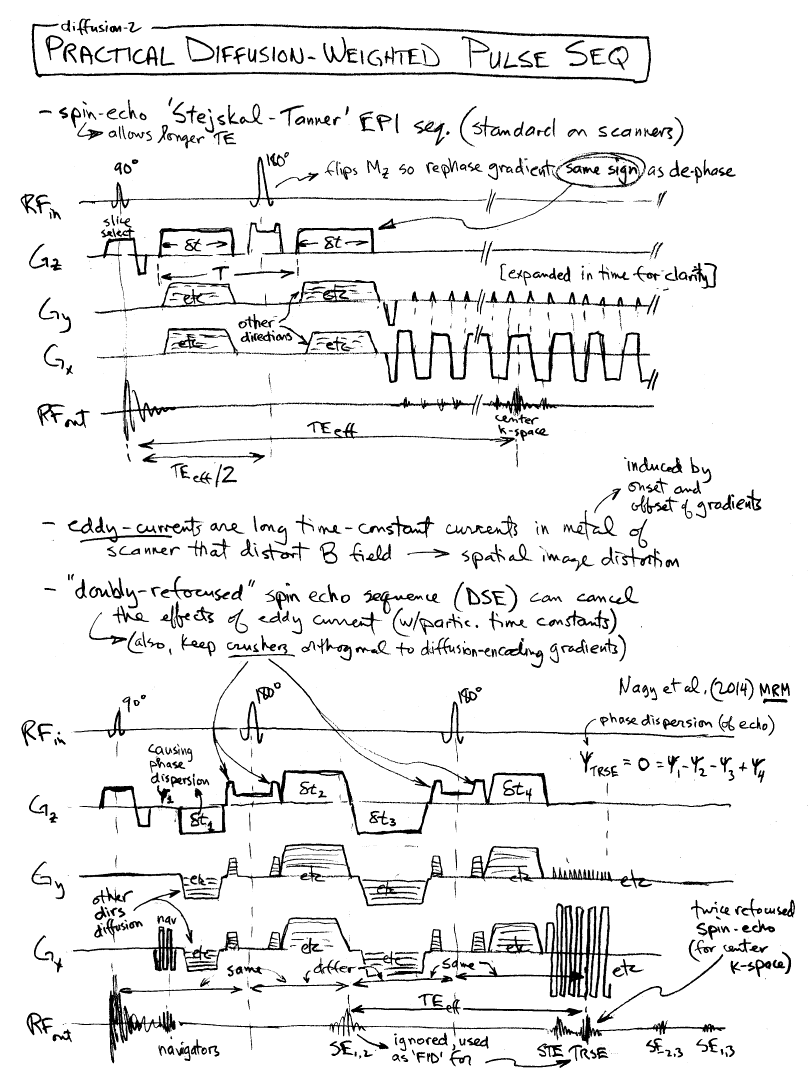

  • Practical Diffusion-Weighted Sequences

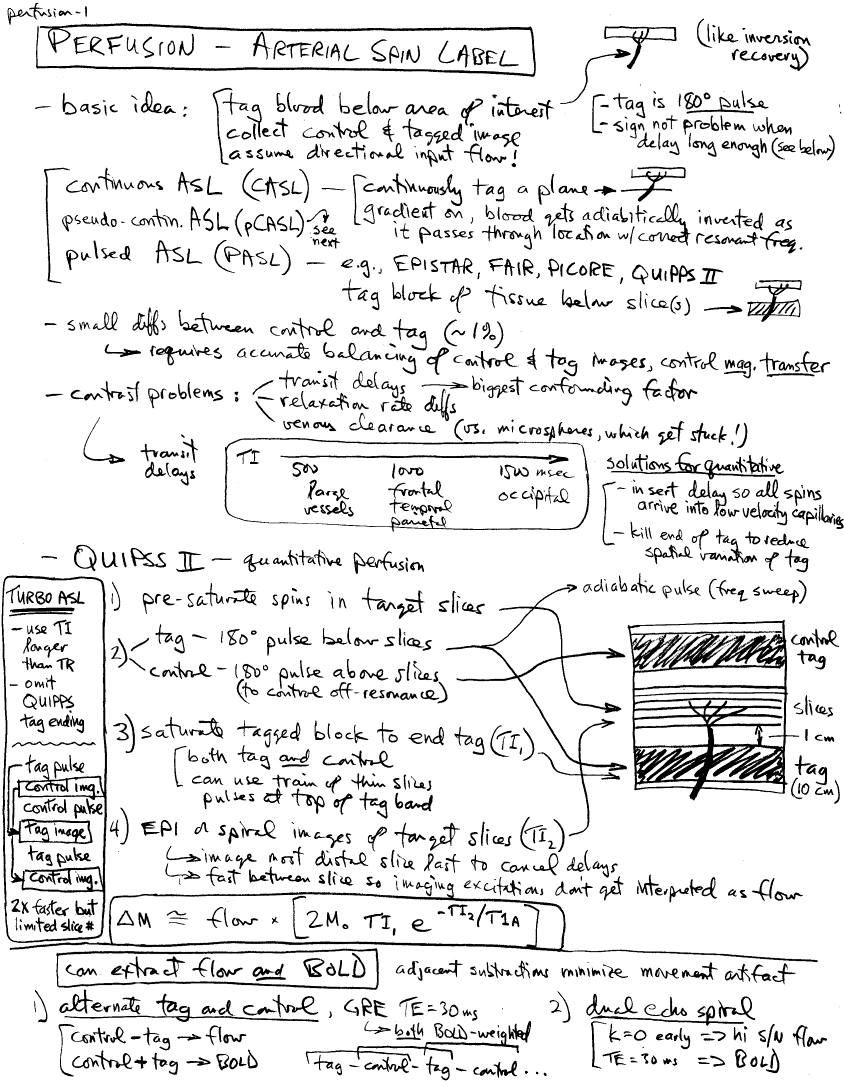

  • Perfusion Imaging (Arterial Spin Labeling)

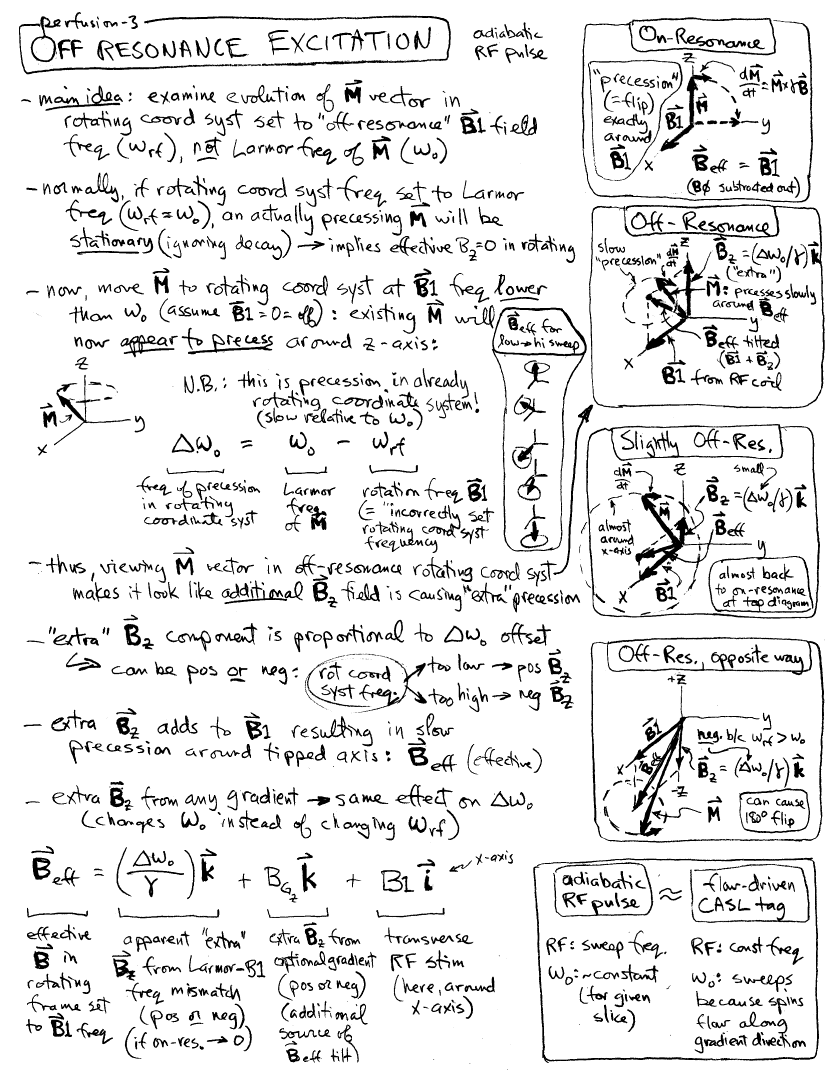

  • Off-Resonance RF Excitation

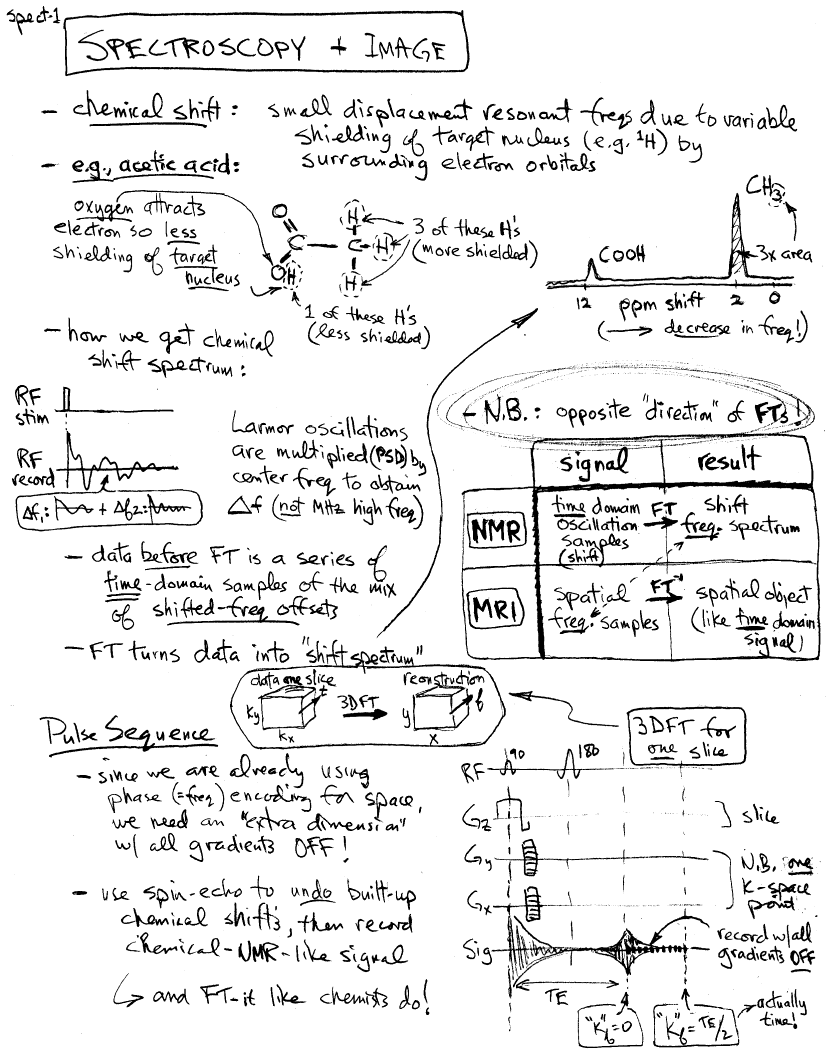

  • Combining Spectroscopy with Imaging

    Week of Nov 19 (Mon-only) — Block Design, Phase-Encoded Design

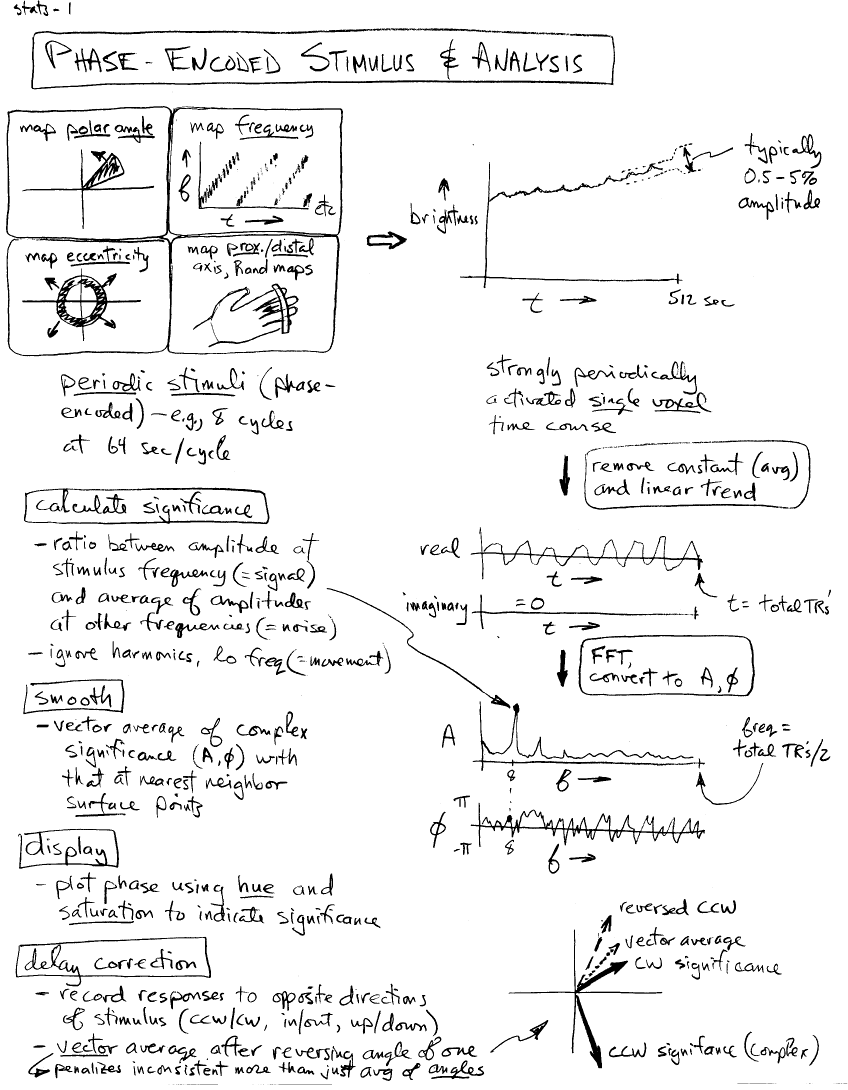

  • Phase-Encoded Stimulus and Mapping

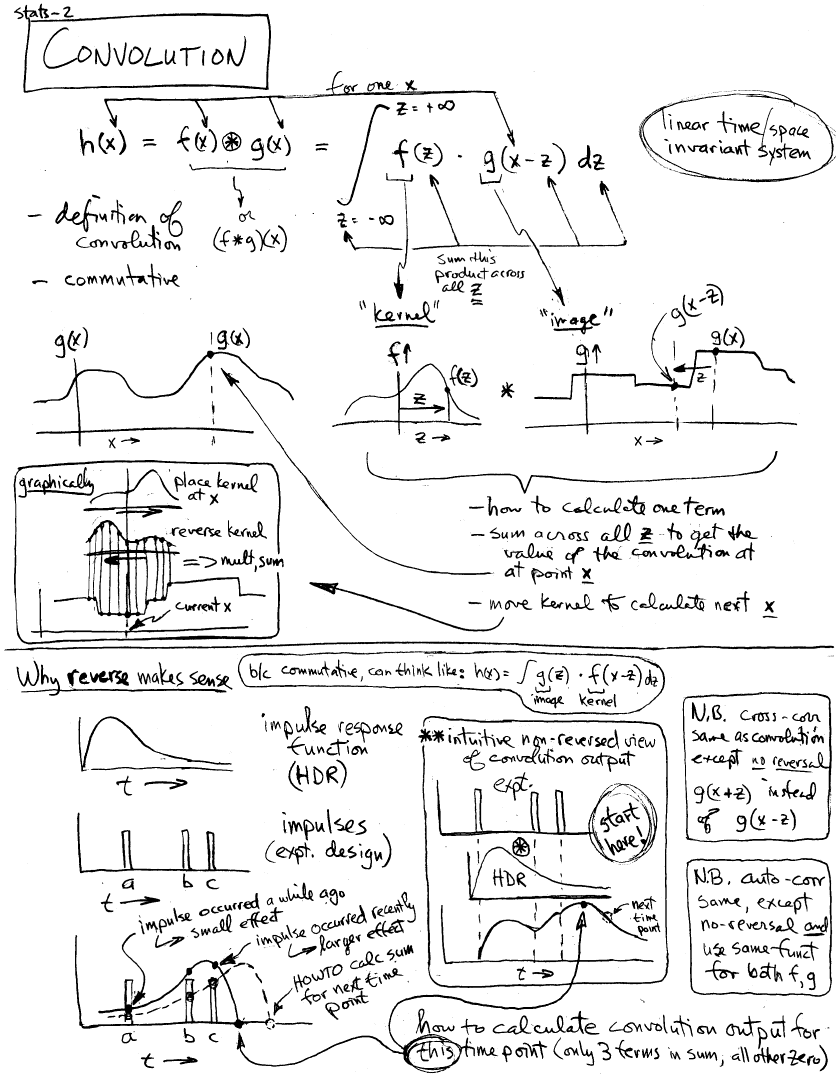

  • Convolution

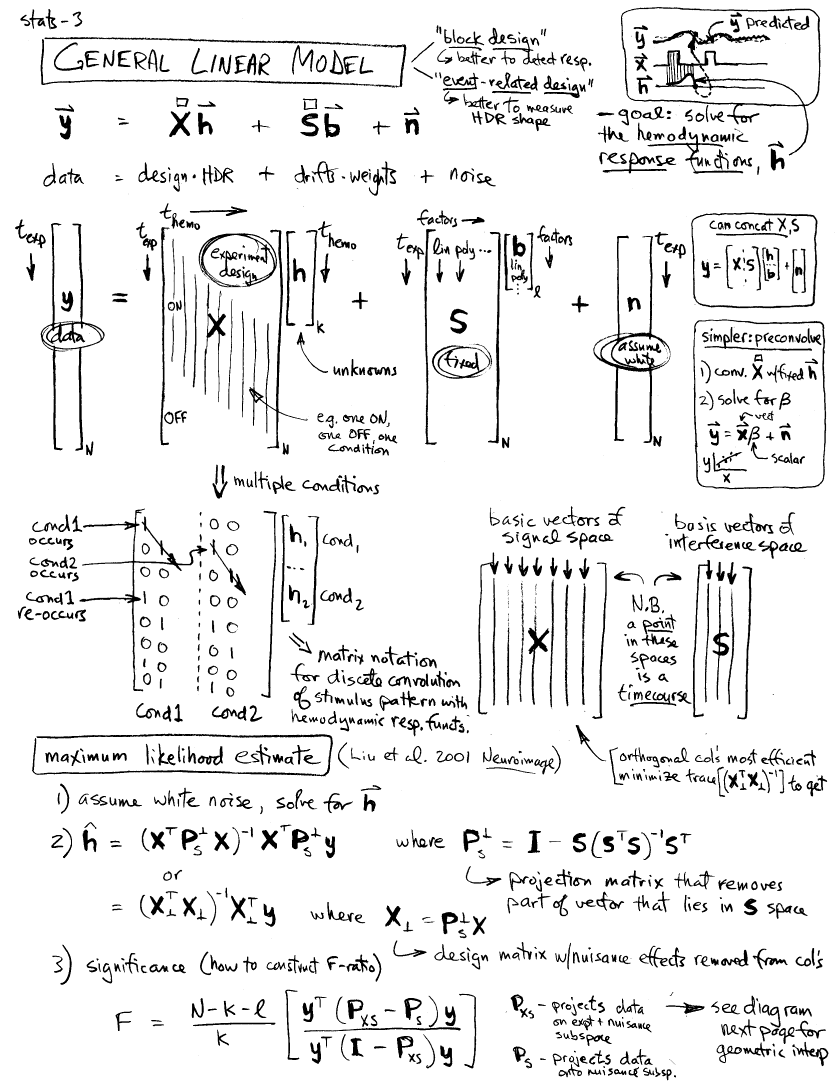

  • General Linear Model and Solution

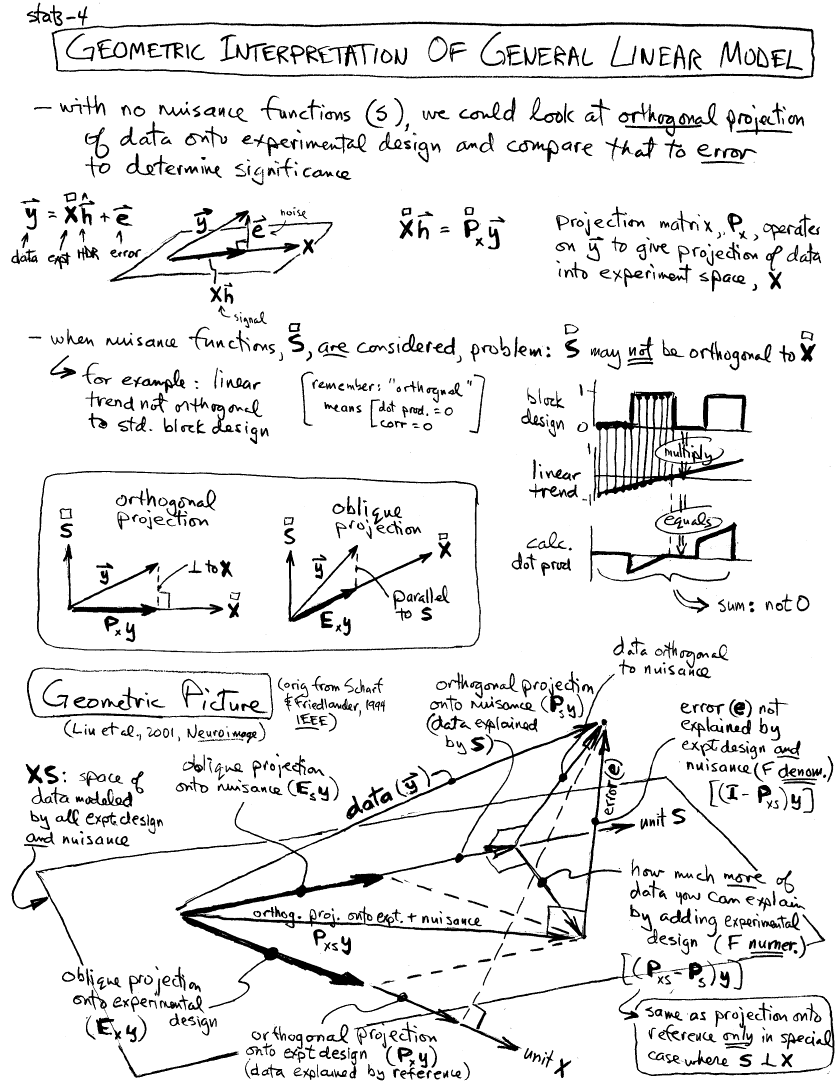

  • General Linear Model — Geometric Picture
  • Cluster Correction — 3D and Surface-Based
  • [no class Wed/Fri, Nov 21/23]

    Week of Nov 26 (Mon/Wed/Fri) — Cortical Surface Based methods
  • Normalize, Strip Skull

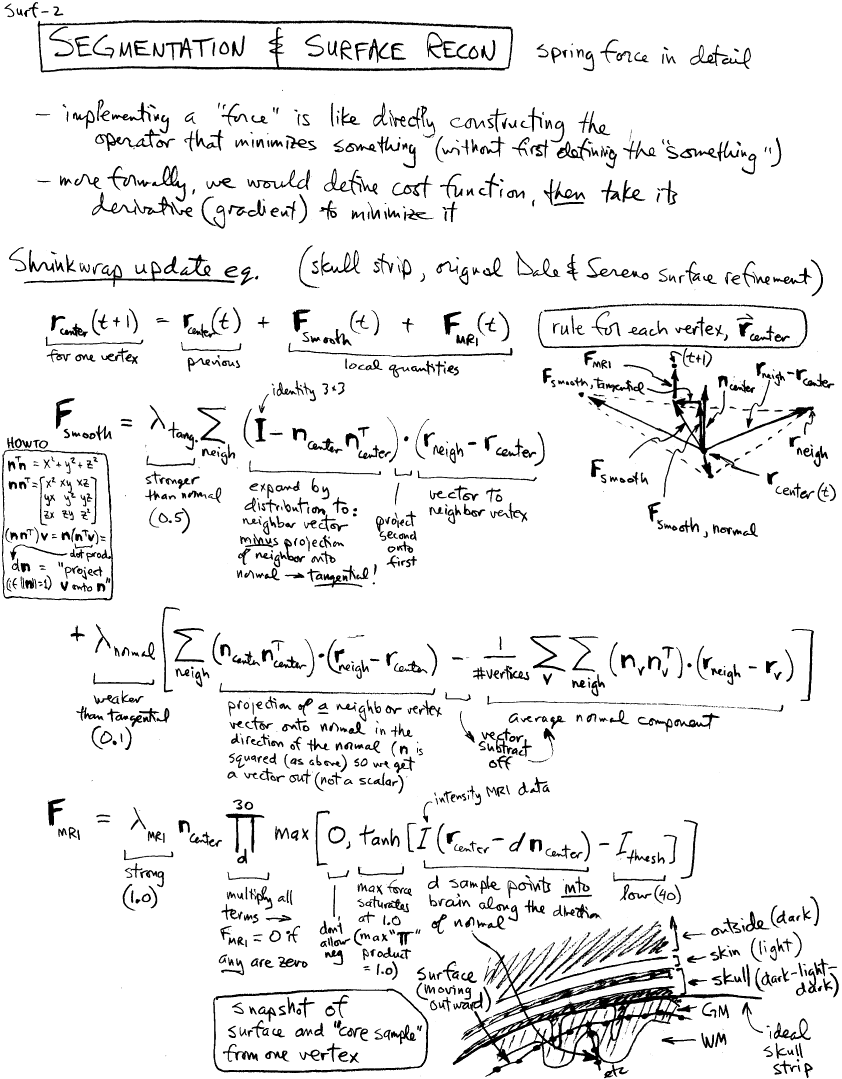

  • Spring Force in Detail
  • Non-isotropic Filter, Region-Growing

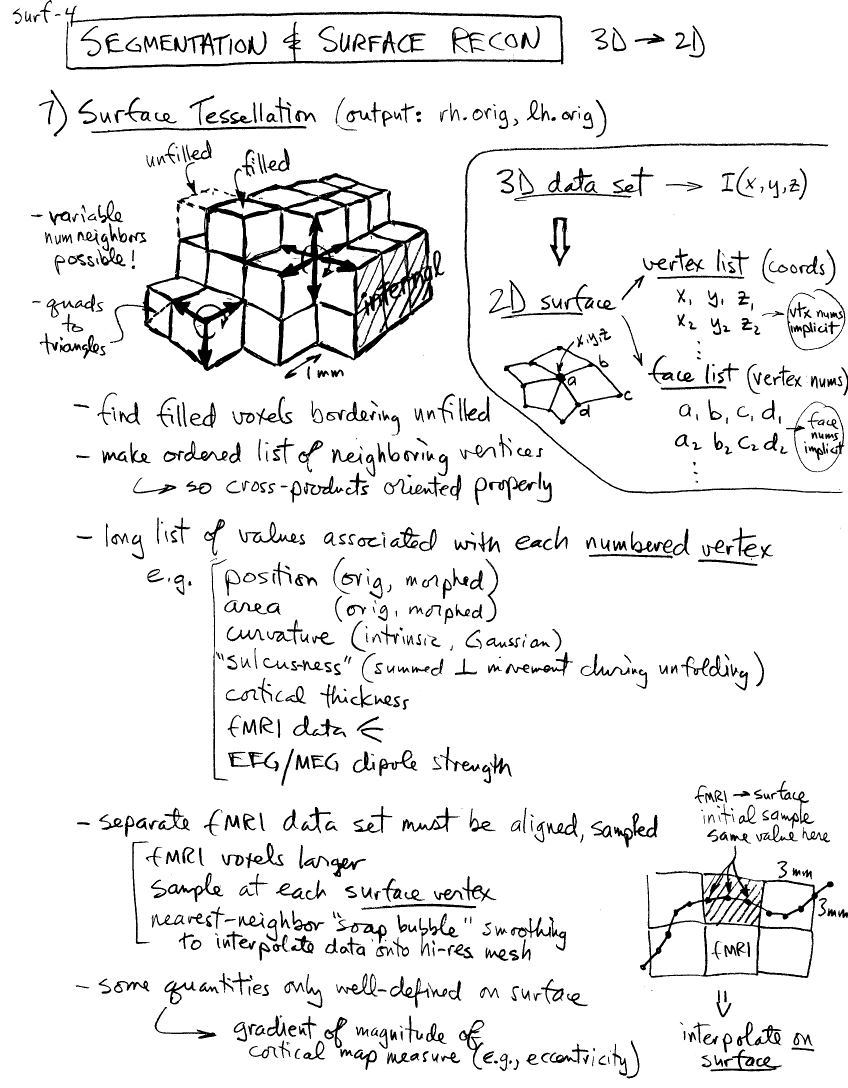

  • Tessellation: 3D -> 2D

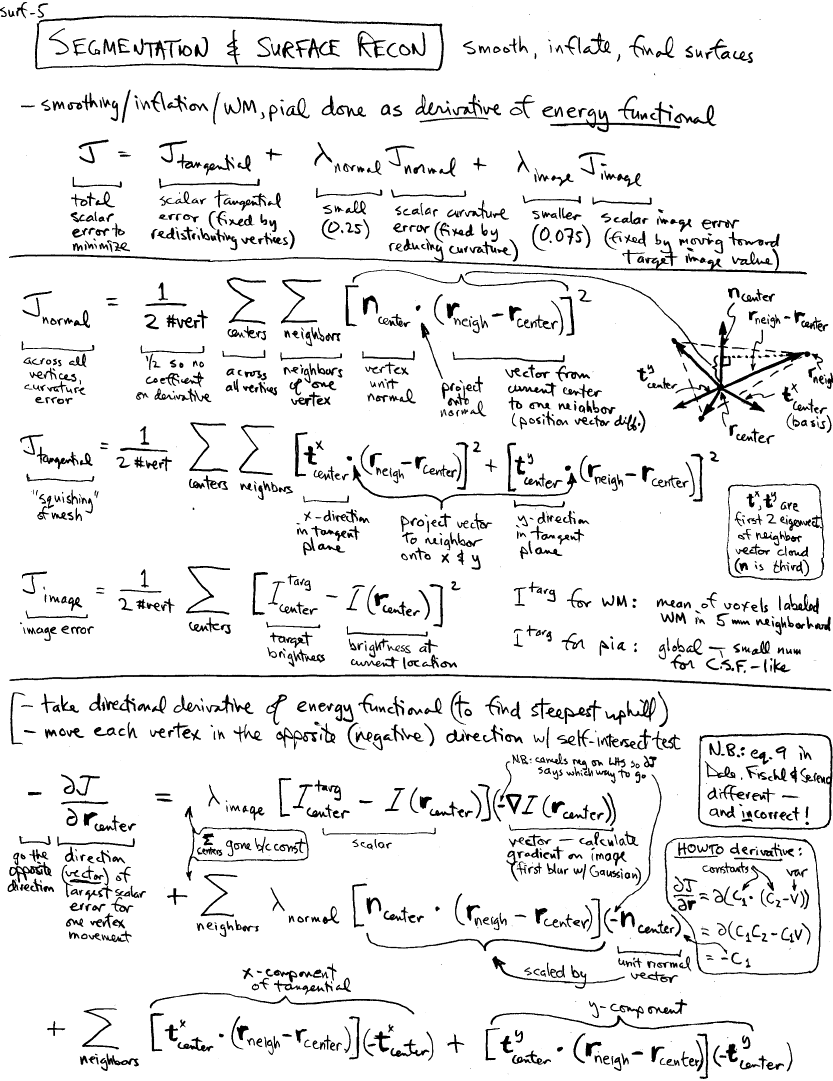

  • Energy Functional for Smooth/Inflate/Final
  • Cortical Unfolding and Flattening
  • Automatic Topology Repair

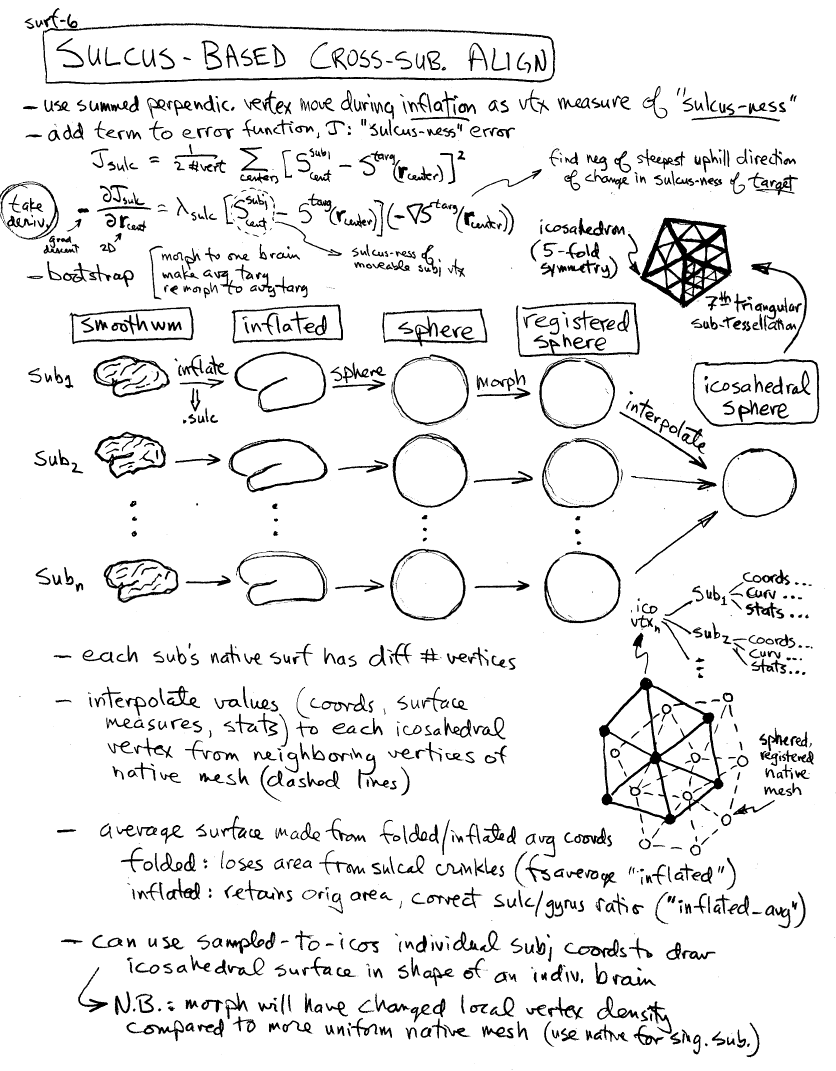

  • Sulcus-Based Alignment
  • Cortical Thickness Measurement
  • Mapping Cortical Visual Areas
  • 2nd Take-Home Due

    Week of Dec 03 (Mon/Wed/Fri) — Source of EEG/MEG
  • Source of EEG/MEG (rough draft)

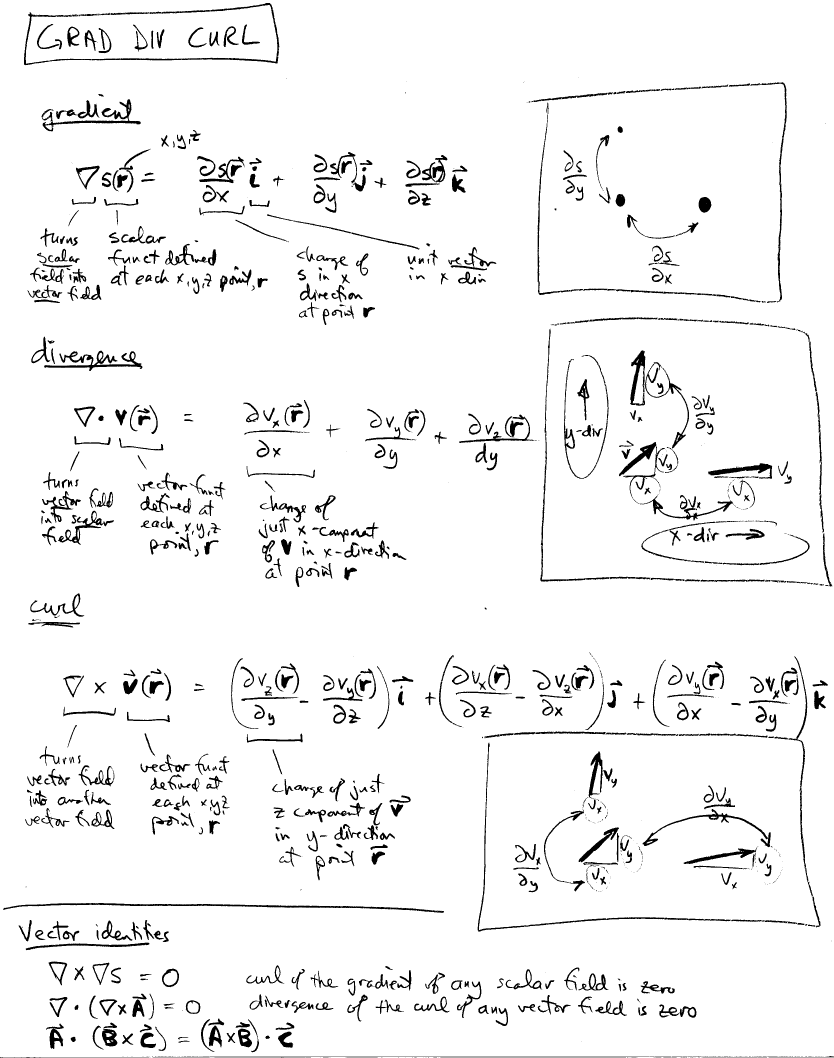

  • Grad, Div, Curl

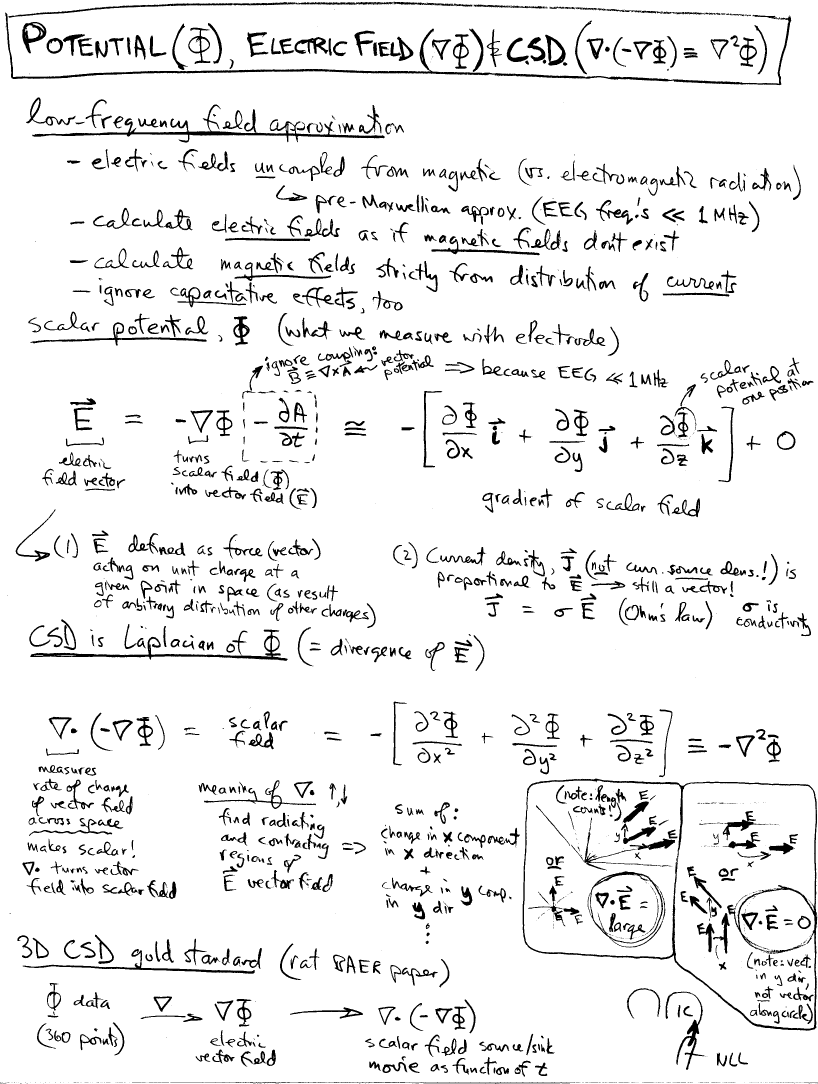

  • 1D/2D/3D Current Source Density

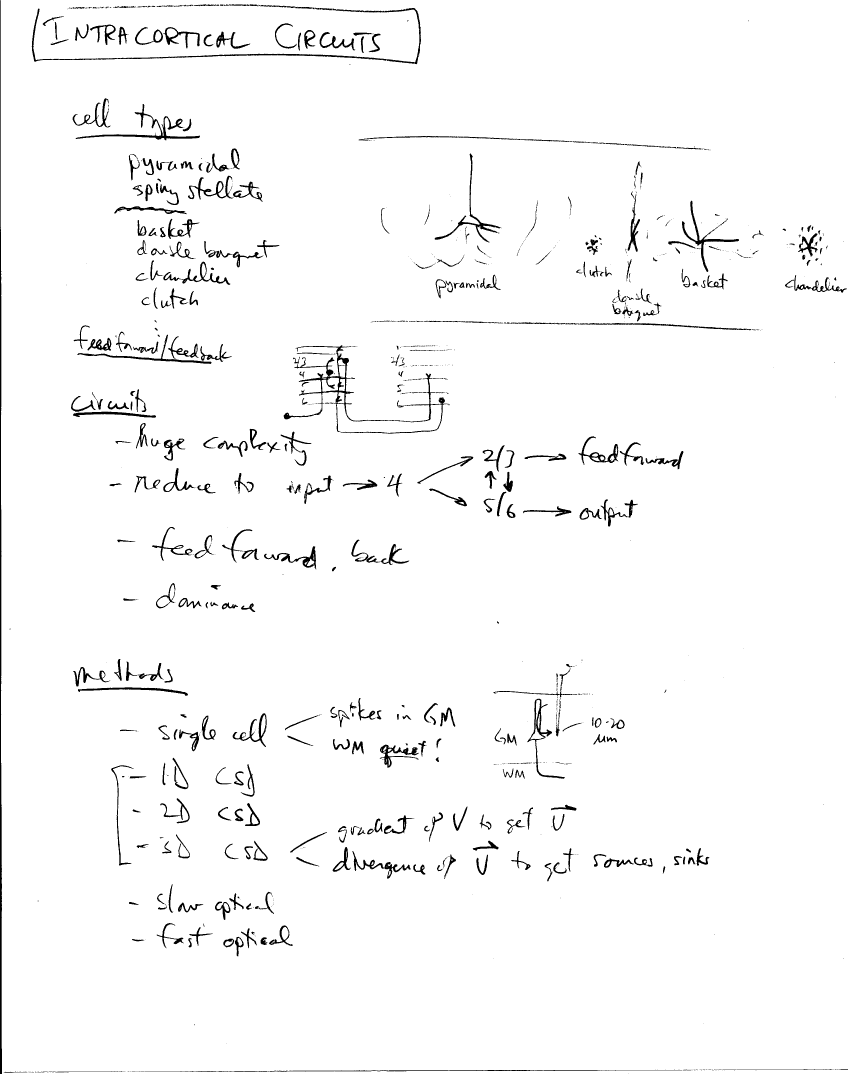

  • Intracortical Circuits (rough draft)

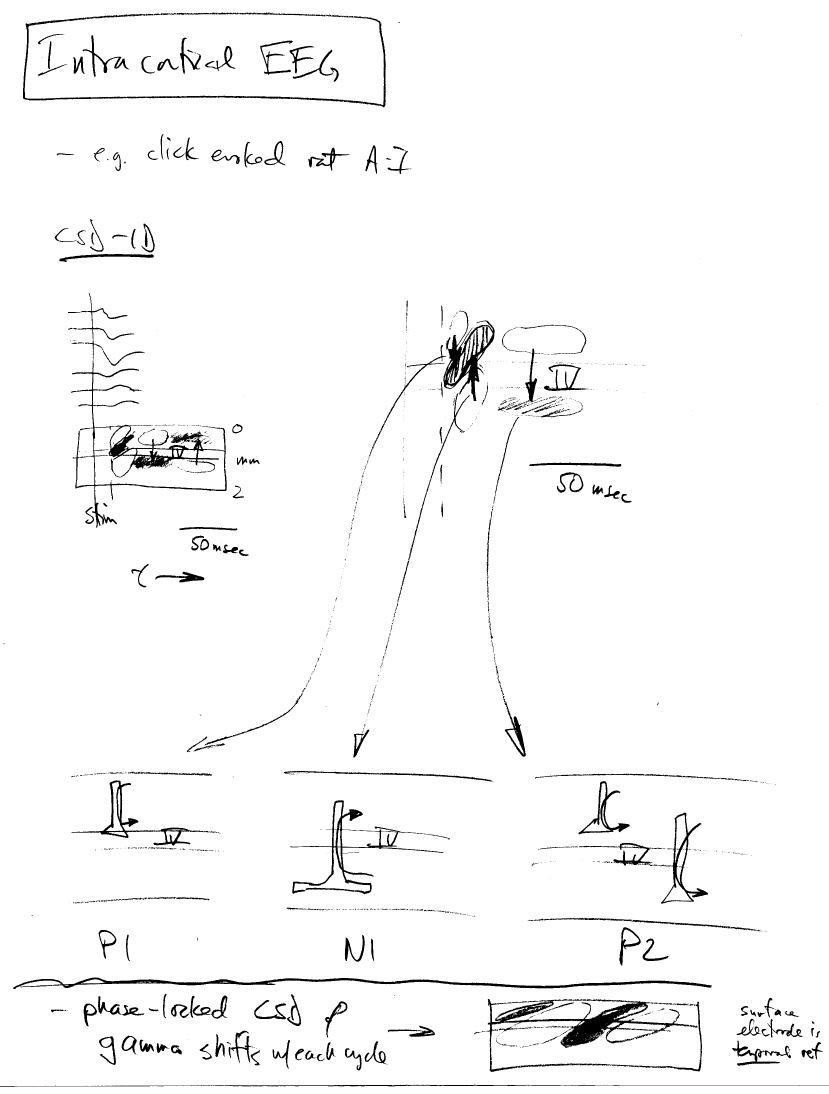

  • Intracortical Basis of EEG (rough draft)

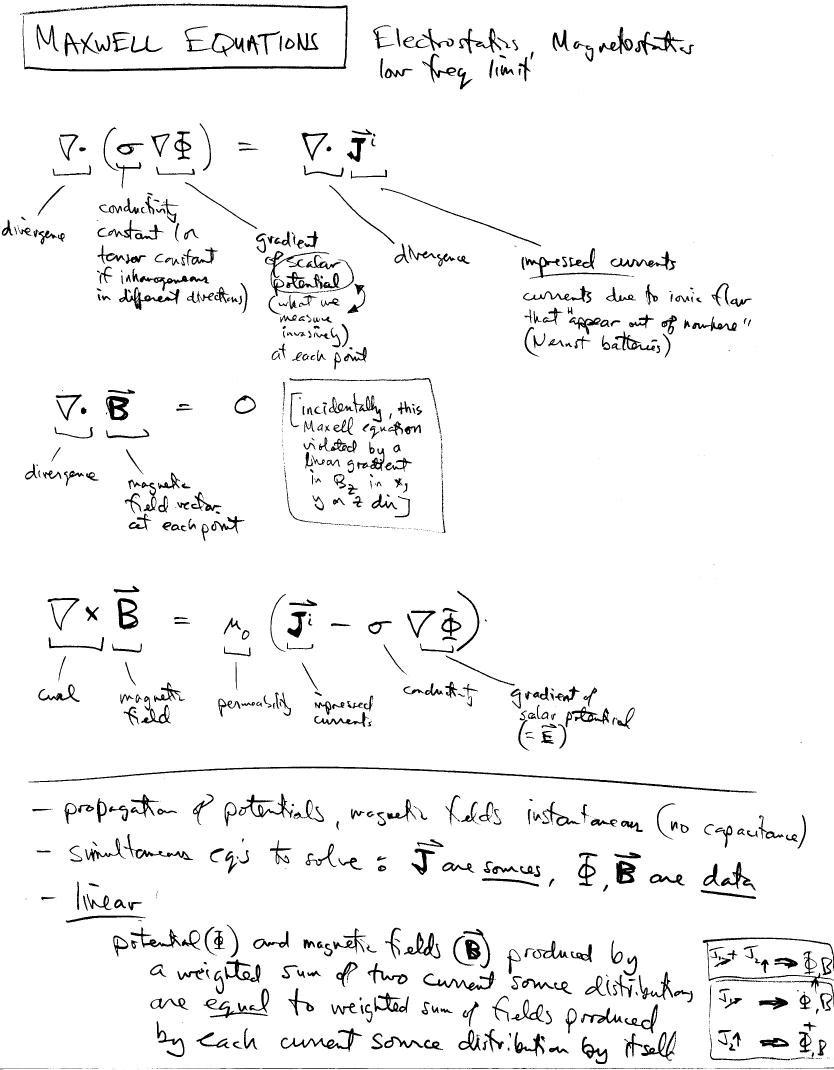

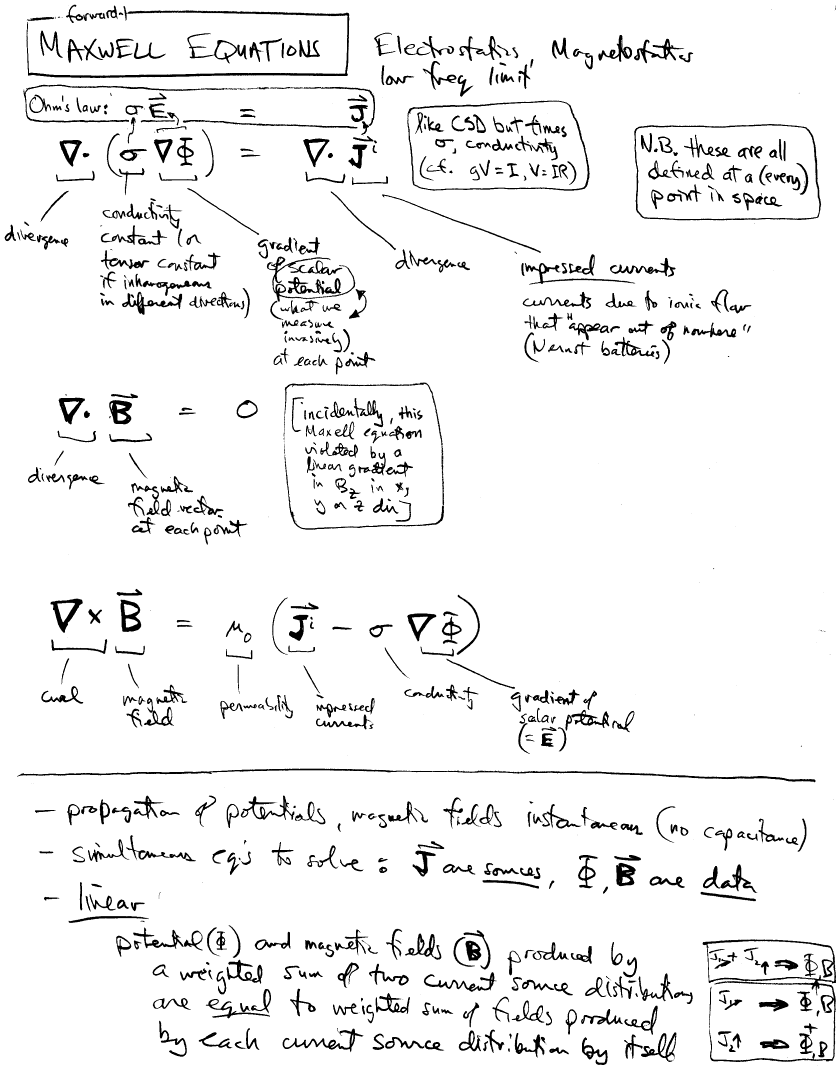

  • Maxwell Equations — Low Frequency Limit

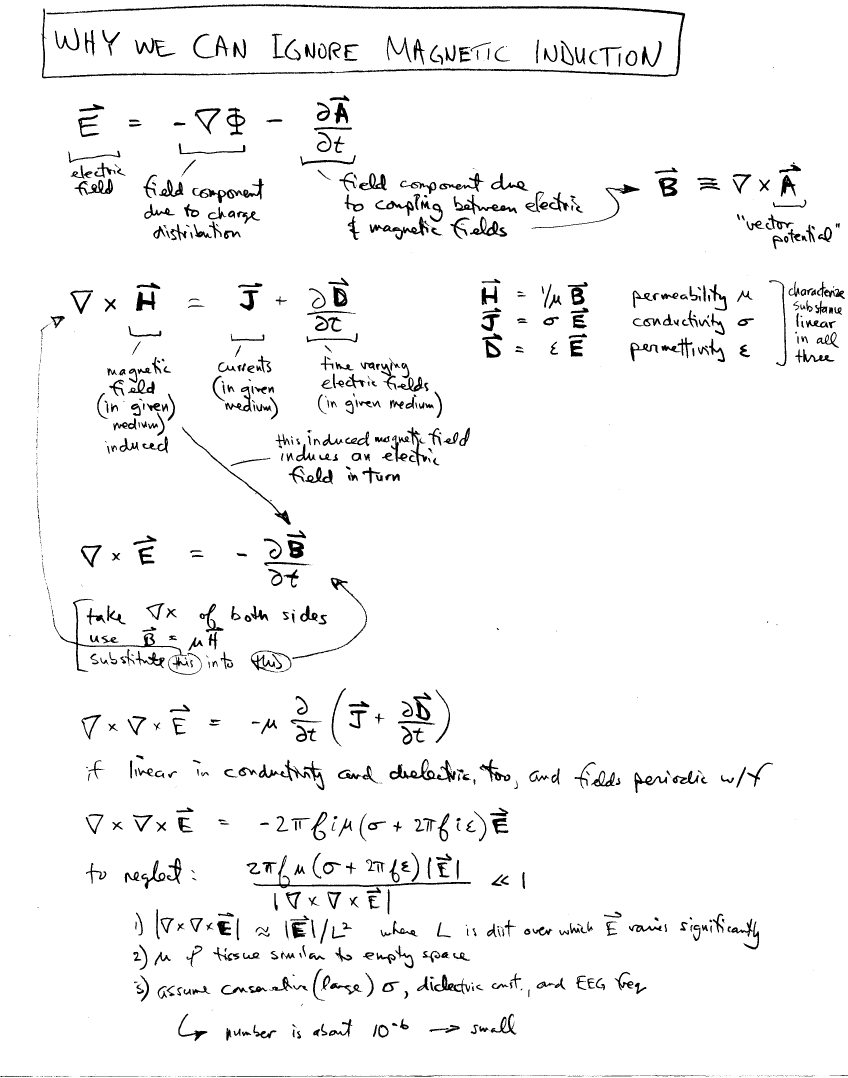

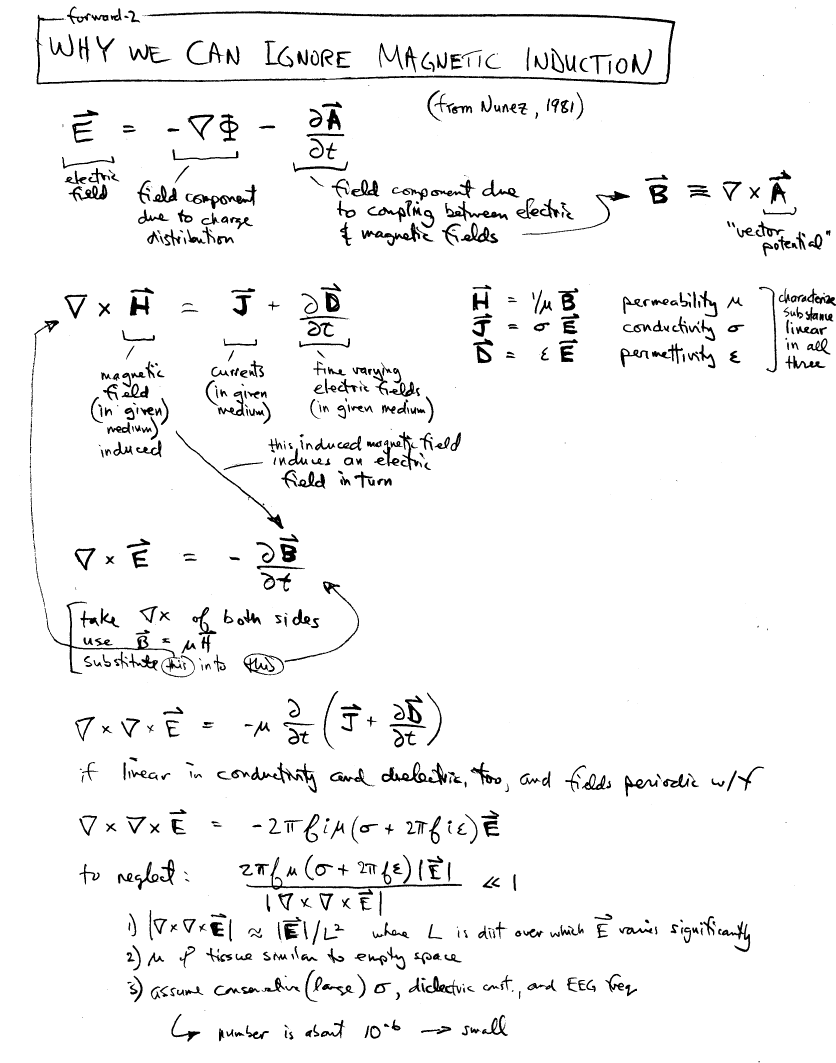

  • Why We Can Ignore Magnetic Induction

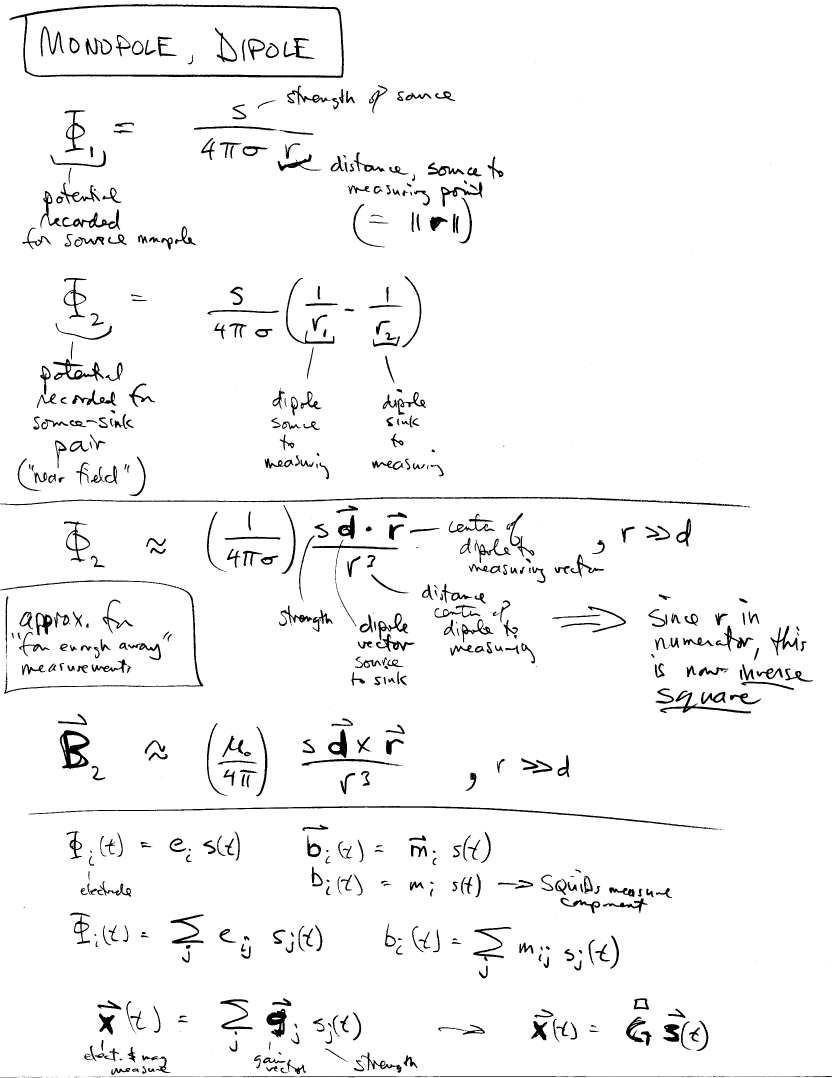

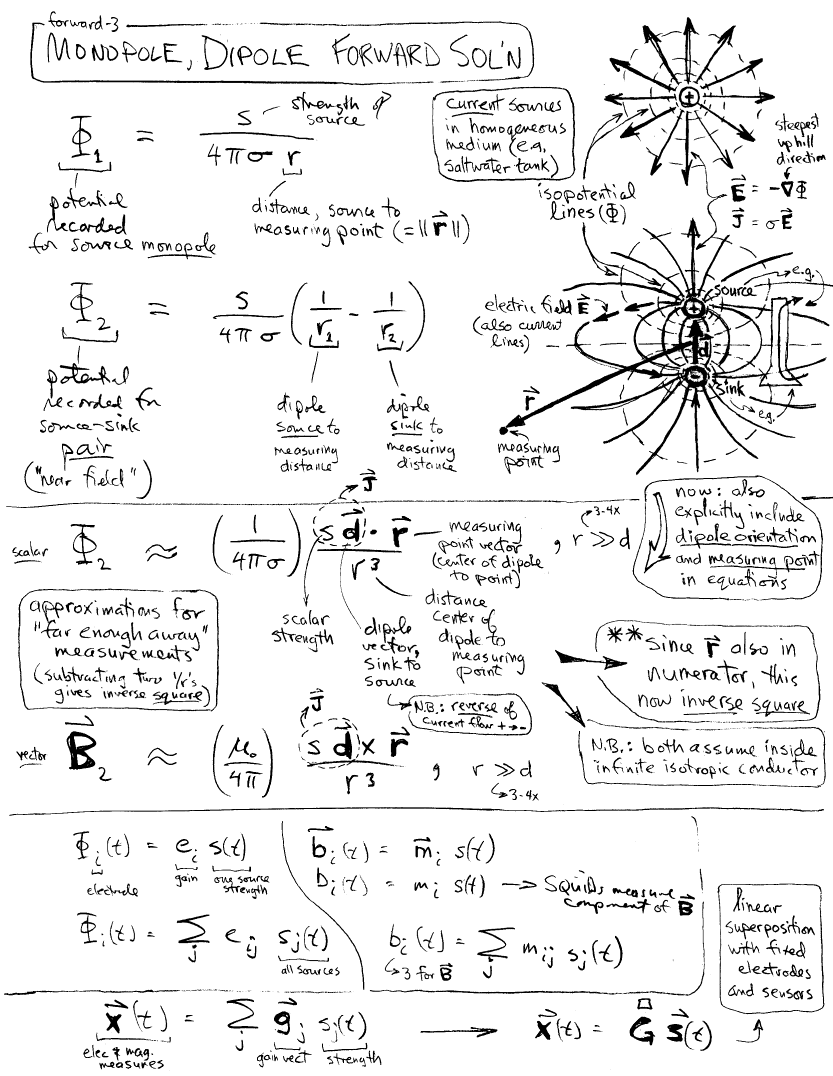

  • Monopole, Dipole (rough draft)

    Week of Dec 10 (Mon/Wed) — Neuroimaging EEG/MEG
  • Forward Solution — Analytic, Boundary Element (incomplete)
  • Matrix Formulation of the Linear Forward Solution

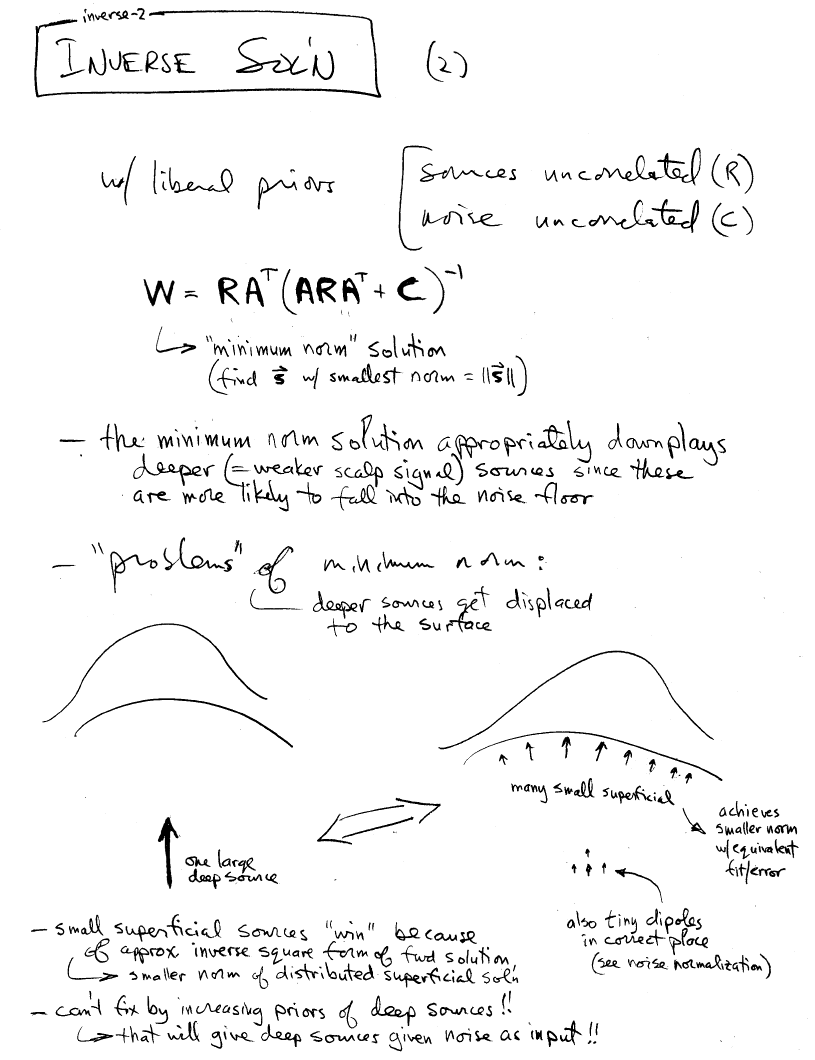

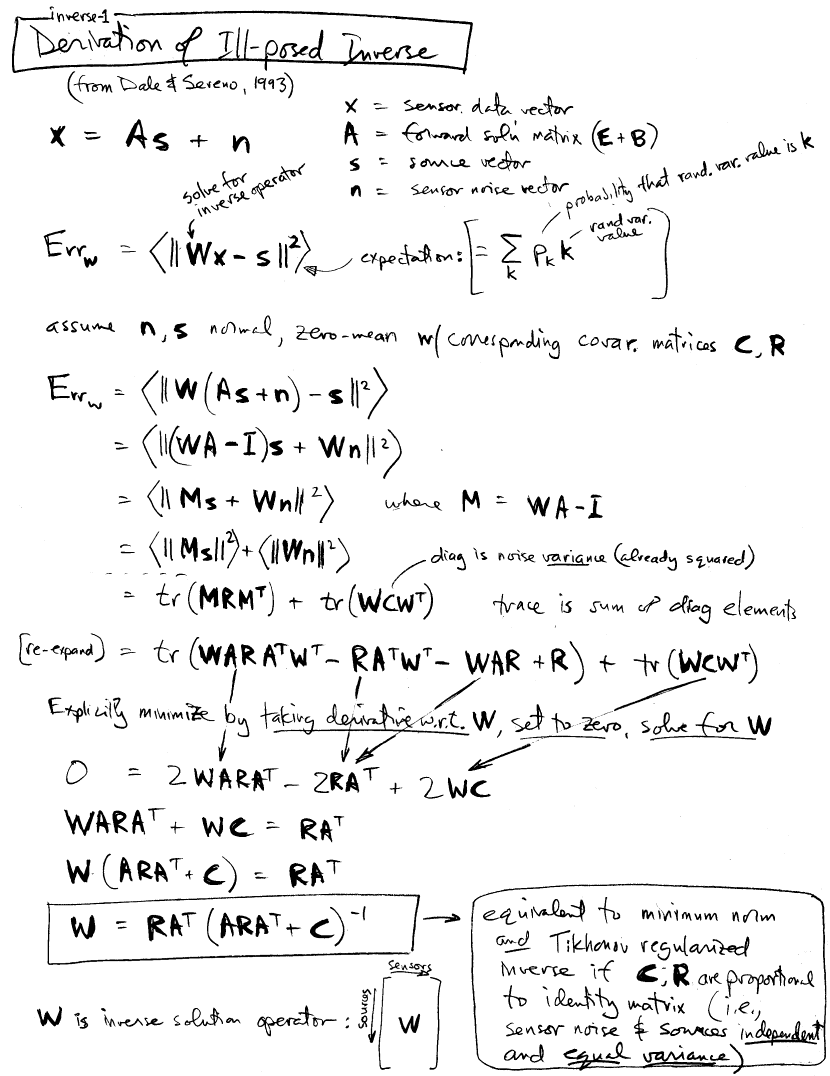

  • Derivation of Ill-Posed Minimum Norm Linear Inverse

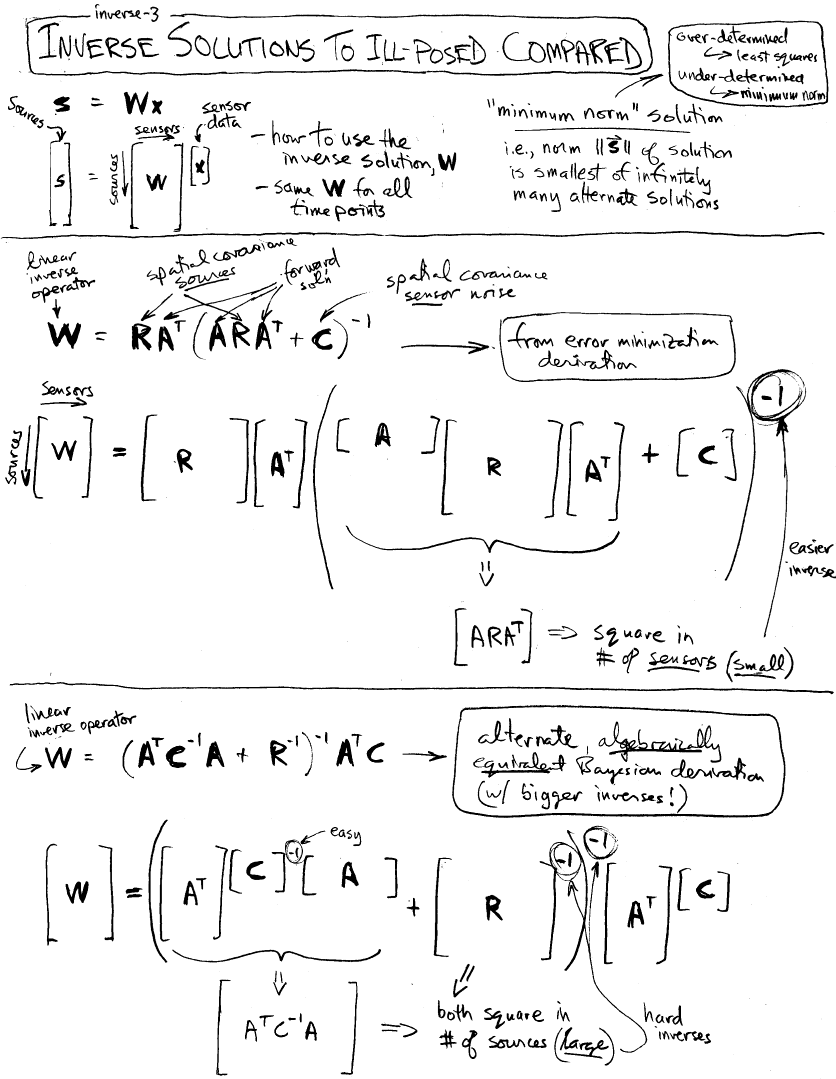

  • Two Equivalent Formulations — One Is Easier to Compute

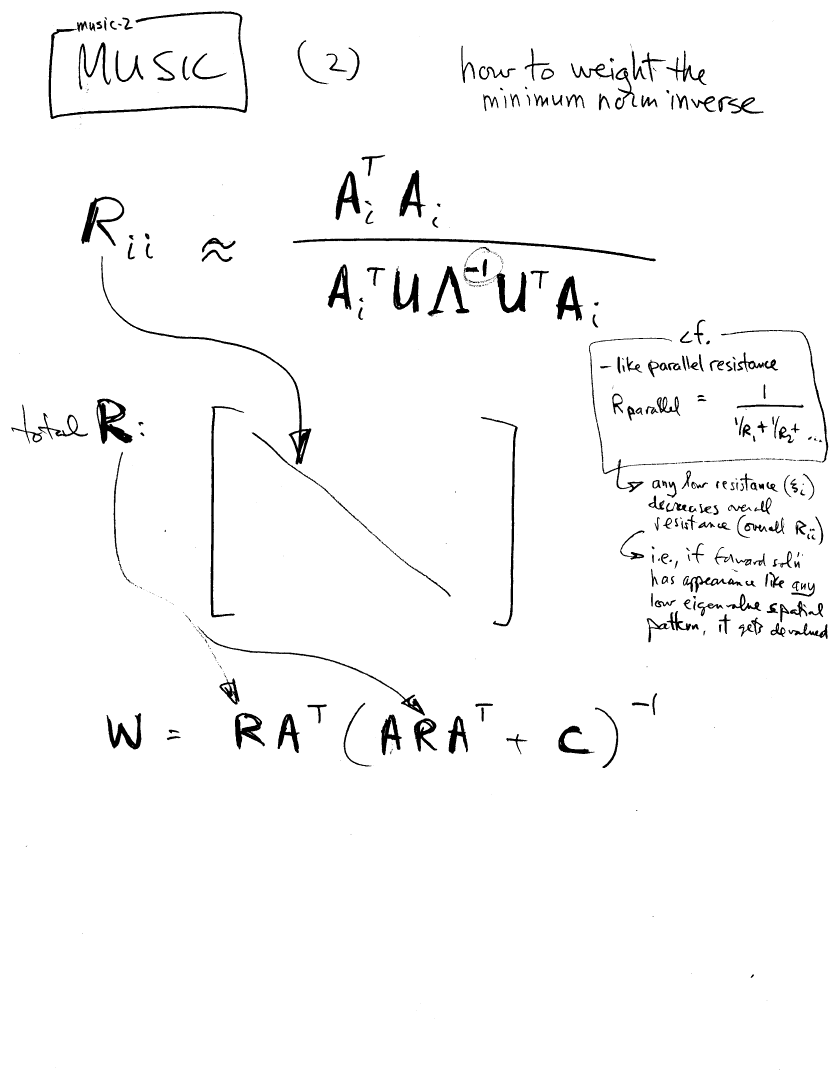

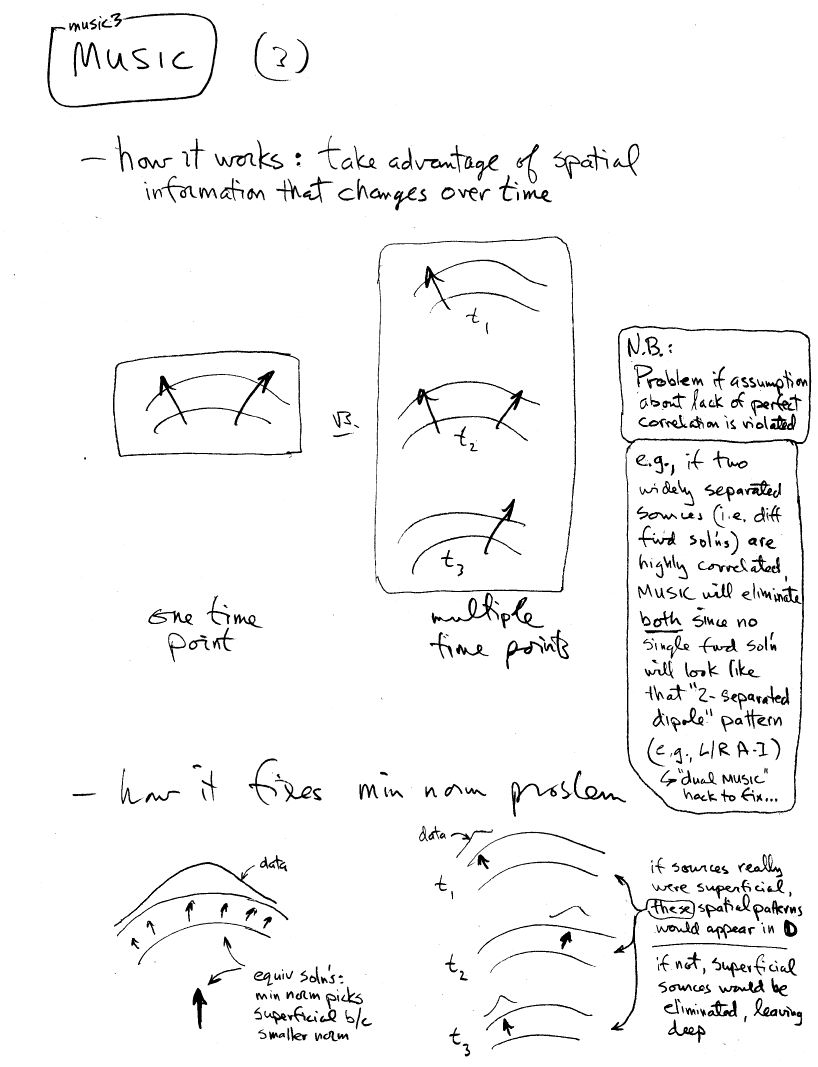

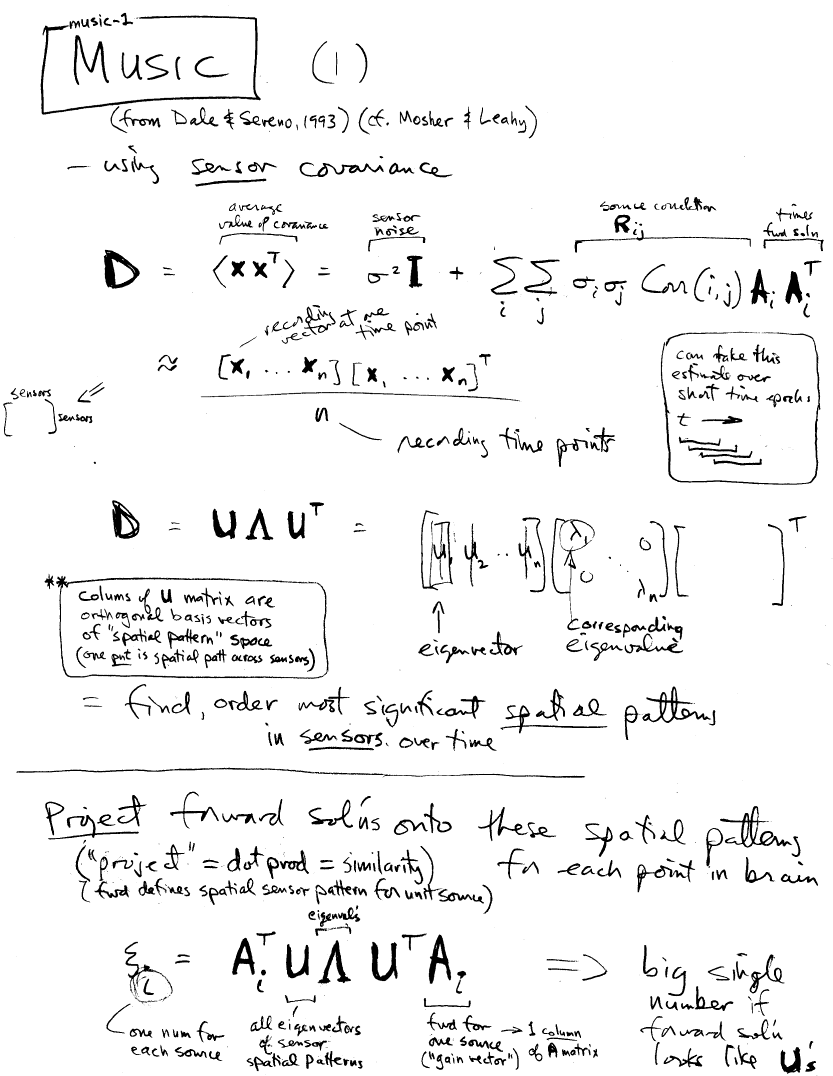

  • Using Spatiotemporal Covariance of Sensors (MUSIC)
  • Noise-Sensitivity Normalization of Mininum Norm (rough draft)

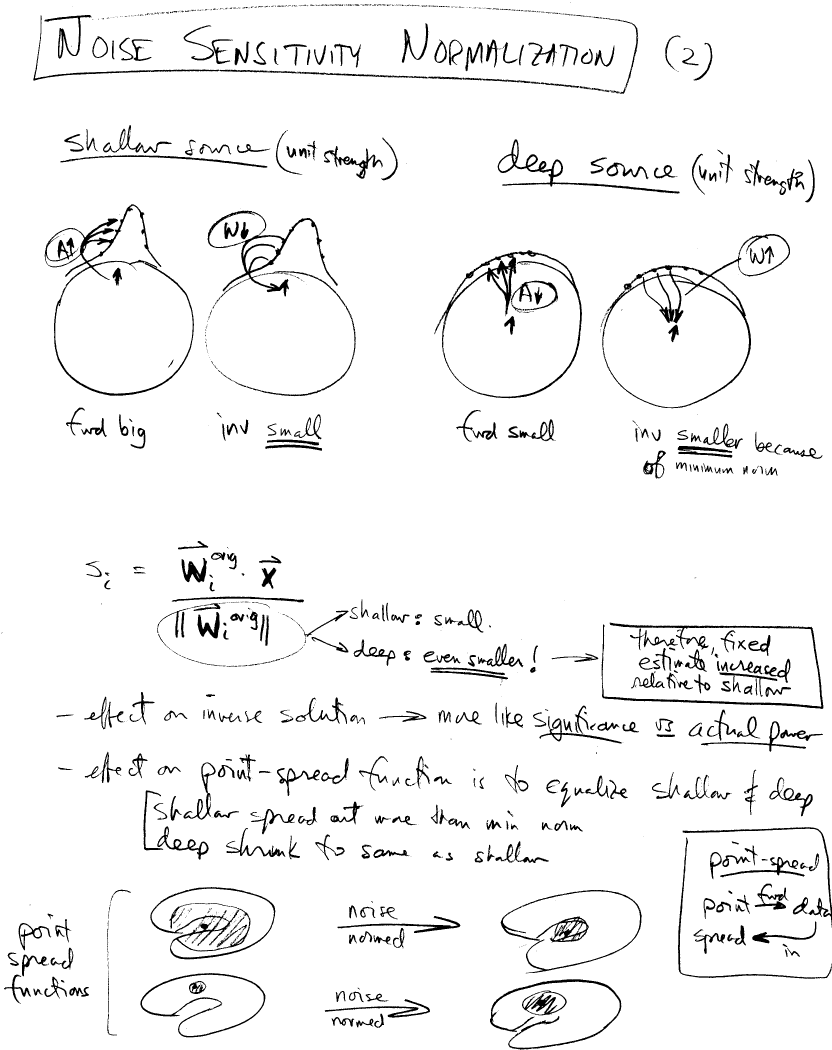

  • Noise-Sensitivity Normalization — Intuition

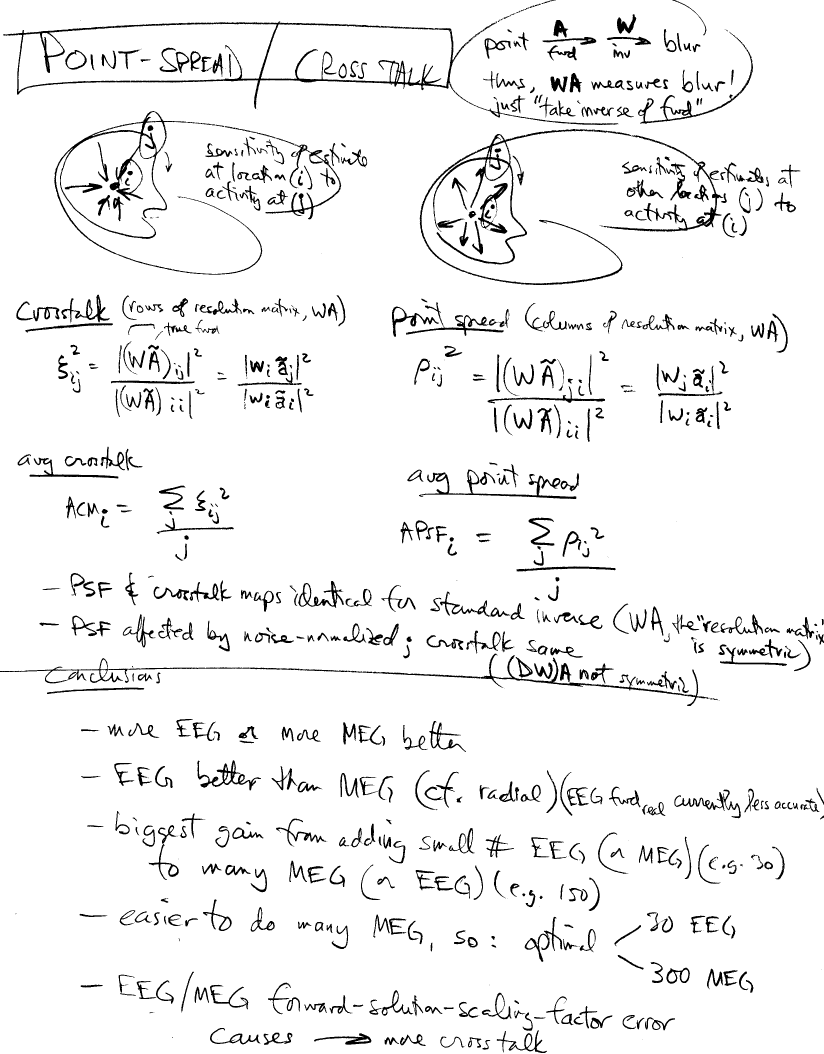

  • Point-Spread/Crosstalk, Conclusions

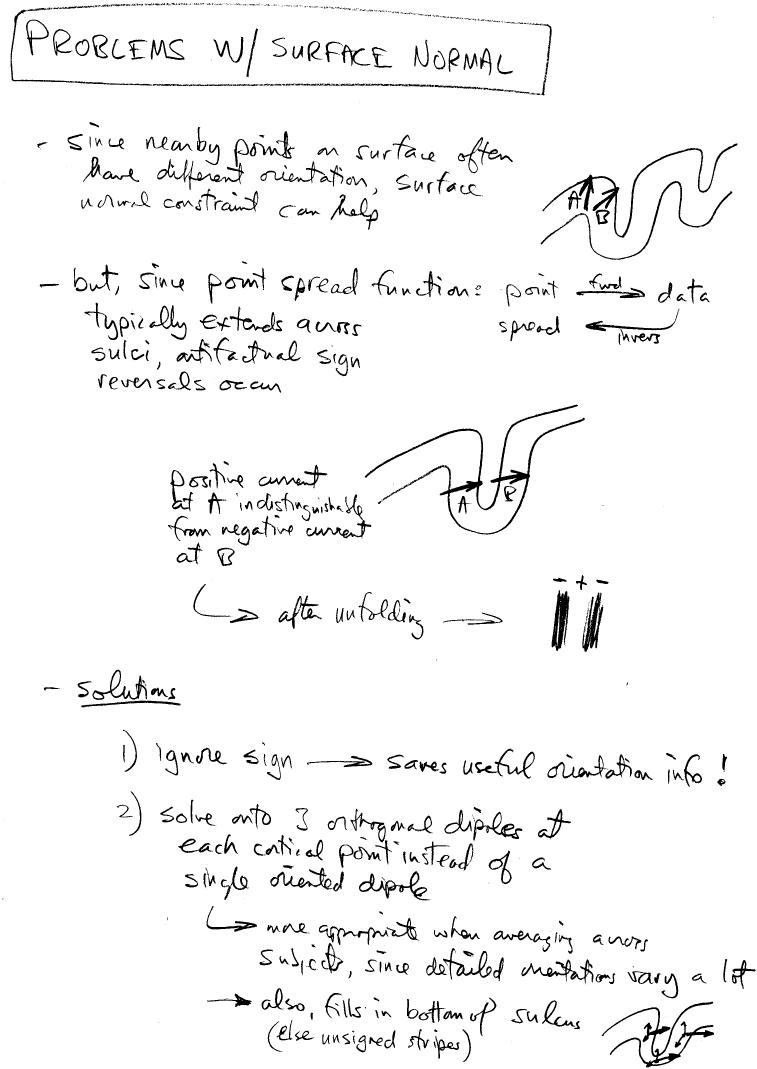

  • Surface-Normal Constraint and its Problems
  • Sensor Covariance: Calculate Weights
  • Sensor Covariance: Insert Weights into Inverse
  • Sensor Covariance: How it Helps
  • fMRI-weighted Inverse Solutions
  • Non-linear Fitting of Moveable Dipoles
  • [no class Fri, Dec 14]

    Week of Dec 17 — Final Paper/Exam
    Final paper/exam due Dec 19


    last modified: Aug 21, 2018
    Scanned/video'd class notes (pdf, links above) © 2018 Martin I. Sereno
    Supported by NSF 0224321, NIH MH081990, Royal Society Wolfson
